Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

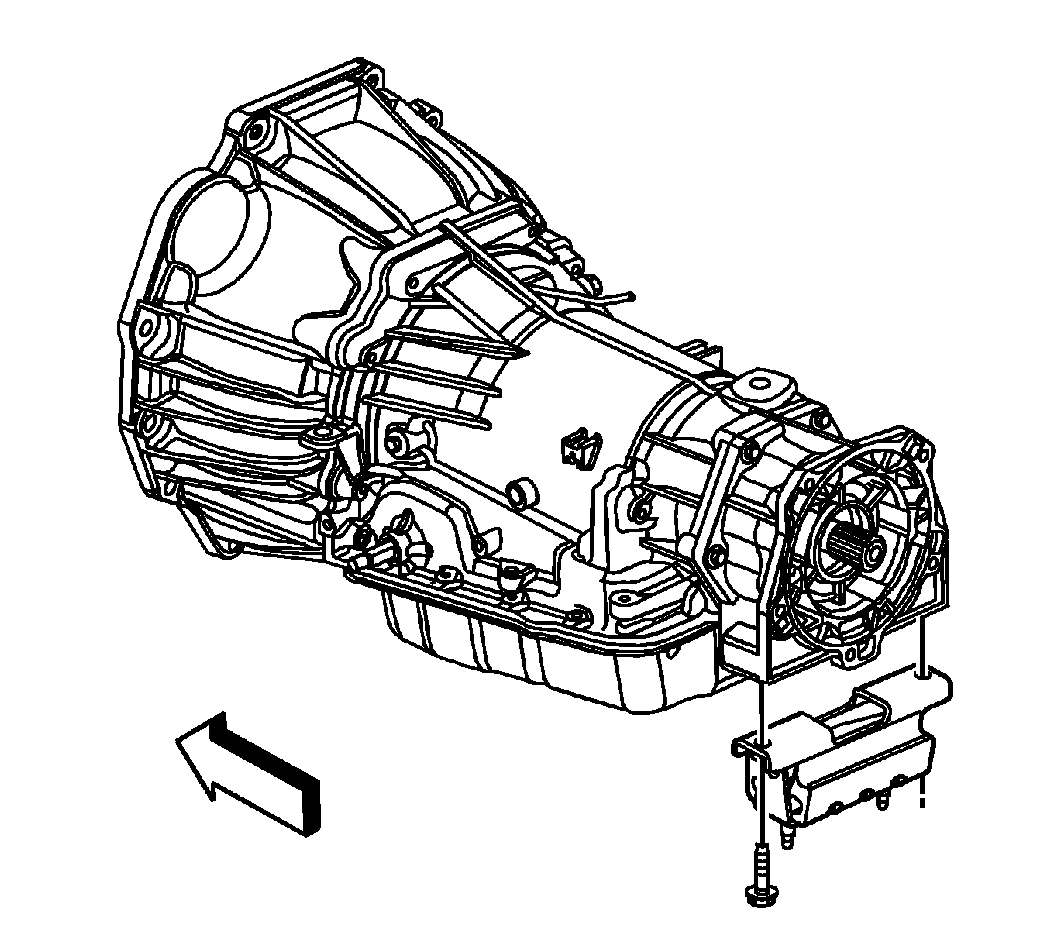

    Fig 1: View Of Transmission Mount
    GM1201366Courtesy of GENERAL MOTORS CORP.
  1. Install the transmission mount to the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the bolts.

    Tighten:  Tighten the bolts to 55 N.m (41 lb ft).

  3. Install the transmission support. Refer to Transmission Support Crossmember Replacement (2WD) or Transmission Support Crossmember Replacement (4WD) .
