Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

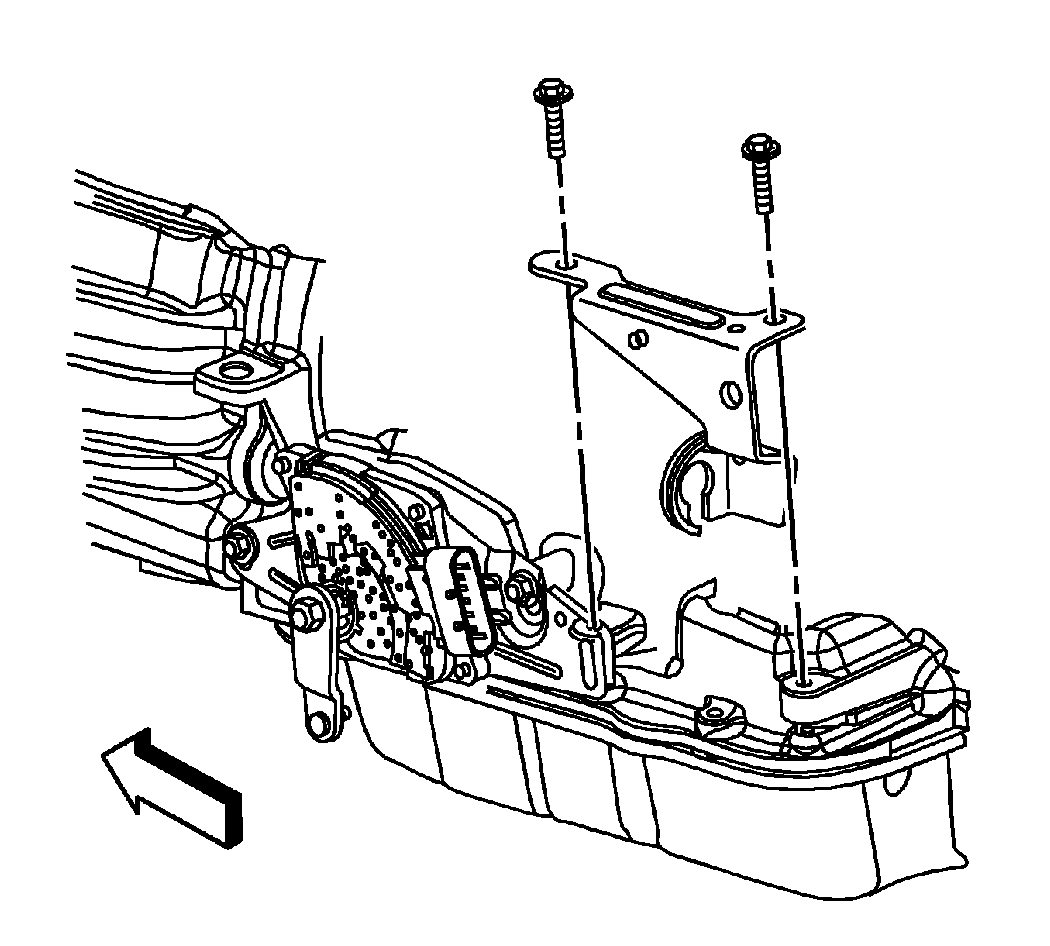

    Fig 1: View Of Transmission Range Selector Cable Bracket
    GM1302087Courtesy of GENERAL MOTORS CORP.
  1. Position the transmission range selector cable bracket to the transmission.
    2. NOTE: Refer to Fastener Notice .
  2. Install the transmission range selector cable bracket bolts.

    Tighten:  Tighten the transmission range selector cable bracket bolts to 25 N.m (18 lb ft).

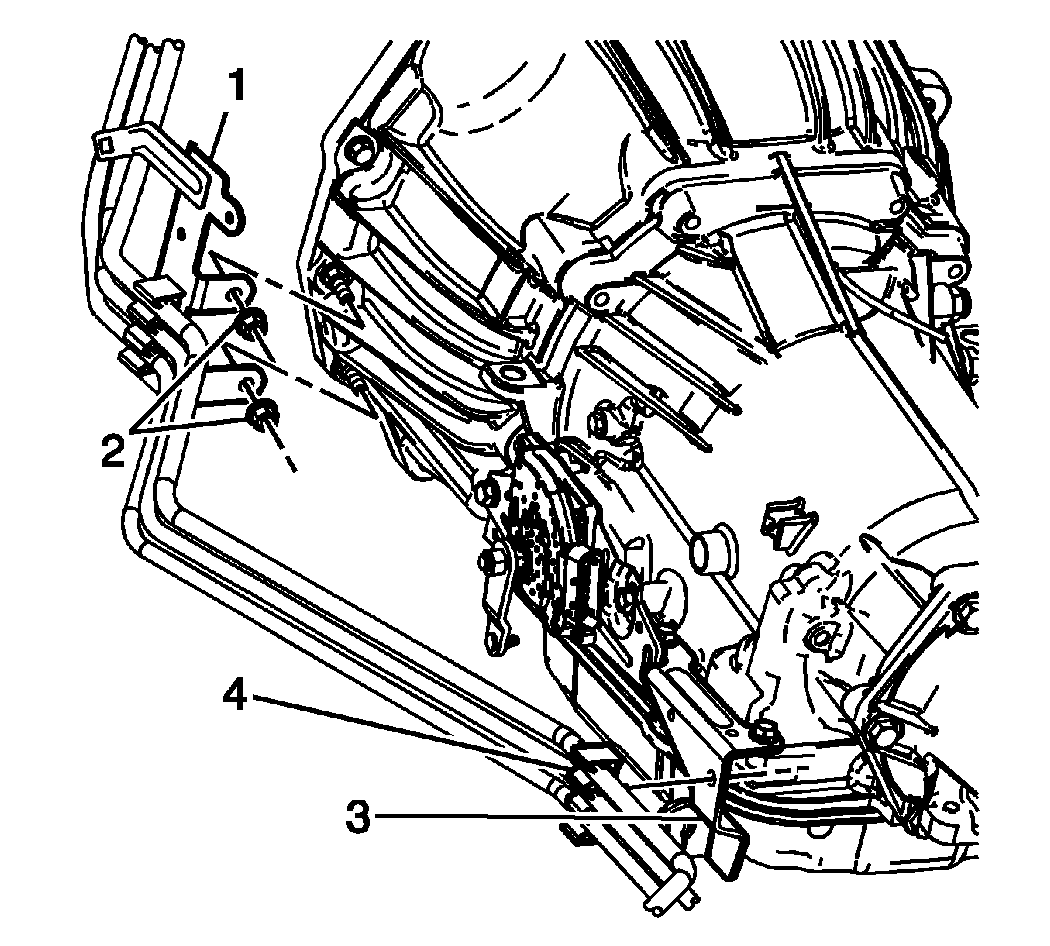

    3. Fig 2: View Of Fuel Hose/Pipe Bracket & Nuts (M30)
    GM1350750Courtesy of GENERAL MOTORS CORP.
  3. Connect the fuel hose/pipe retainer (4) to the range selector cable bracket (3).

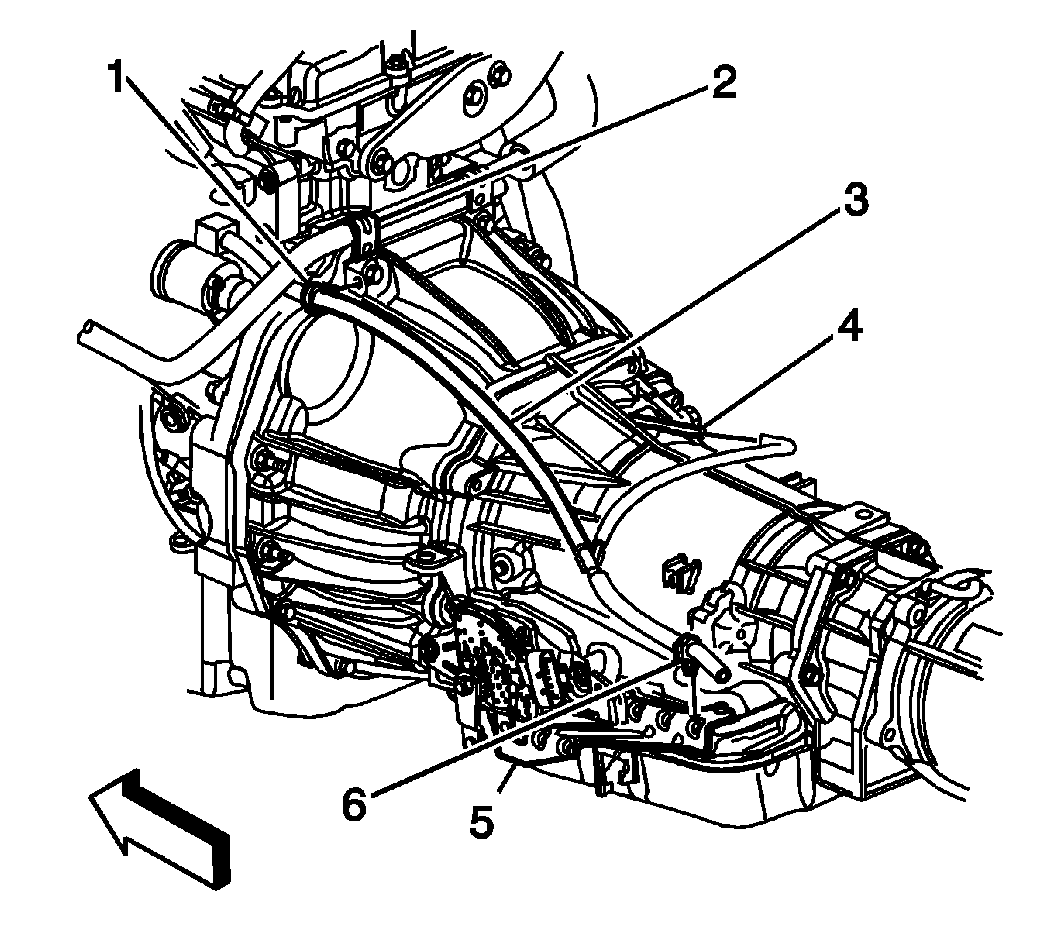

    4. Fig 3: View Of Transmission Vent Hose & Retainers
    GM1302098Courtesy of GENERAL MOTORS CORP.
  4. Connect the transmission vent hose retainer (6) to the range selector cable bracket.
    5. Fig 4: View Of Range Selector Cable & Components
    GM1302081Courtesy of GENERAL MOTORS CORP.
  5. Install the range selector cable (3) to the bracket (2).
  6. Install the retainer (4) to the range selector cable (3).
  7. Adjust the automatic transmission range selector cable. Refer to Range Selector Lever Cable Adjustment .
  8. Lower the vehicle.
