Input Carrier Inspection

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

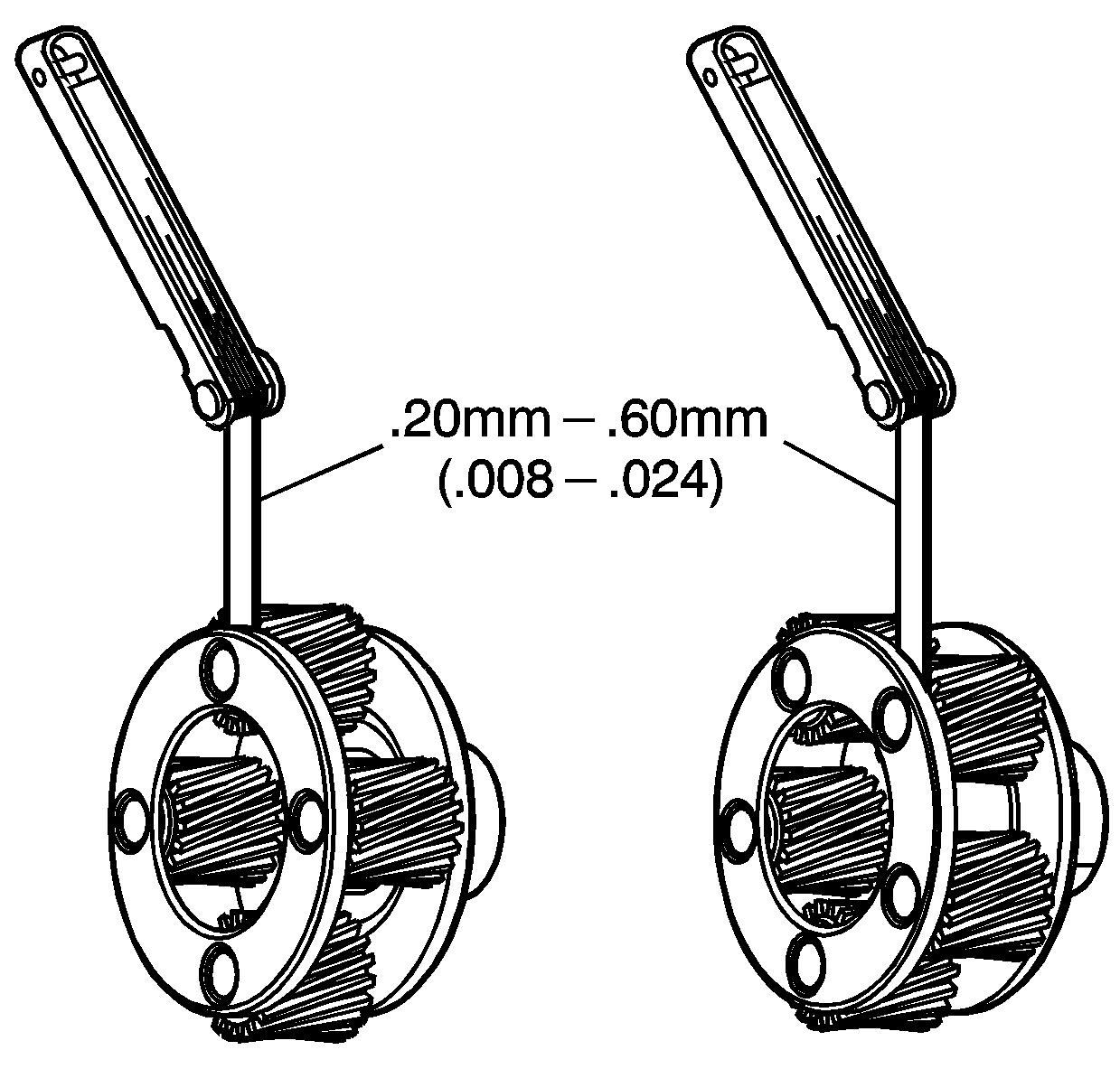

    Fig 1: Identifying Input Carrier Pinion End Play Measurements
    GM735074Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Check end play on each pinion. Clearance is the same for 4 or 5 pinion design.
  1. Check the input carrier pinion end play. The end play must not exceed 0.61 mm (0.024 in).
  2. Inspect the input carrier for pinion gear damage, proper pin stake and keystoned pinion gears. Pinions must rotate freely.
