Starting and Charging Schematics

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

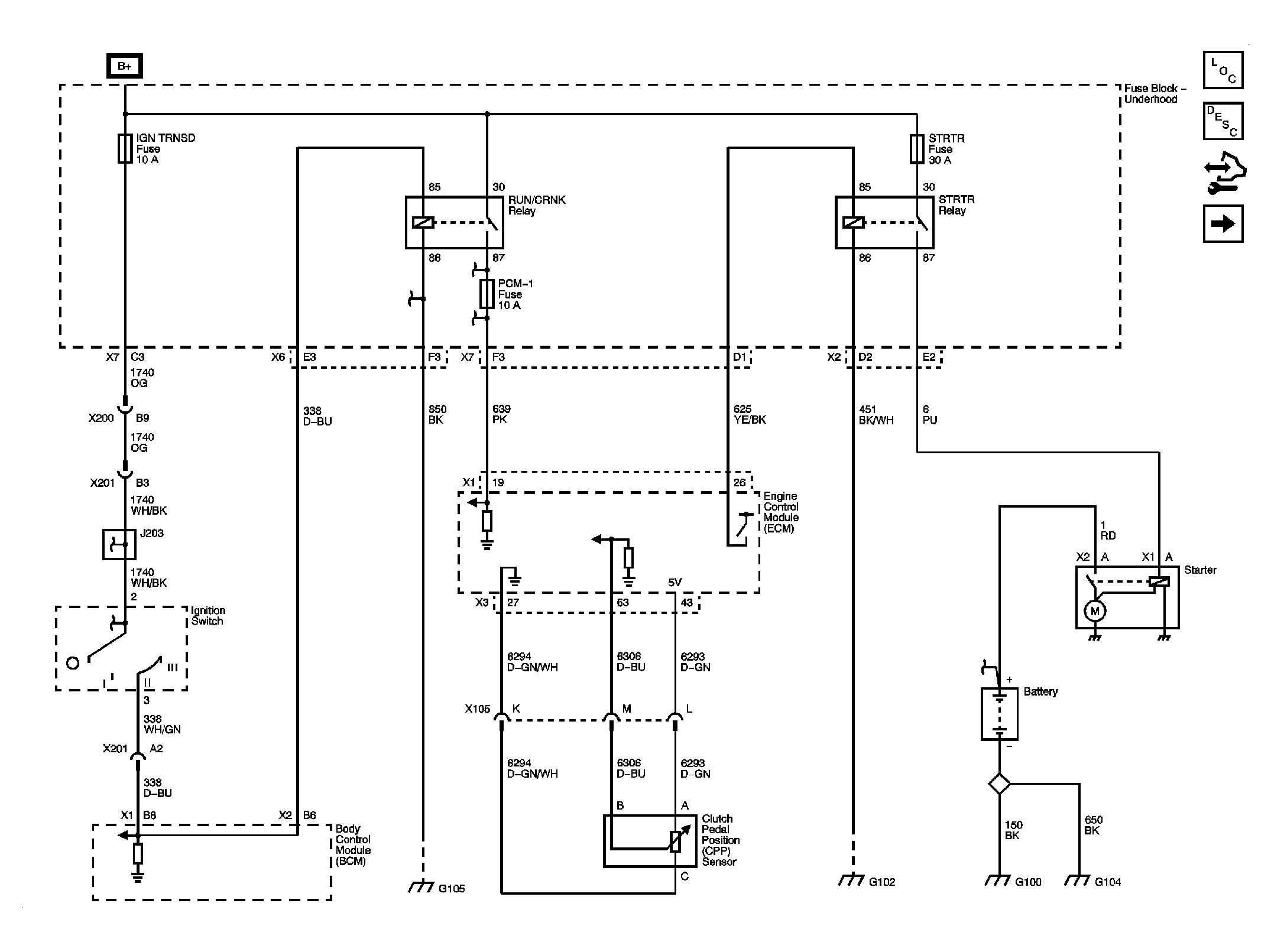

Fig 1: Starting System - MA5
GM1906966Courtesy of GENERAL MOTORS CORP.

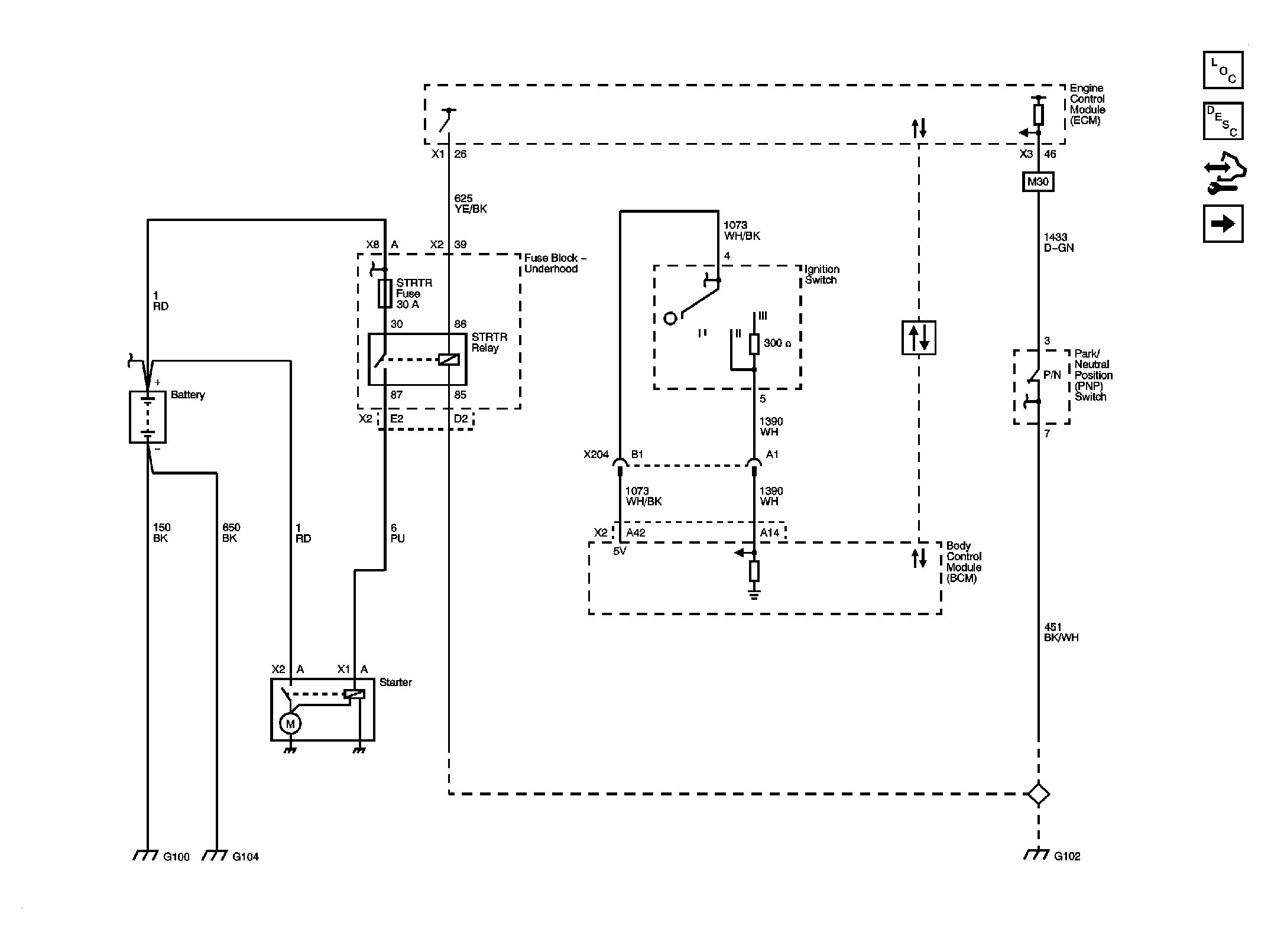

Fig 2: Starting System - M30
GM1906969Courtesy of GENERAL MOTORS CORP.

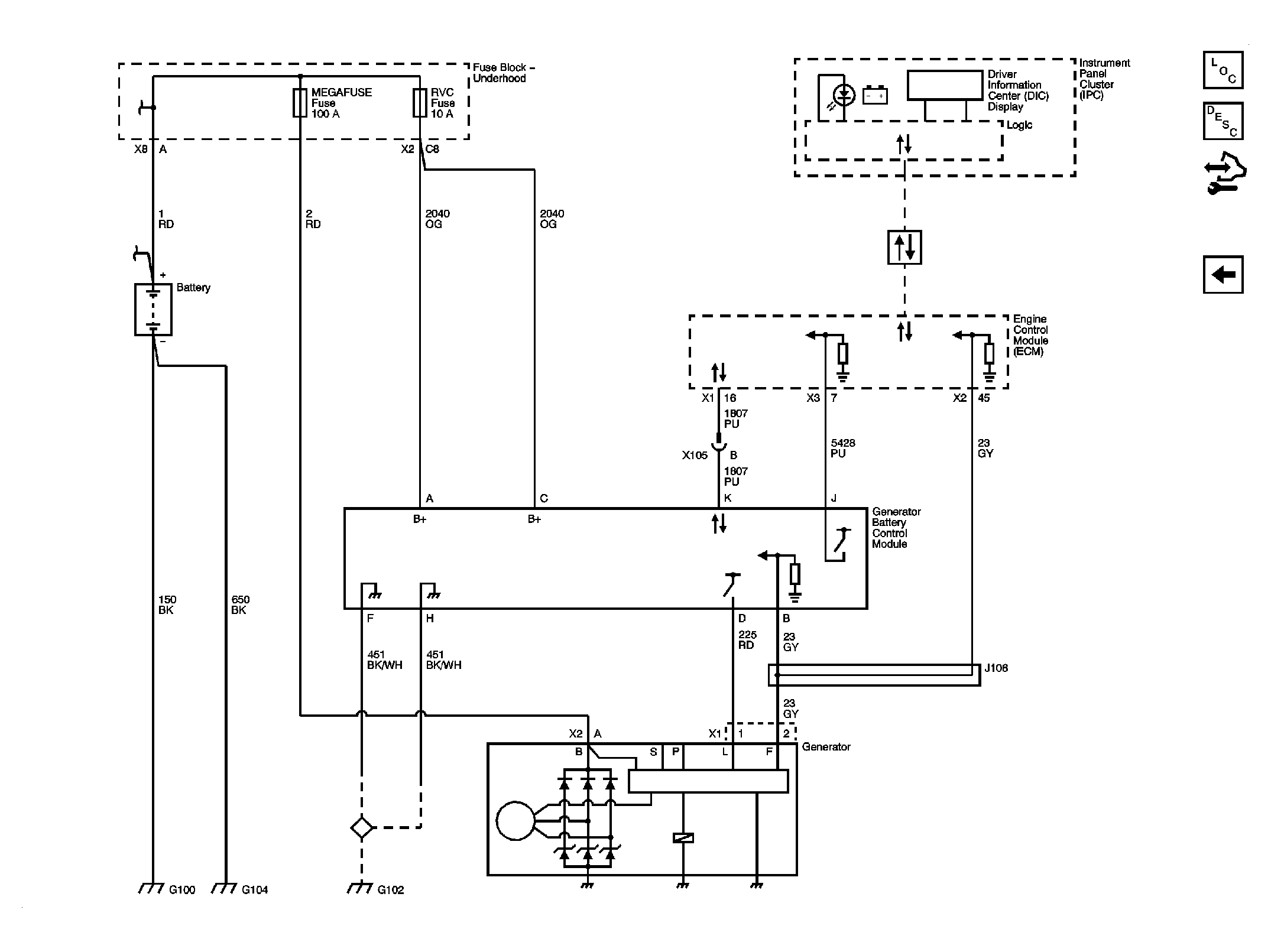

Fig 3: Charging System
GM1906972Courtesy of GENERAL MOTORS CORP.
