Heated/Cooled Seat Schematics

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

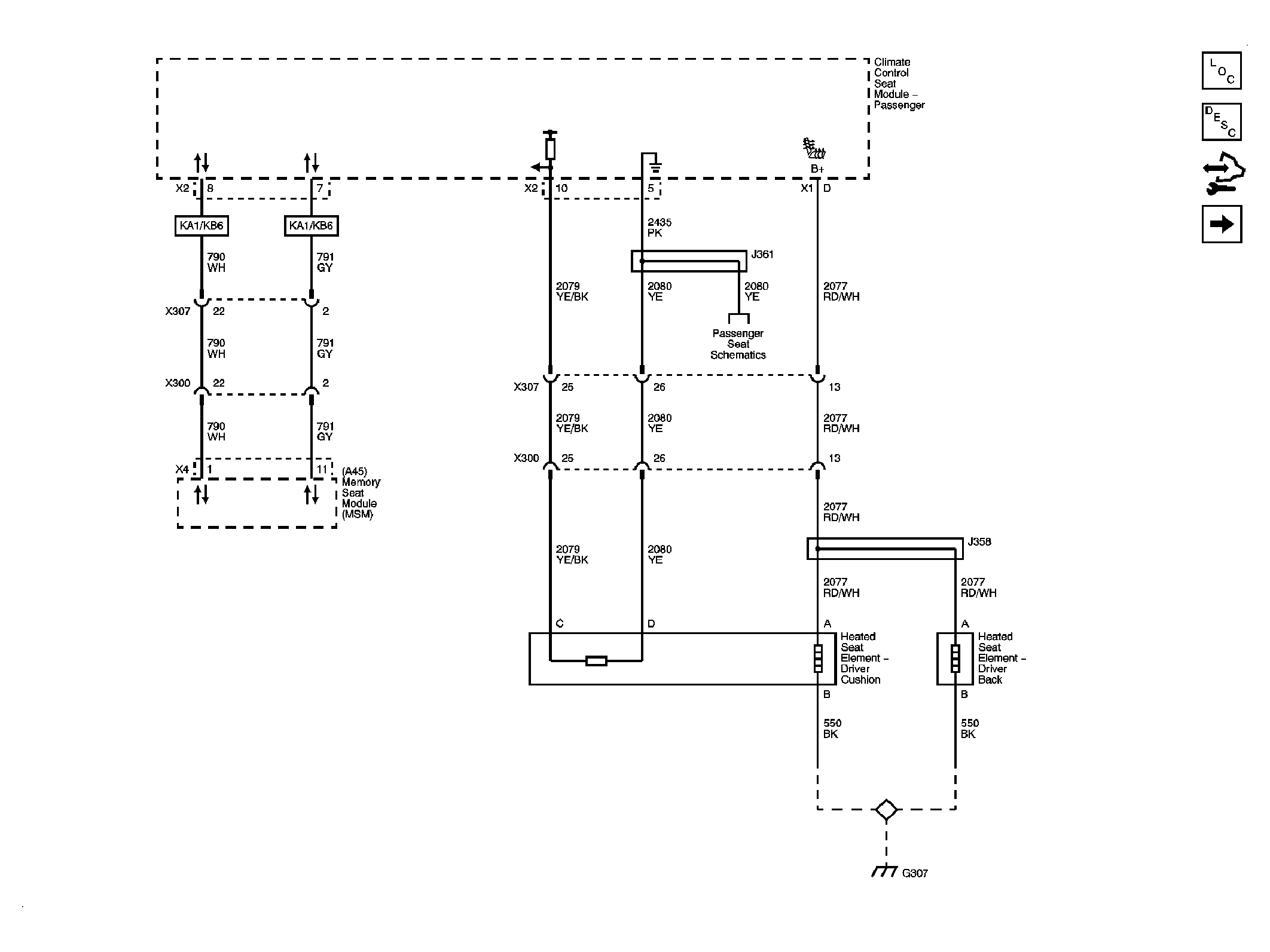

Fig 1: Driver Heated Seat Schematic

Courtesy of GENERAL MOTORS CORP.

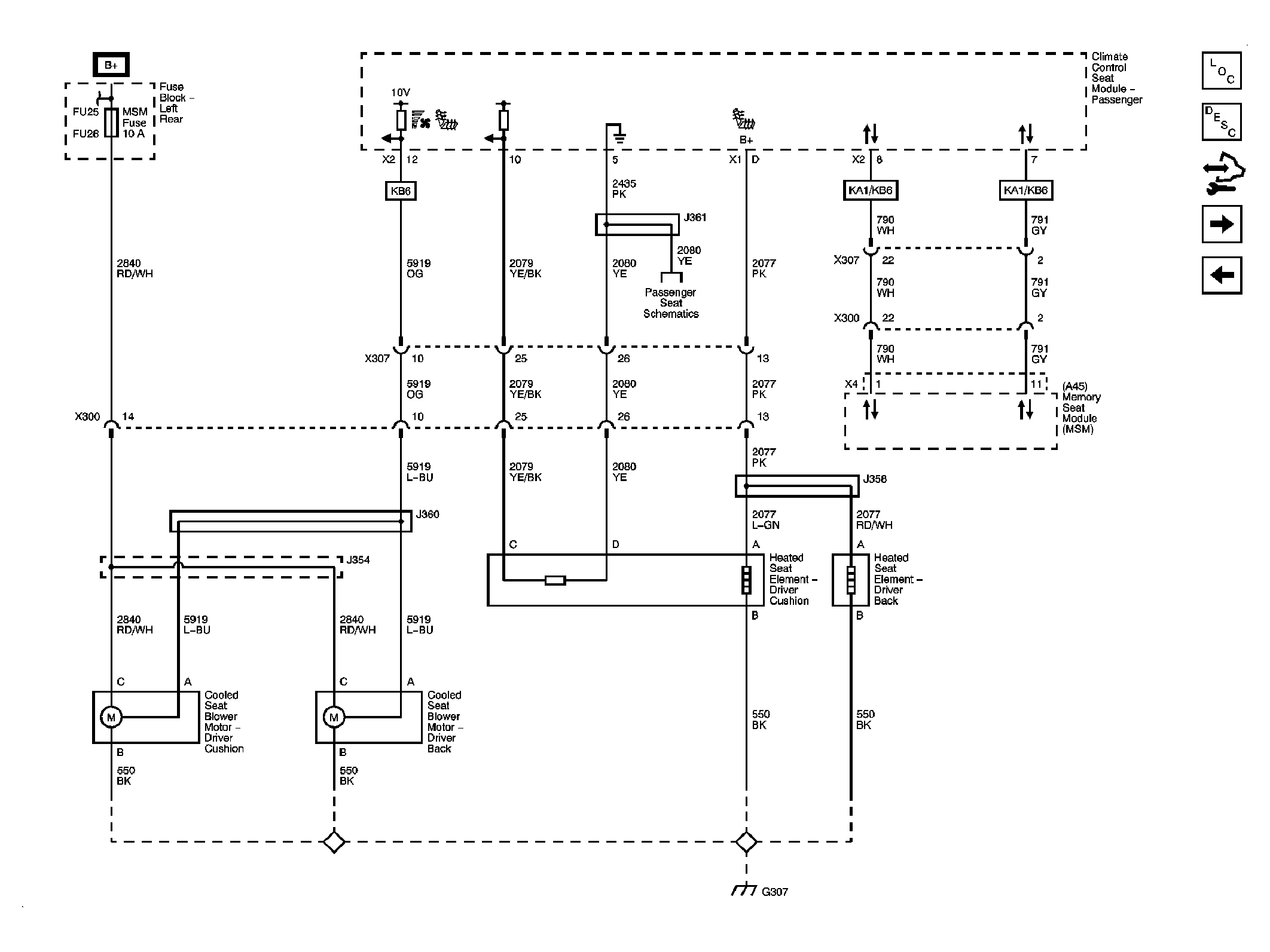

Fig 2: Driver Heated/Cooled Seat Schematic

Courtesy of GENERAL MOTORS CORP.

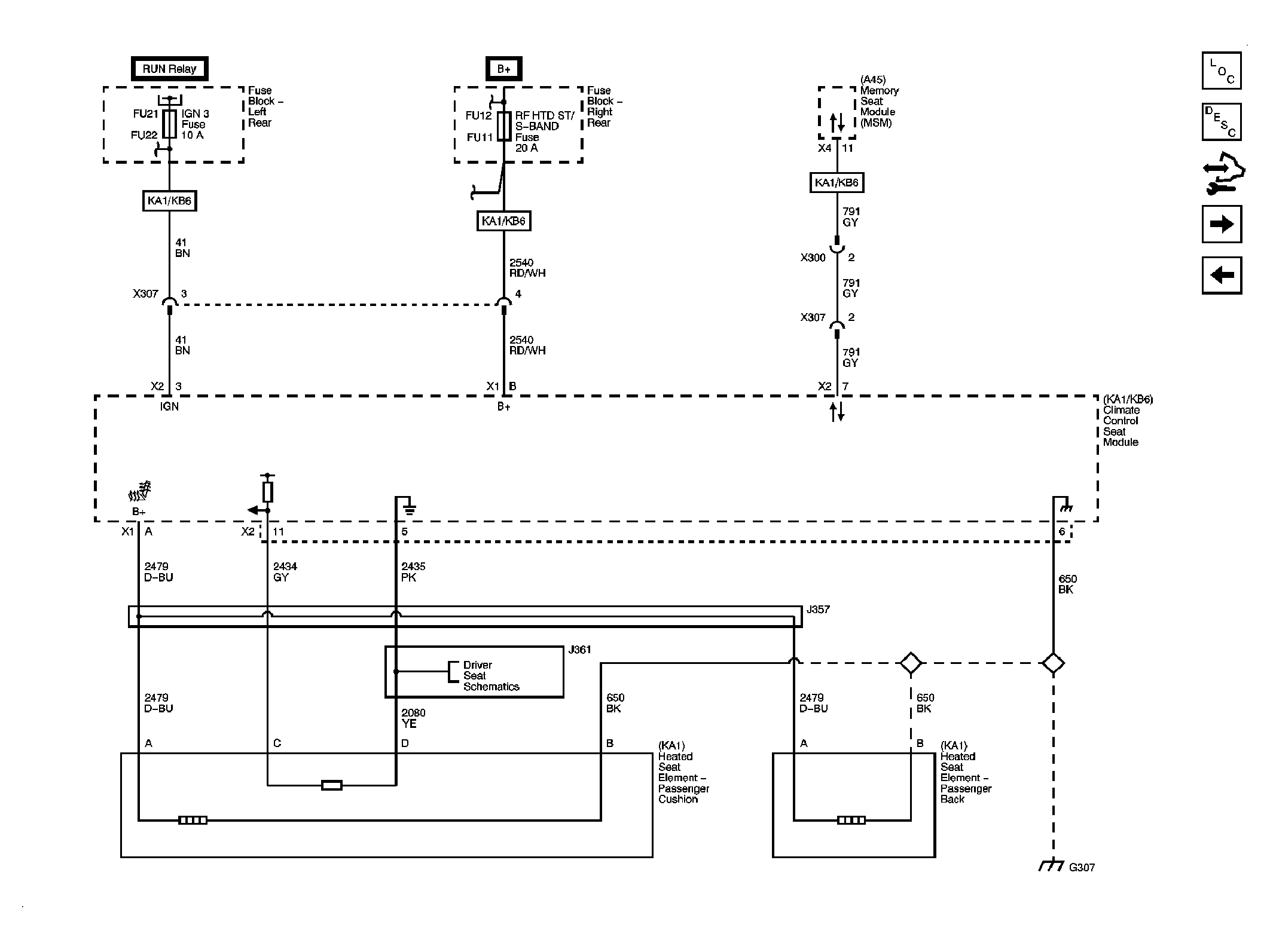

Fig 3: Front Passenger Heated Seat Schematic

Courtesy of GENERAL MOTORS CORP.

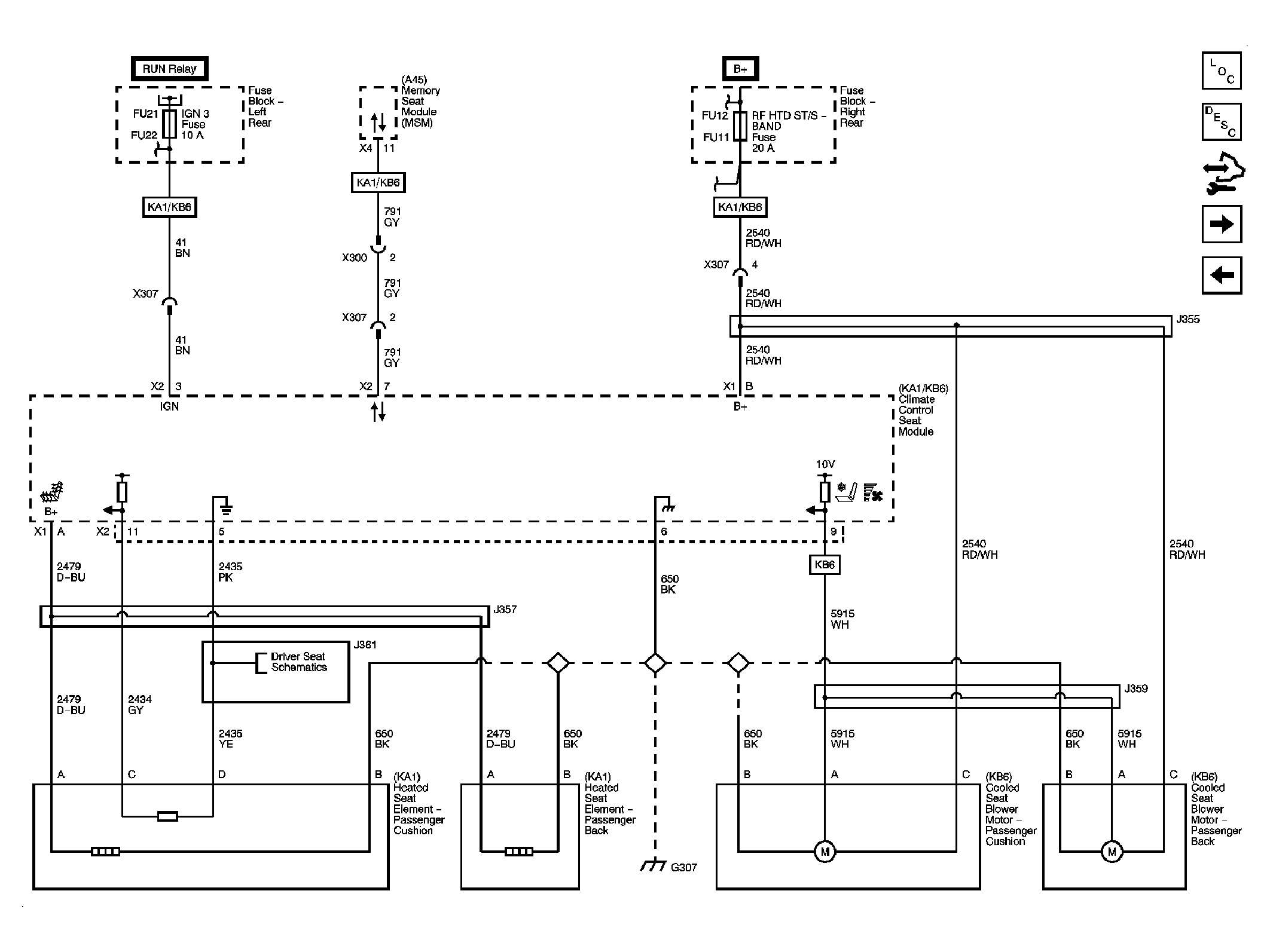

Fig 4: Front Passenger Heated/Cooled Seat Schematic

Courtesy of GENERAL MOTORS CORP.

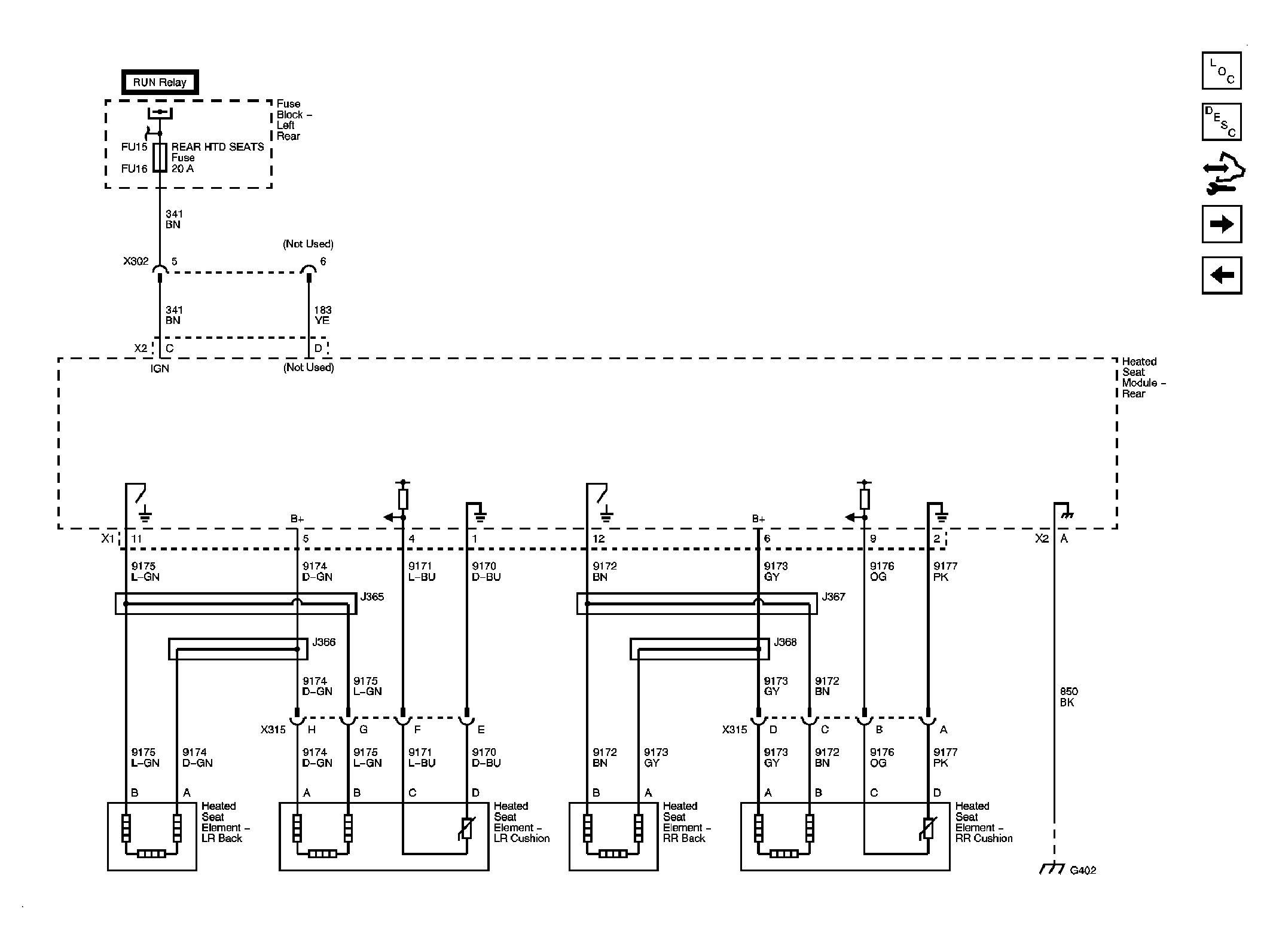

Fig 5: Right Rear Heated Seat Elements Schematic

Courtesy of GENERAL MOTORS CORP.

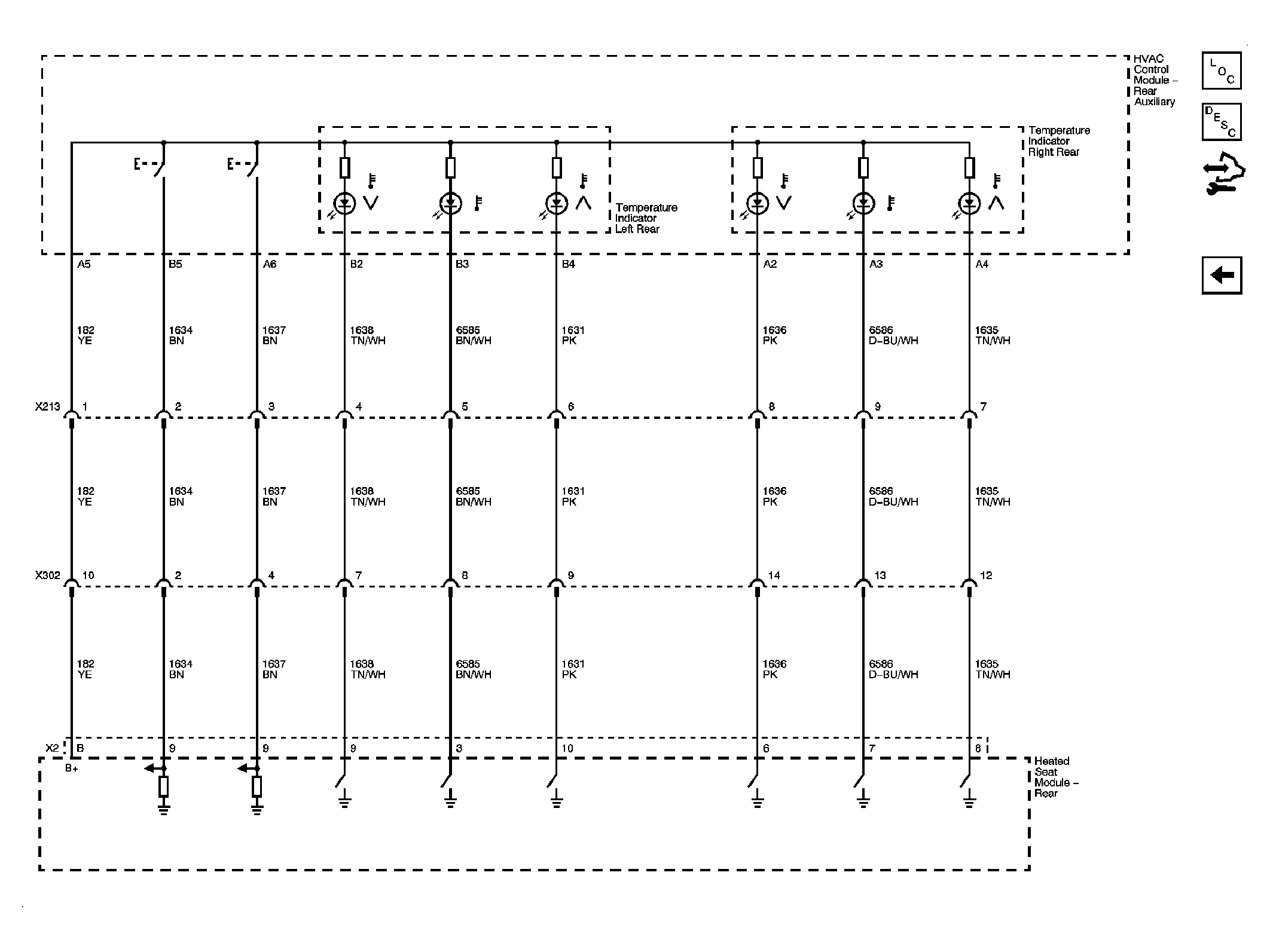

Fig 6: Left Rear Heated Seat Controls Schematic

Courtesy of GENERAL MOTORS CORP.
