Engine Controls Schematics

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

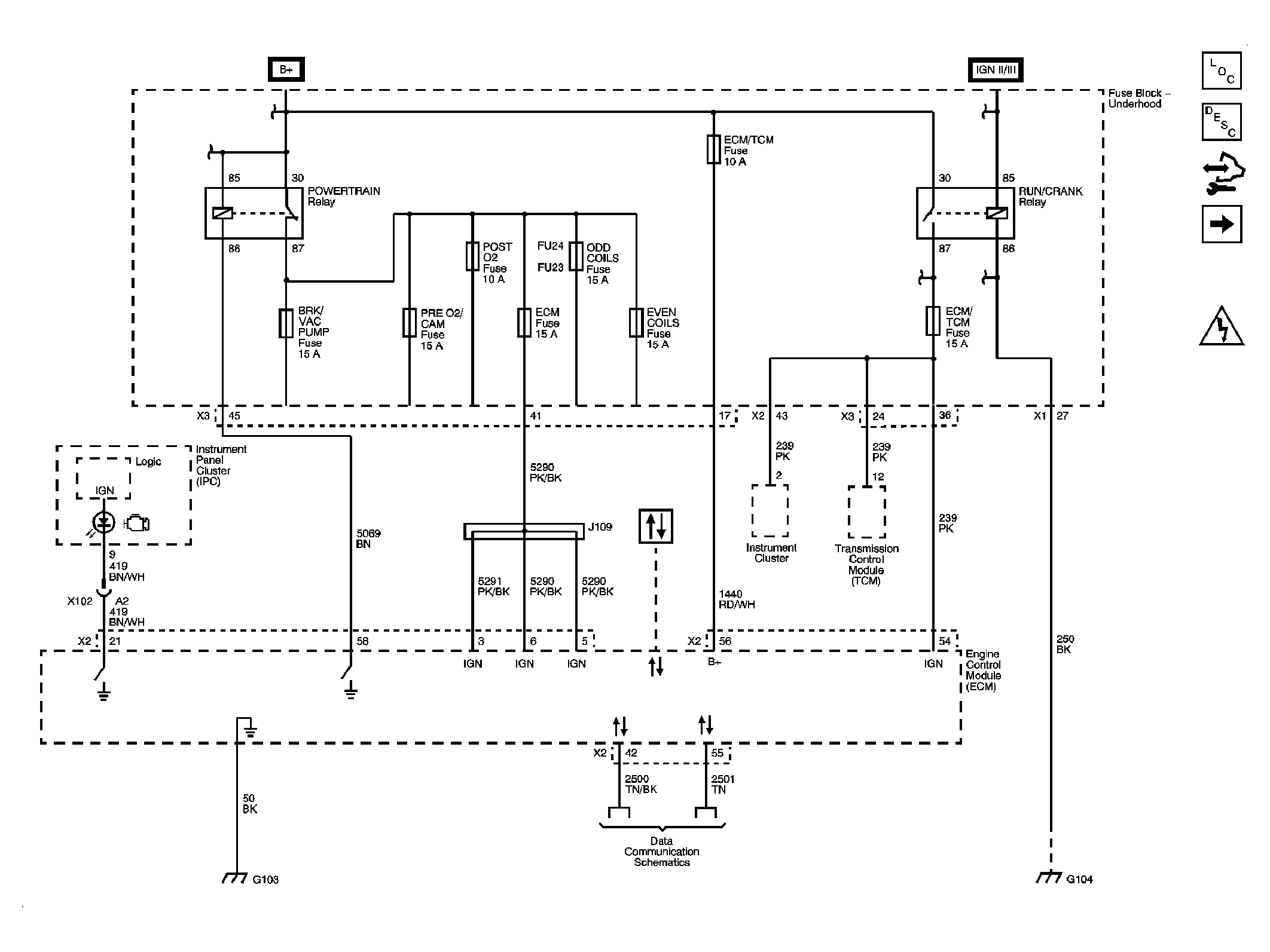

Fig 1: ECM Power, DLC, Ground, and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

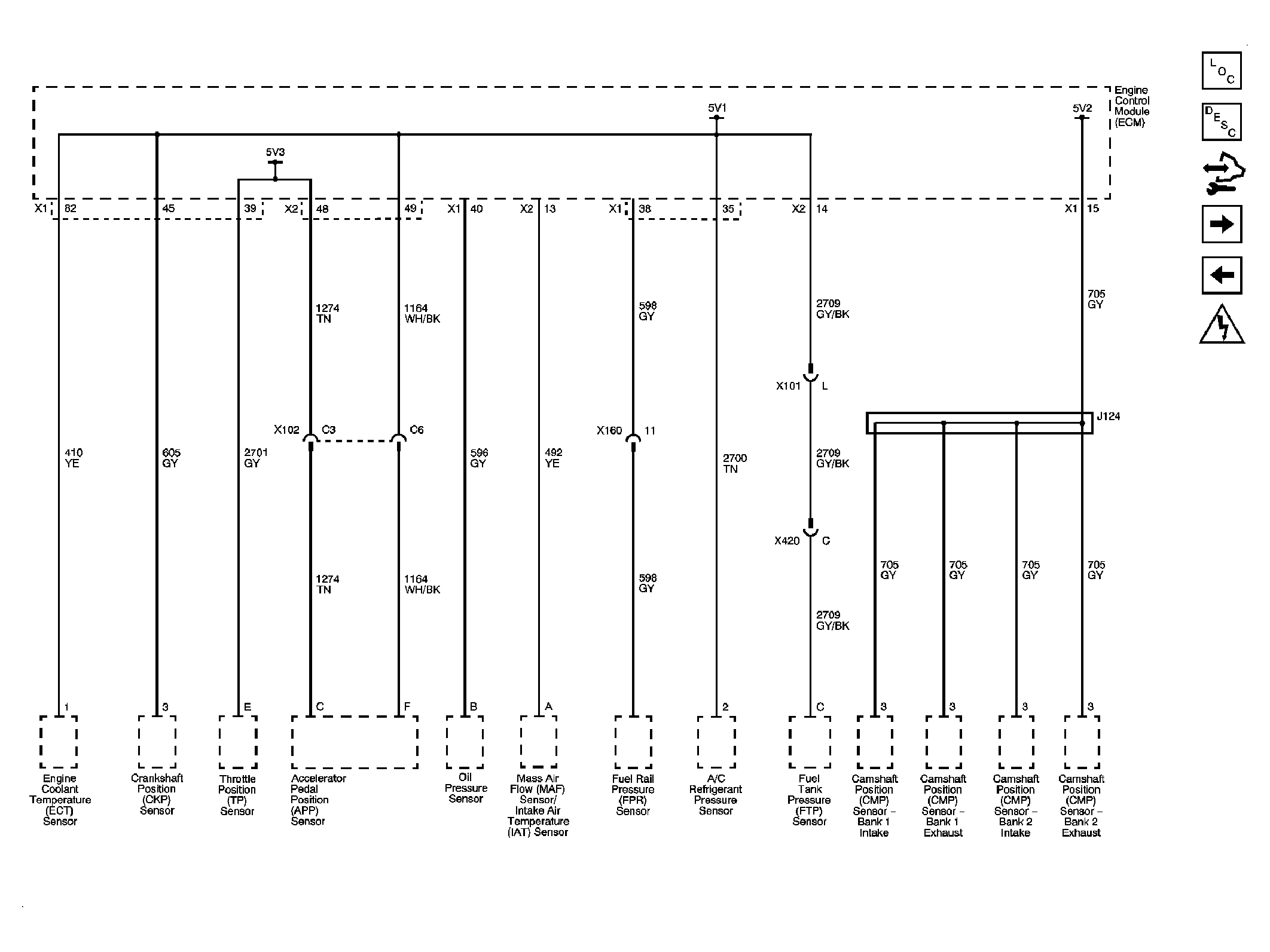

Fig 2: Engine Data Sensors - 5-Volt Reference Bus Schematic

Courtesy of GENERAL MOTORS CORP.

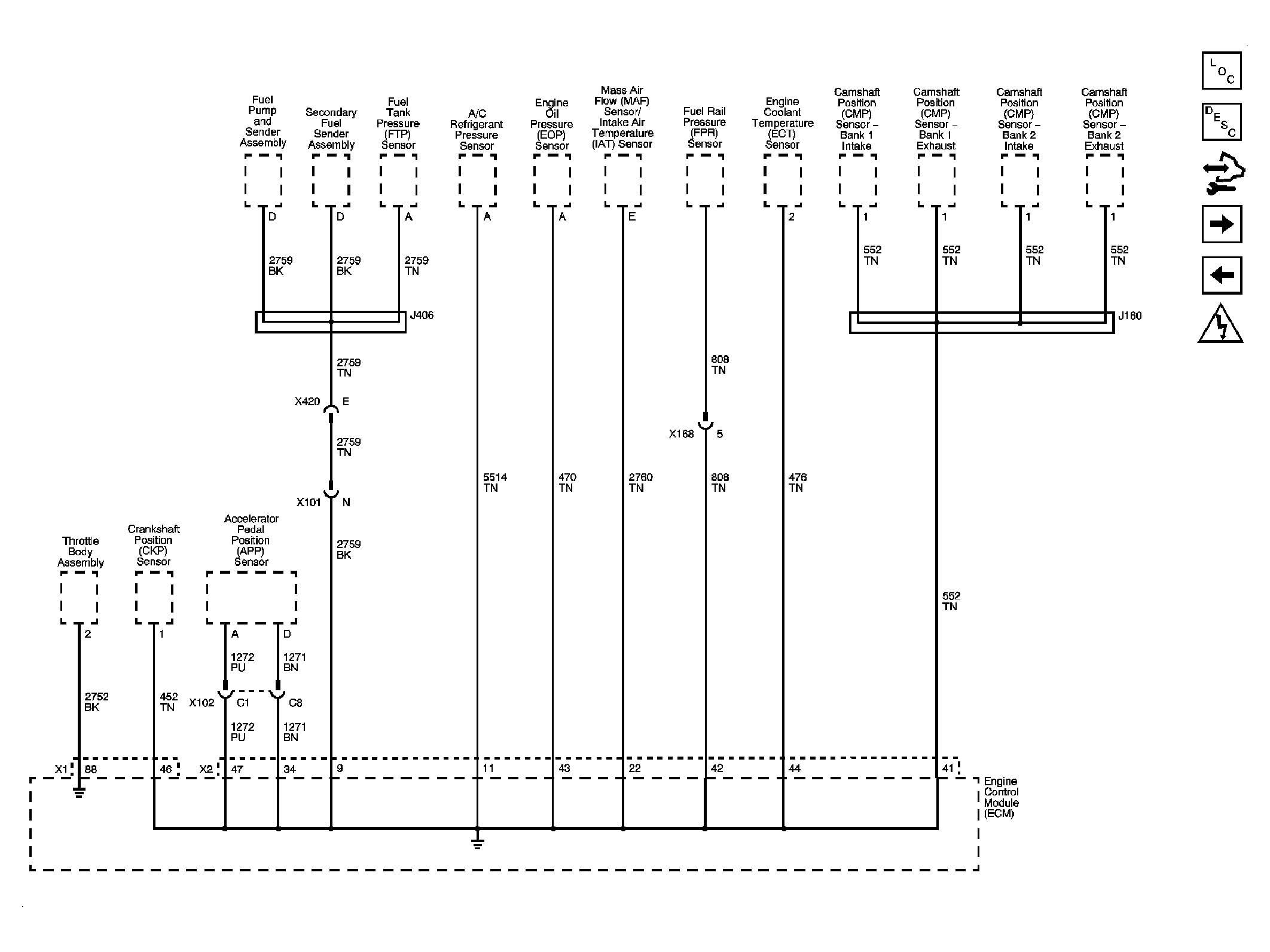

Fig 3: Engine Data Sensors - Low Reference Bus Schematic

Courtesy of GENERAL MOTORS CORP.

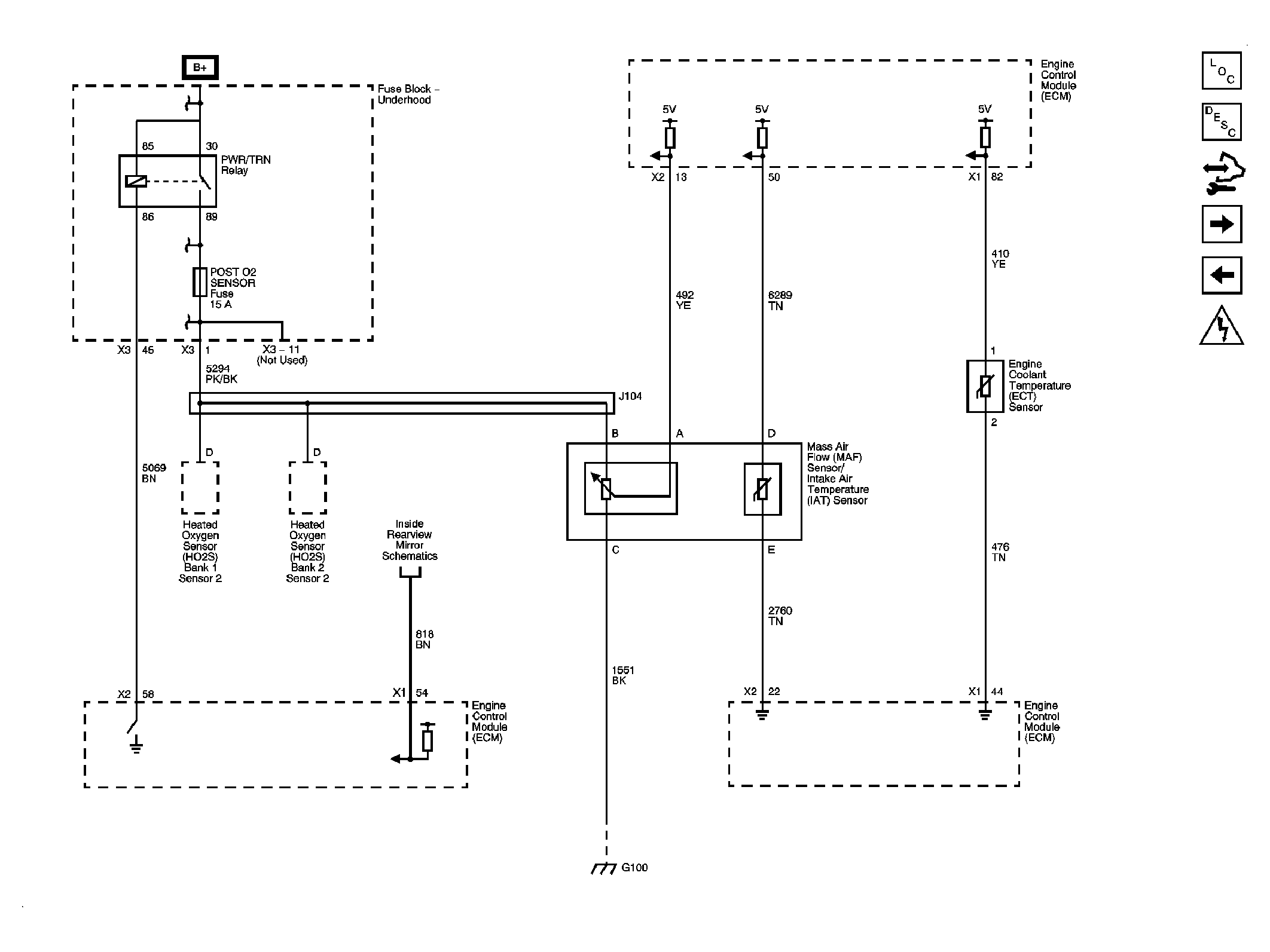

Fig 4: Engine Data Sensors - ECT, HO2S and MAF/IAT Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

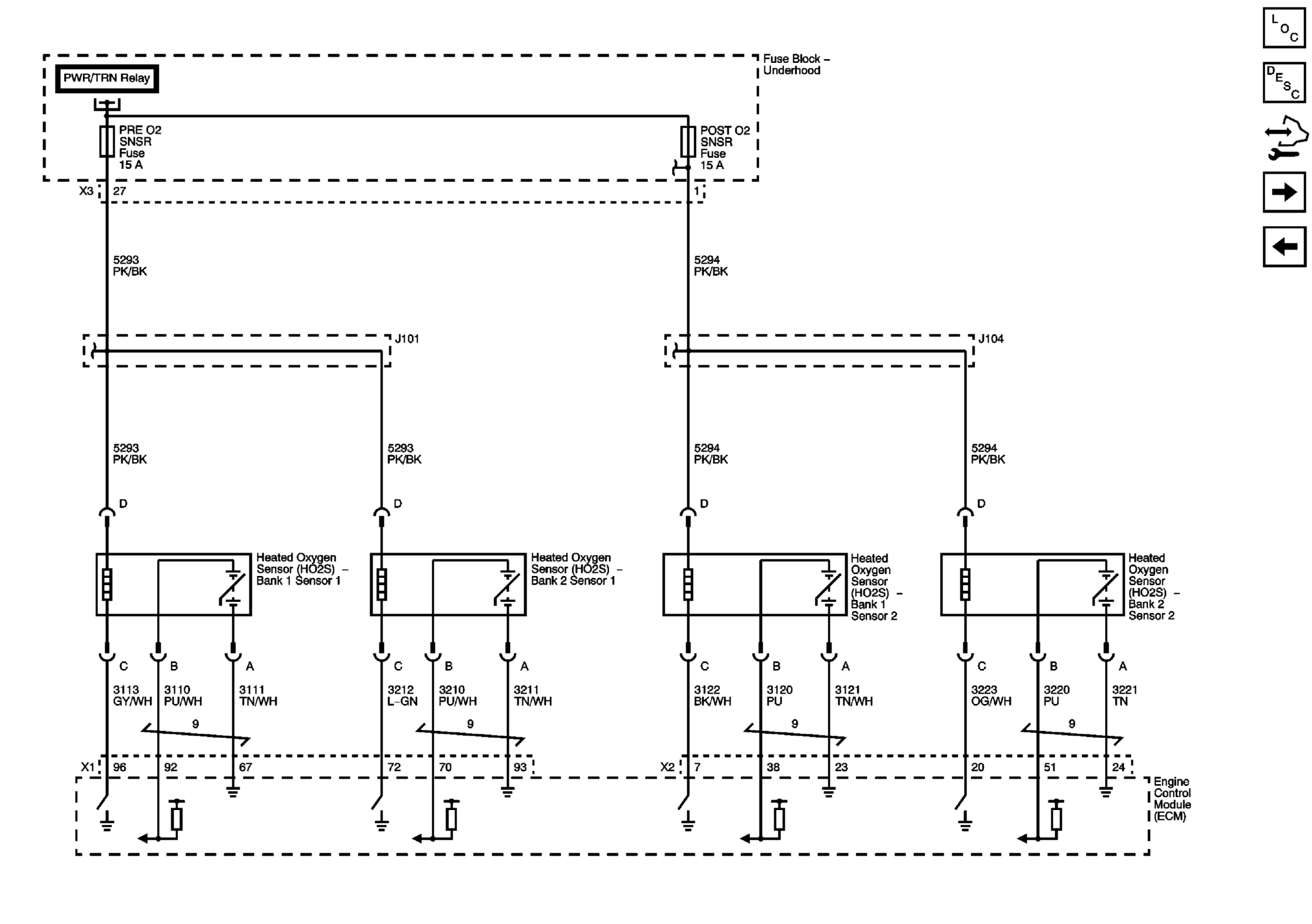

Fig 5: Engine Data Sensors - Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Engine Data Sensors - Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls - Bank 1 Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls - Bank 2 Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

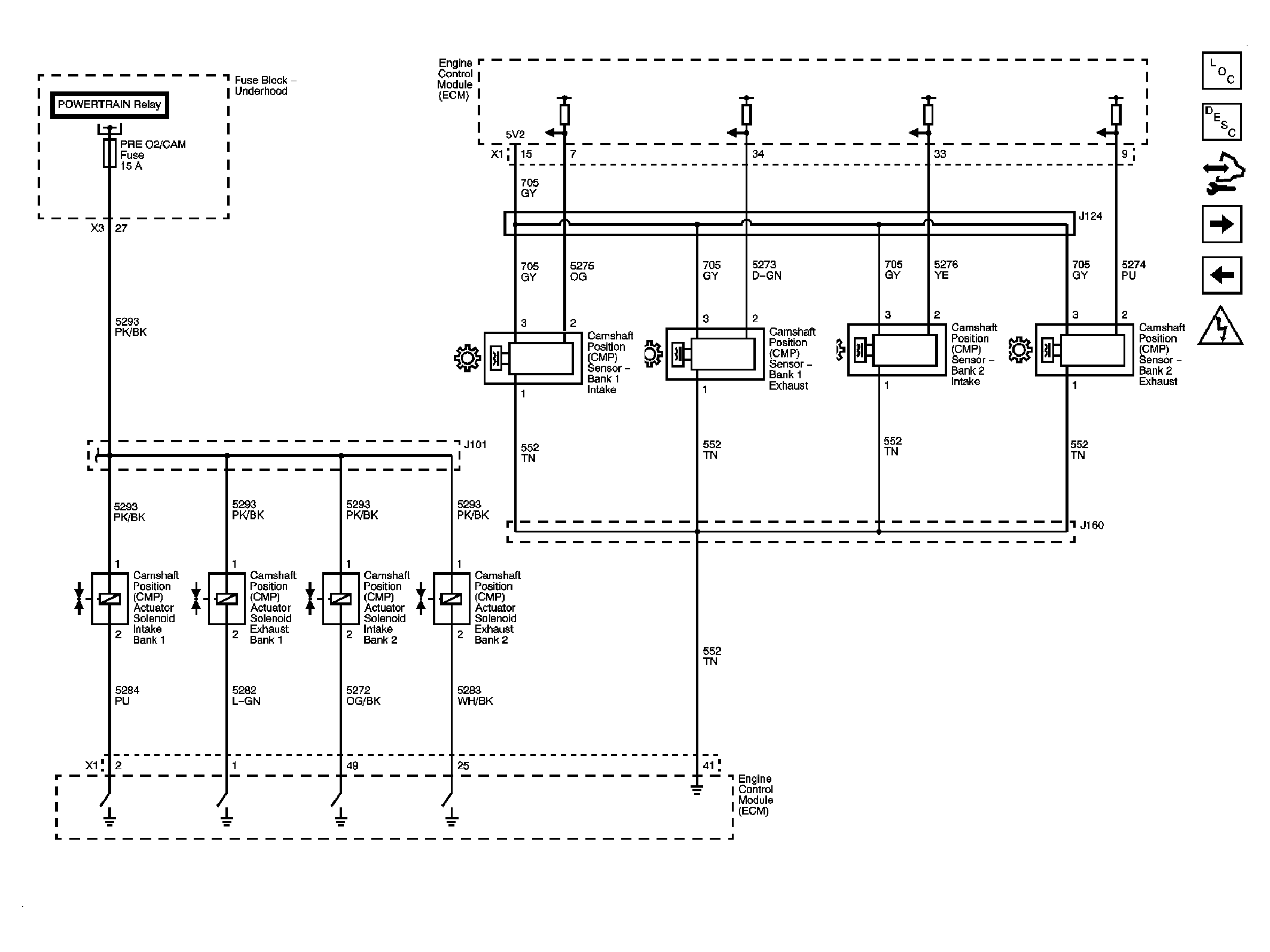

Fig 9: Ignition Controls - CMP Sensors and Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: Ignition Controls - CKP Sensor and Knock Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

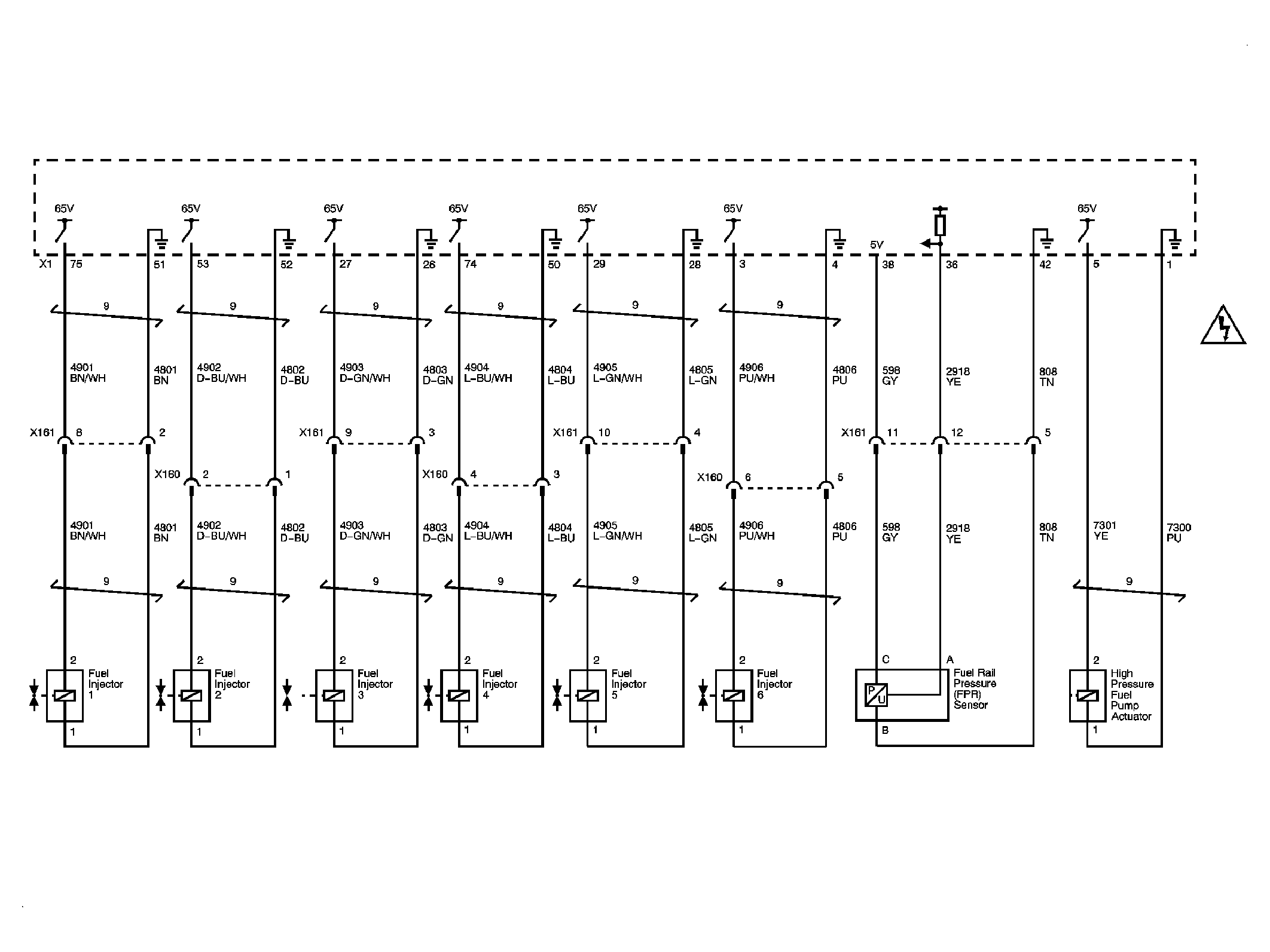

Fig 11: Fuel Controls - Fuel Injectors, Fuel Rail Pressure Sensor and High Pressure Fuel Pump Actuator Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: Fuel Controls - Low Pressure Fuel Pump Schematic

Courtesy of GENERAL MOTORS CORP.

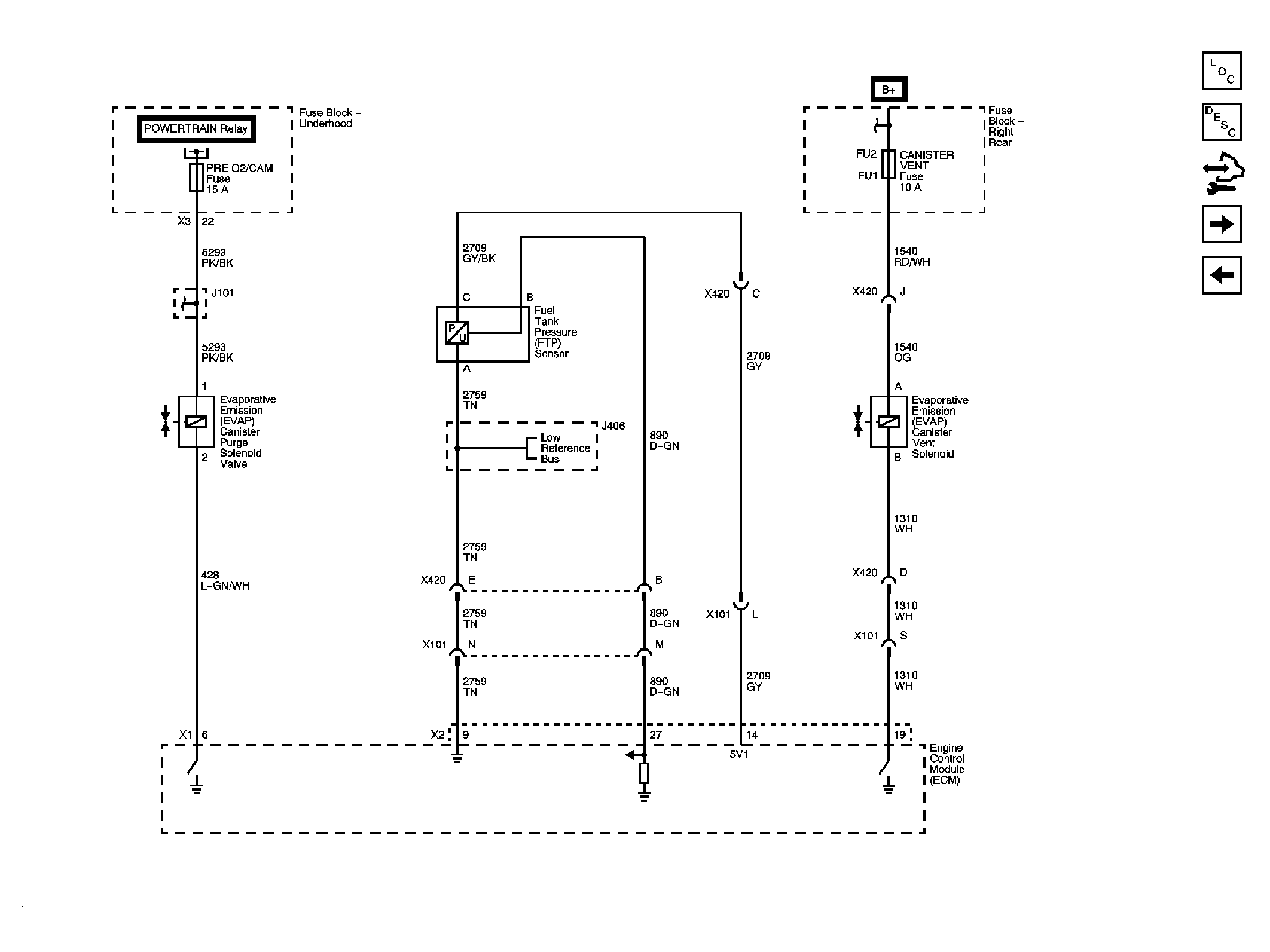

Fig 13: Fuel Controls - EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 14: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
