Transmission Control Lever Knob Replacement

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

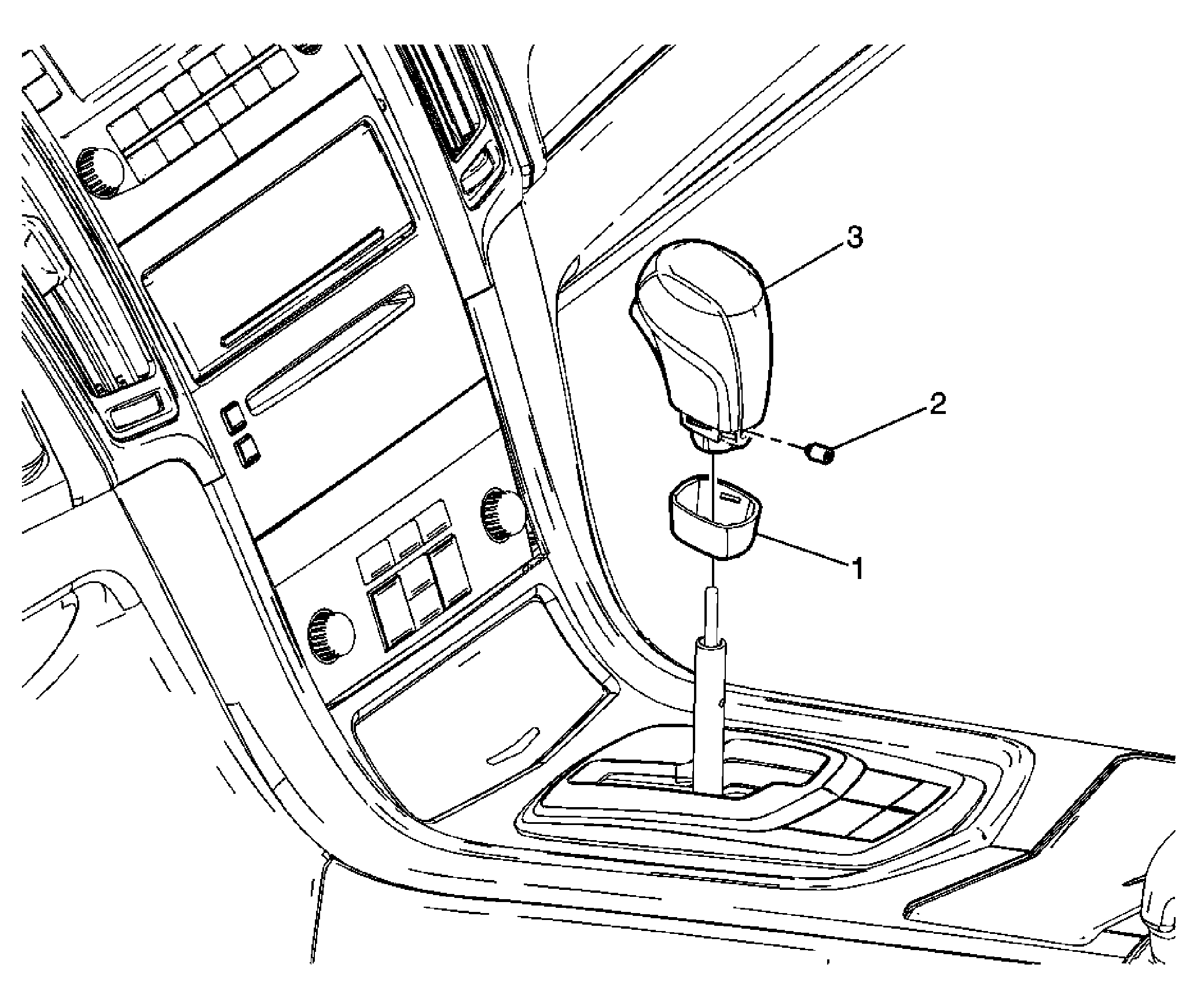

Fig 1: Shift Knob Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Control Knob Bezel Tip: Removal: Carefully insert a small flat-bladed tool between the bezel (1) and the shift knob (3). Apply careful downward pressure to the bezel to separate the bezel from the shift knob. Installation: Lift the bezel (1) up to the shift knob (3) until a click sound is heard indicating the bezel is secured to the shift knob.
2	Shift Control Knob Screw NOTE: Refer to Fastener Notice . Tip: Loosen the shift control knob screw approximately 3-4 turns. It is not necessary to fully remove the screw from the shift control knob. Tighten: 2 N.m (18 lb in)
3	Shift Control Knob
