Instrument Cluster Schematics

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Power, Ground, DLC, Odometer and Clock Schematic

Courtesy of GENERAL MOTORS CORP.

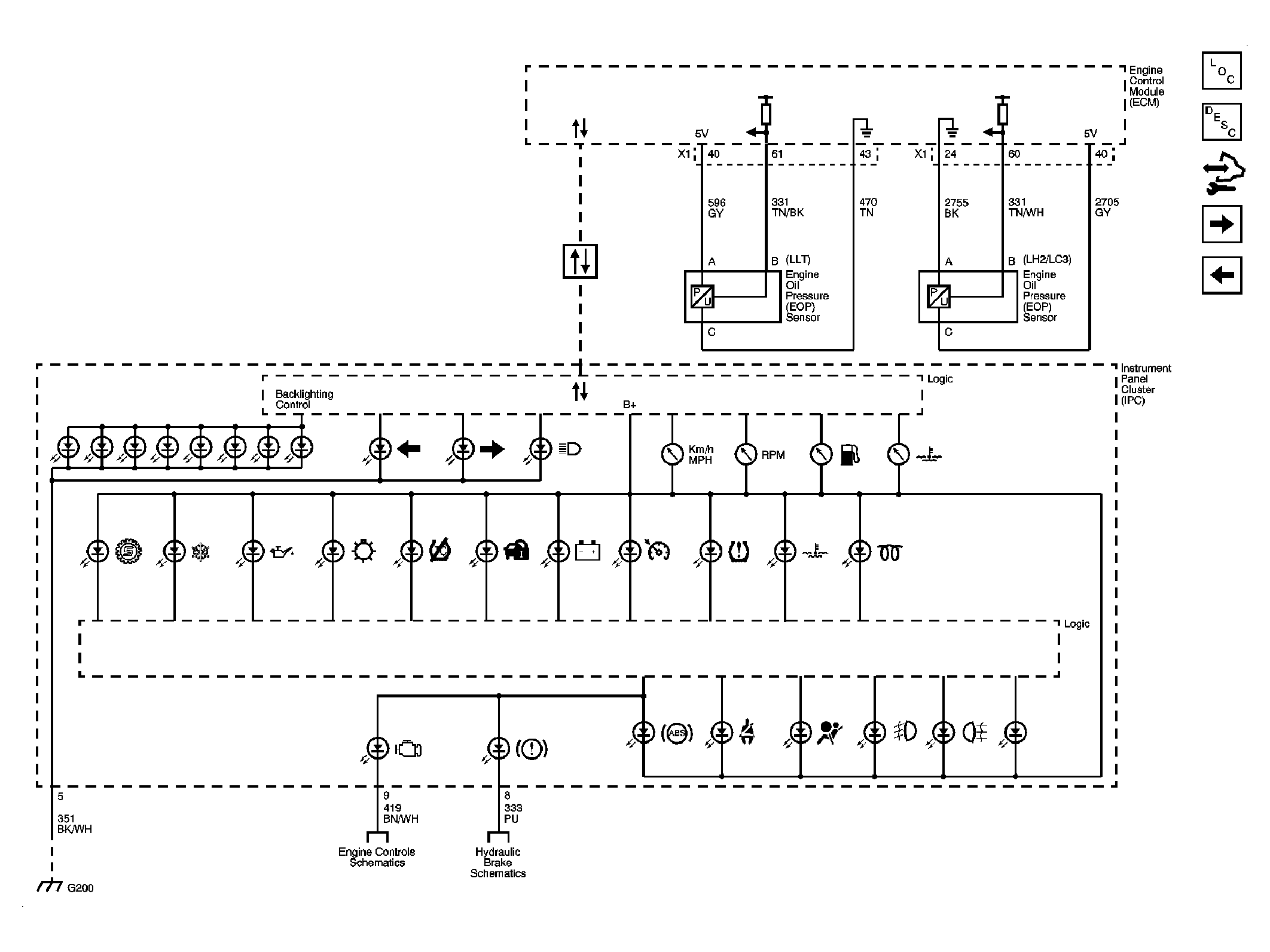

Fig 2: Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: DIC/Dimmer Switch Schematic

Courtesy of GENERAL MOTORS CORP.

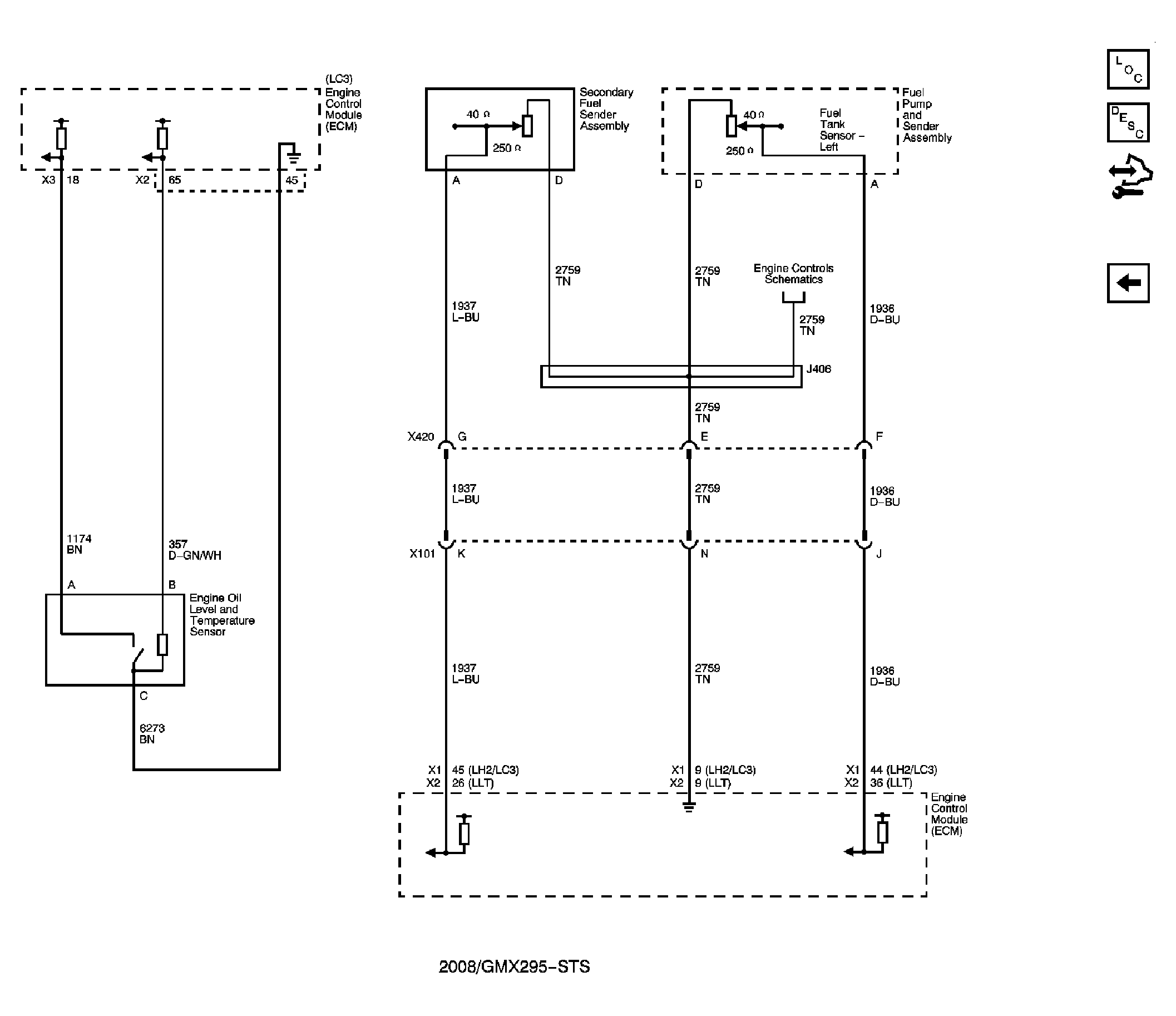

Fig 4: Engine Oil and Fuel Tank Level Schematic

Courtesy of GENERAL MOTORS CORP.
