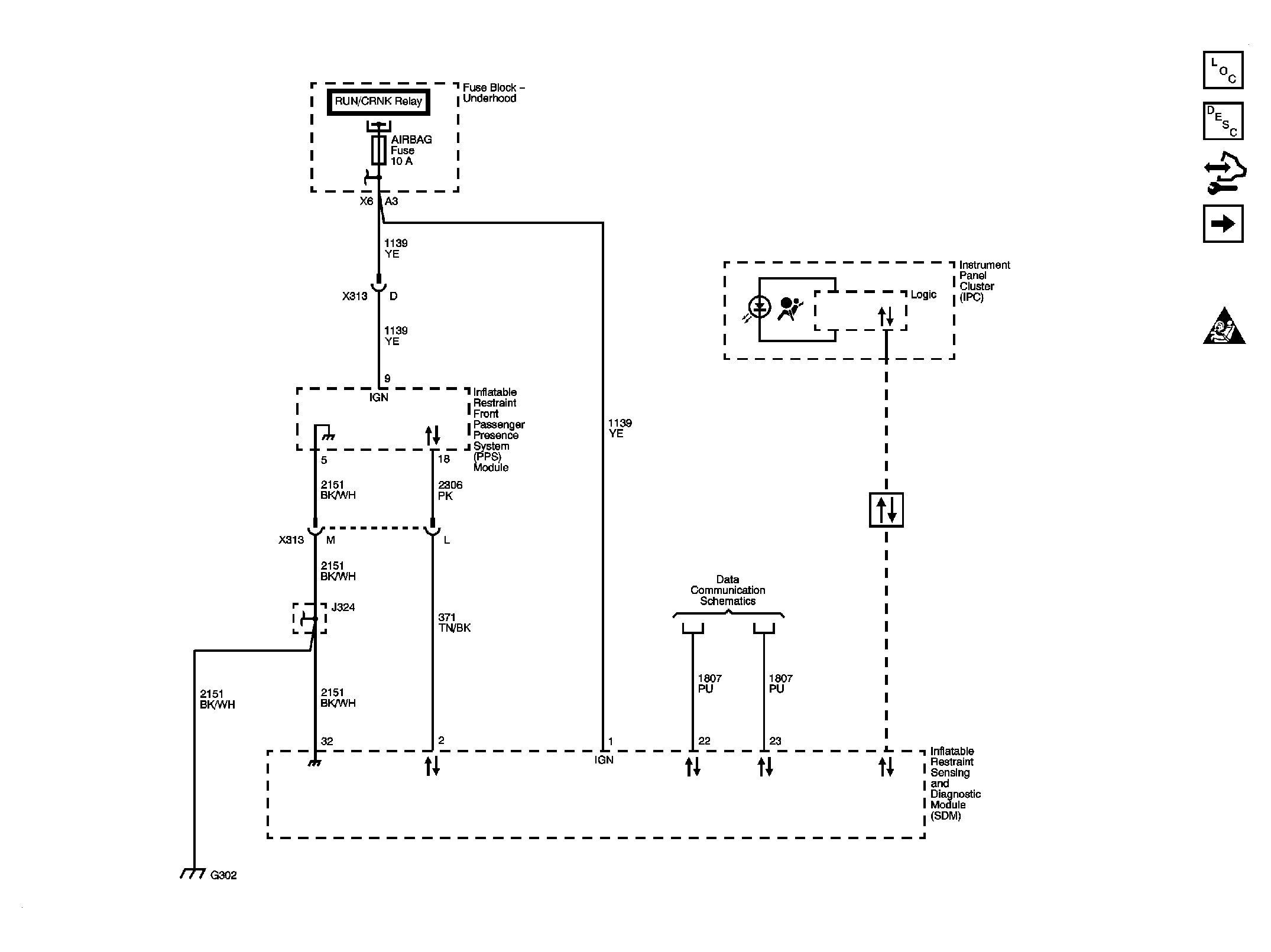

Fig 1: Power, Ground, and Serial Data
Courtesy of GENERAL MOTORS CORP.

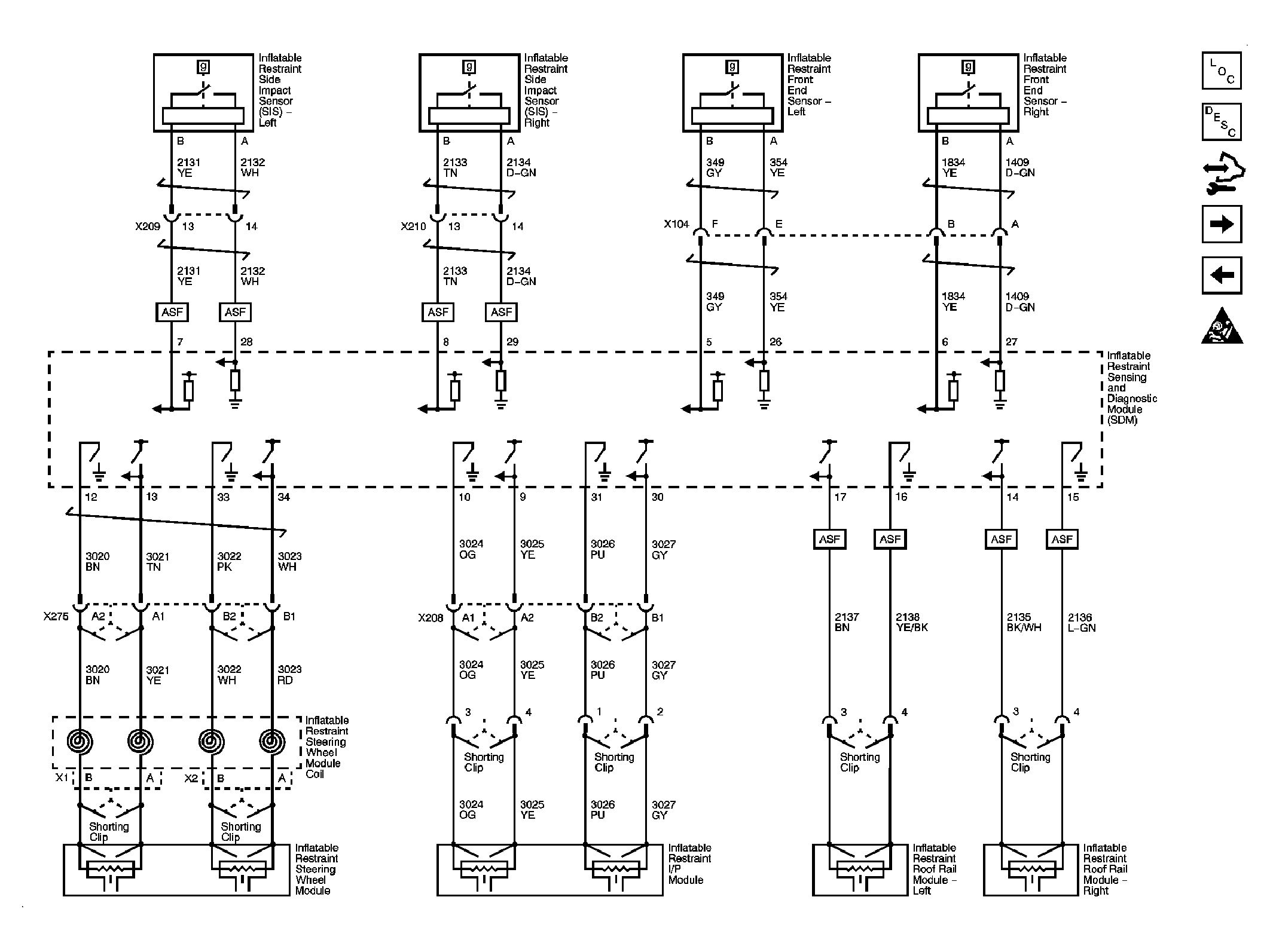

Fig 2: Impact Sensors and Modules
Courtesy of GENERAL MOTORS CORP.

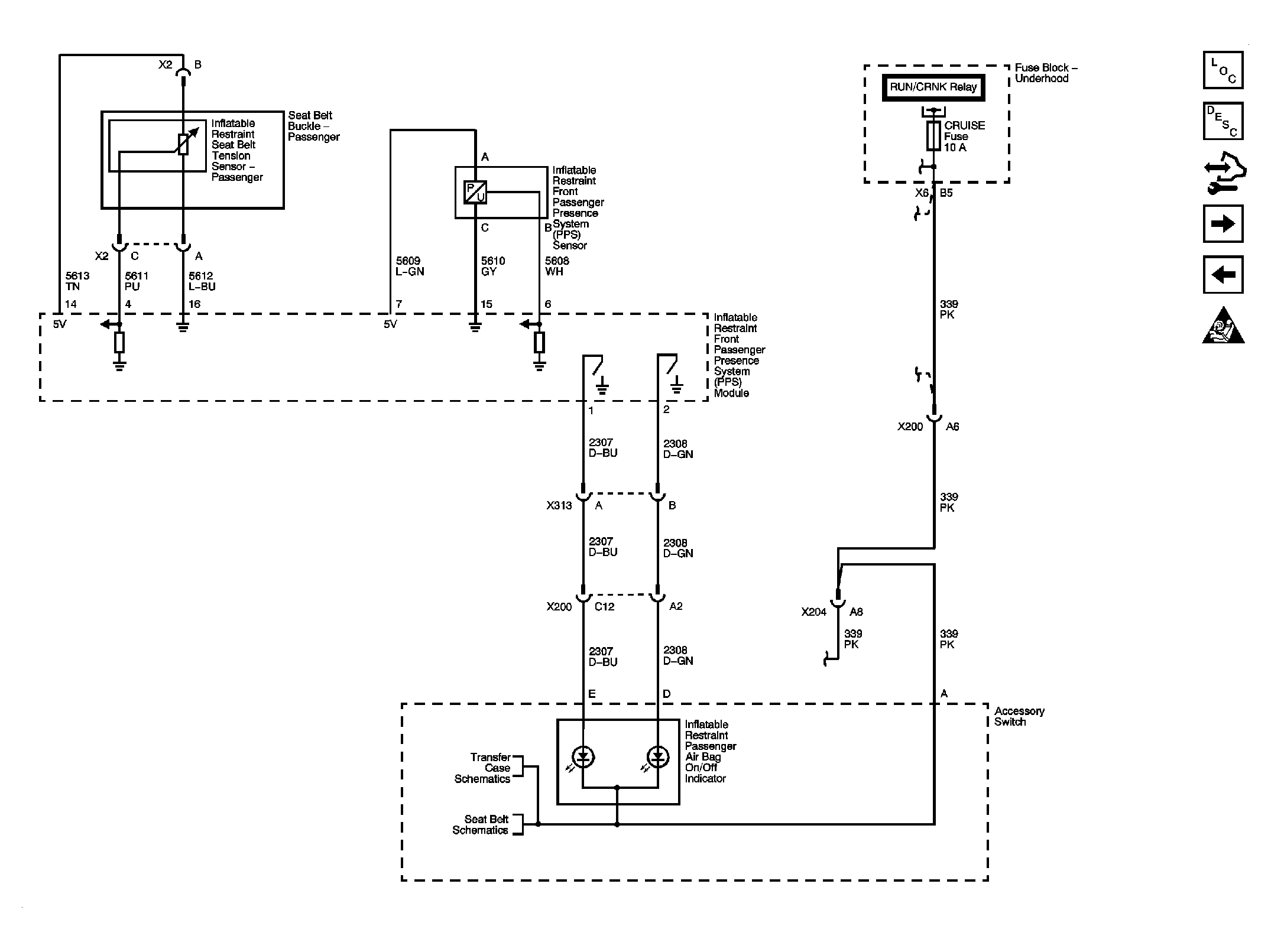

Fig 3: Passenger Presence
Courtesy of GENERAL MOTORS CORP.

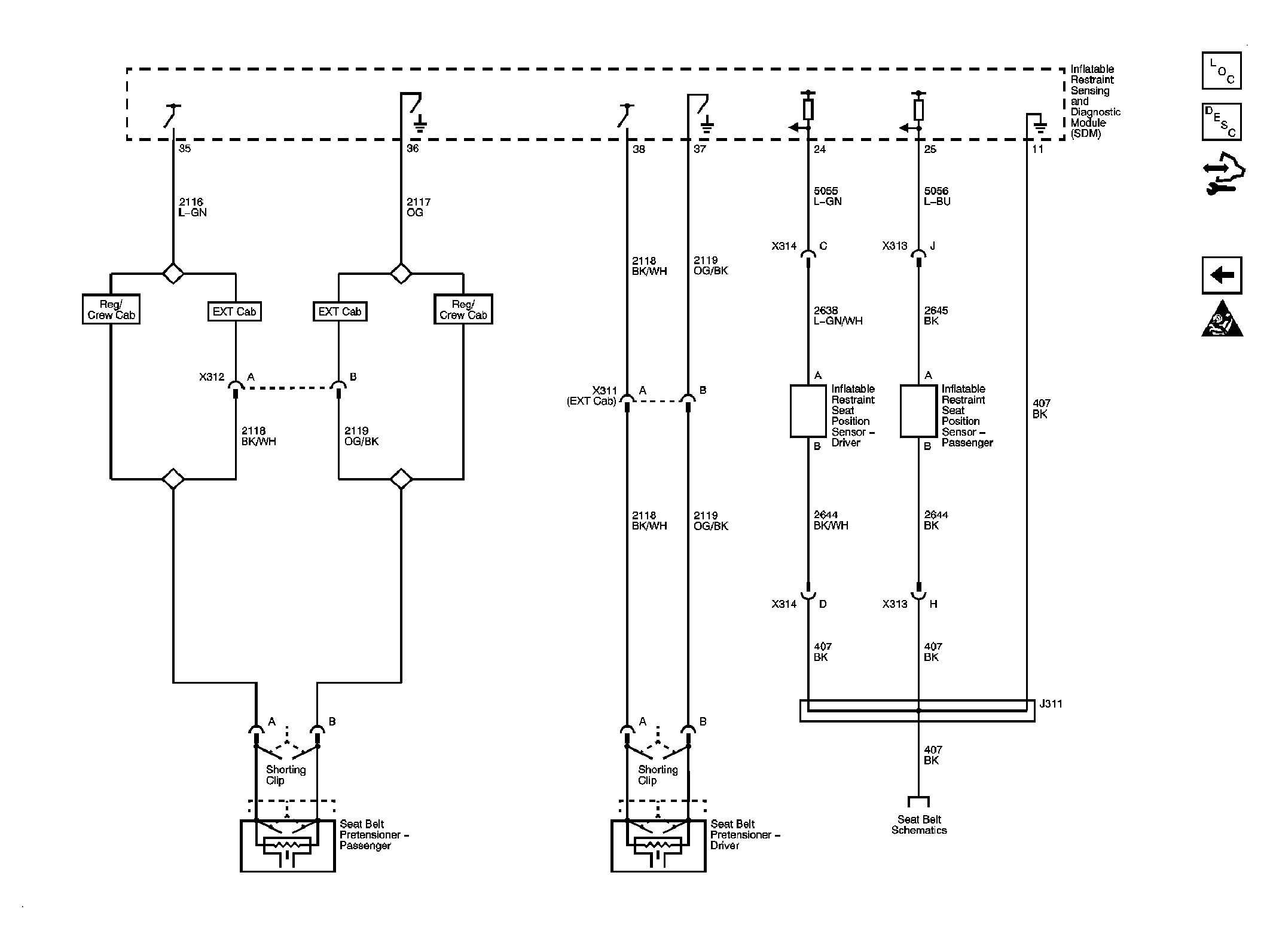

Fig 4: Seat Position Sensors and Seat Belt Pretensioners
