Wheelhouse Panel Replacement (Rear)

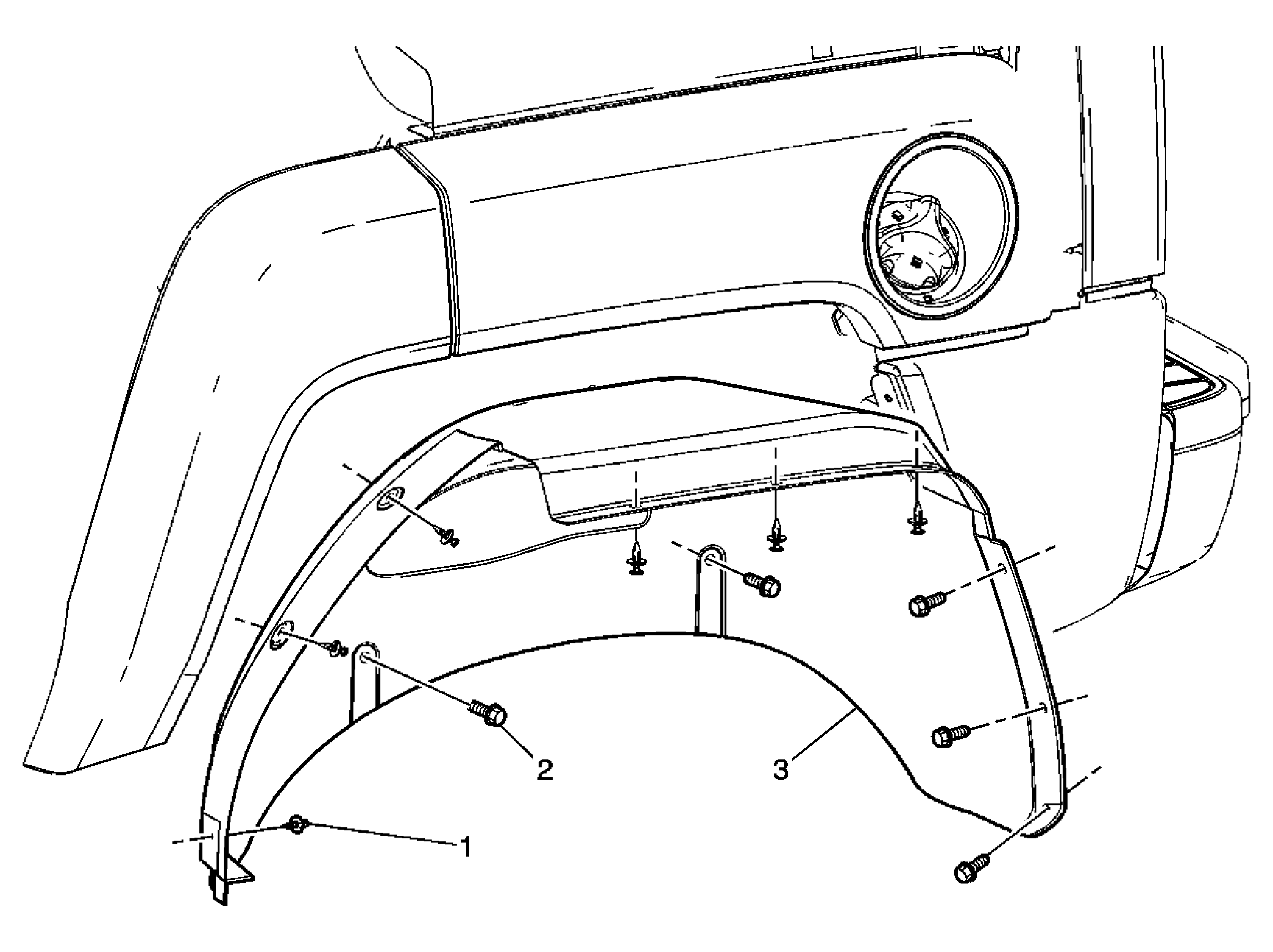

Fig 1: View of Rear Wheelhouse Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Fastener Tightening Specifications .
1	Retainer, Wheelhouse (Qty: 6)
2	Bolts, Wheelhouse Panel (Qty: 5) Tighten: 10 N.m (89 lb in)
3	Panel, Wheelhouse Rear
