Wheelhouse Panel Replacement (Front)

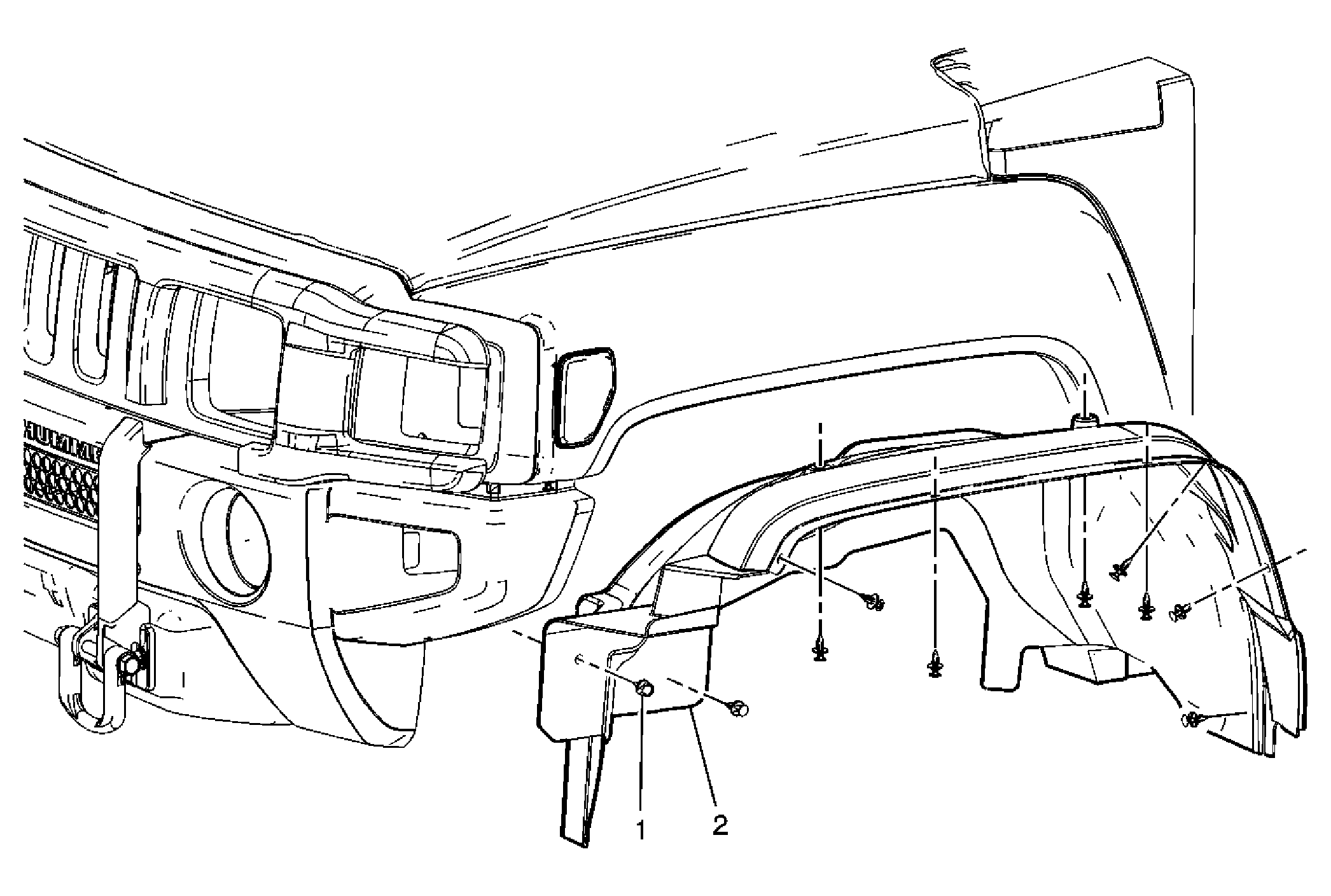

Fig 1: View of Front Wheelhouse Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Lift and support vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheel. Refer to Tire and Wheel Removal and Installation .
1	Retainer, Front Wheelhouse Panel (Qty: 10)
2	Panel, Front Wheelhouse

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Retainer, Front Wheelhouse Panel (Qty: 10)

Panel, Front Wheelhouse
