Windshield Pillar Garnish Molding Replacement

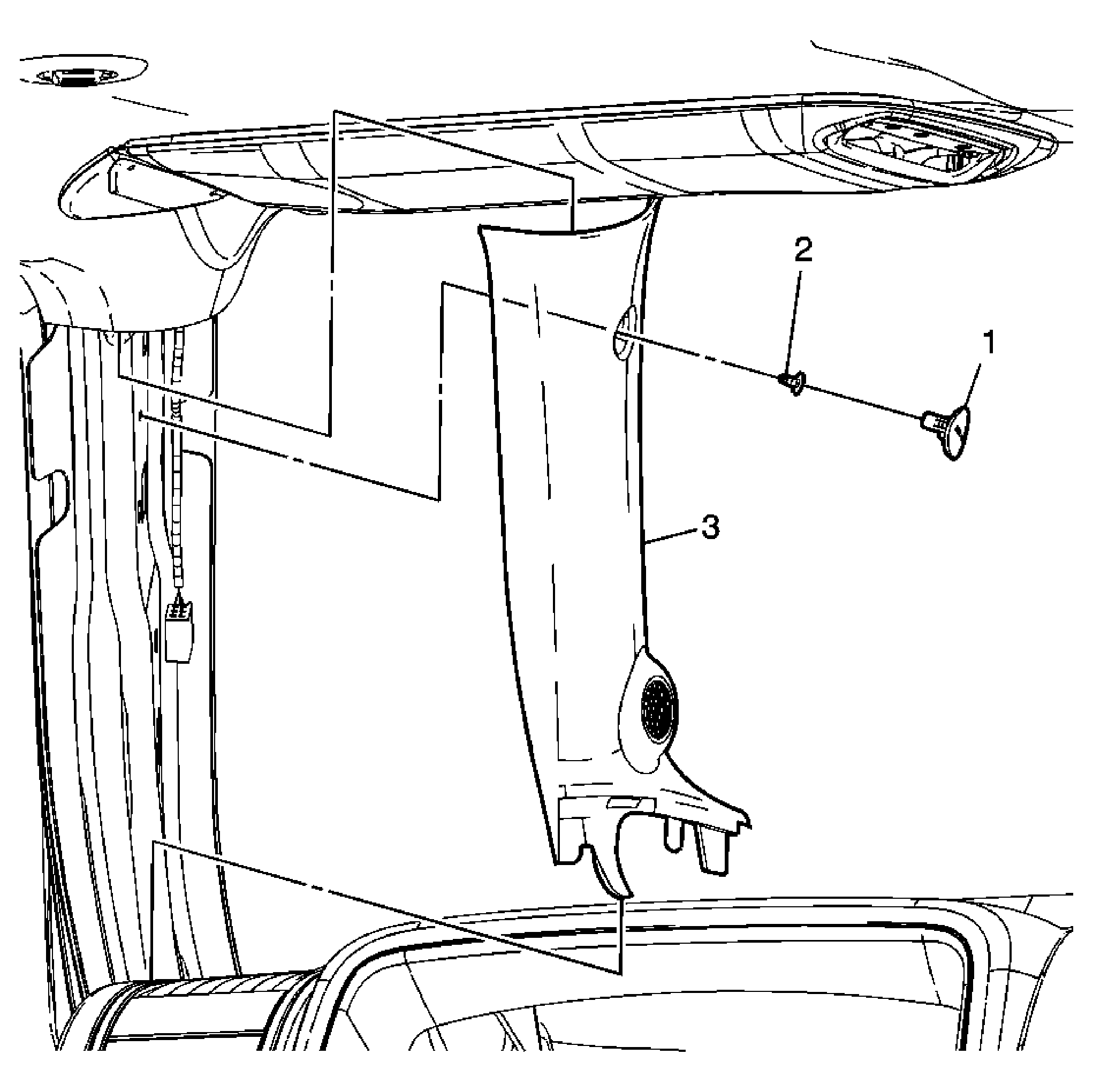

Fig 1: Windshield Pillar Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures:  Disable SIR system. Refer to SIR Disabling and Enabling .
1	Windshield Side Garnish Bolt Hole Finish Plug
2	Windshield Side Garnish Screw NOTE: Refer to Fastener Notice . Tighten:  9 N.m (80 lb in)
3	Windshield Side Garnish Molding Assembly Tip:  Disconnect the electrical connector.
