Rocker Panel Molding Replacement

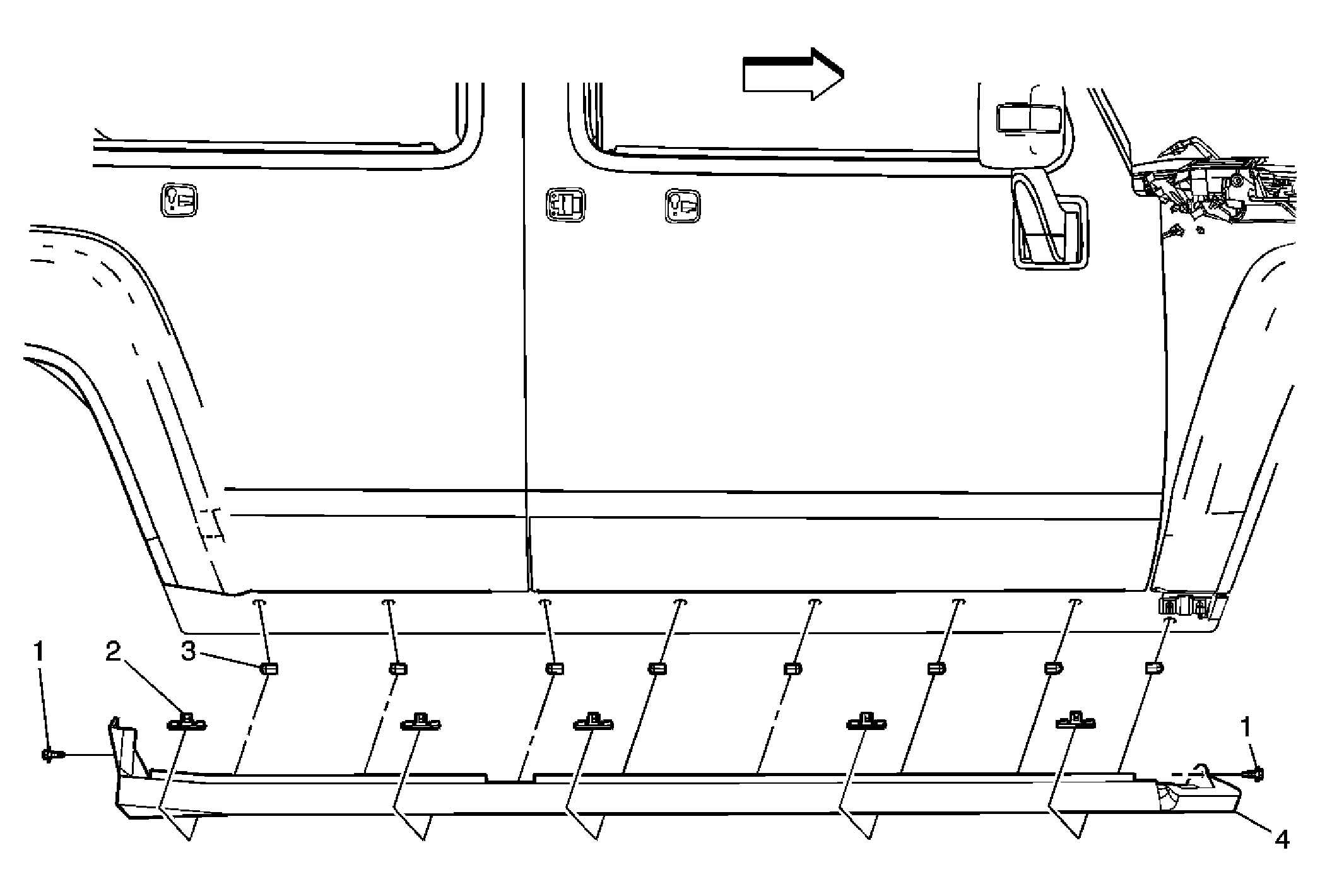

Fig 1: Rocker Panel Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . NOTE: Refer to Fastener Notice .
1	Screws, Rocker Panel (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Retainers, Lower Rocker Panel (Qty: 5) Tip: Release the lower 5 retainers from the rocker by pulling panel downward.
3	Retainers, Upper Rocker Panel (Qty: 8) Tip: Release the upper 8 retainers from the rocker by pulling the panel outward.
4	Panel, Lower Rocker
