Rear Side Door Hinge Replacement

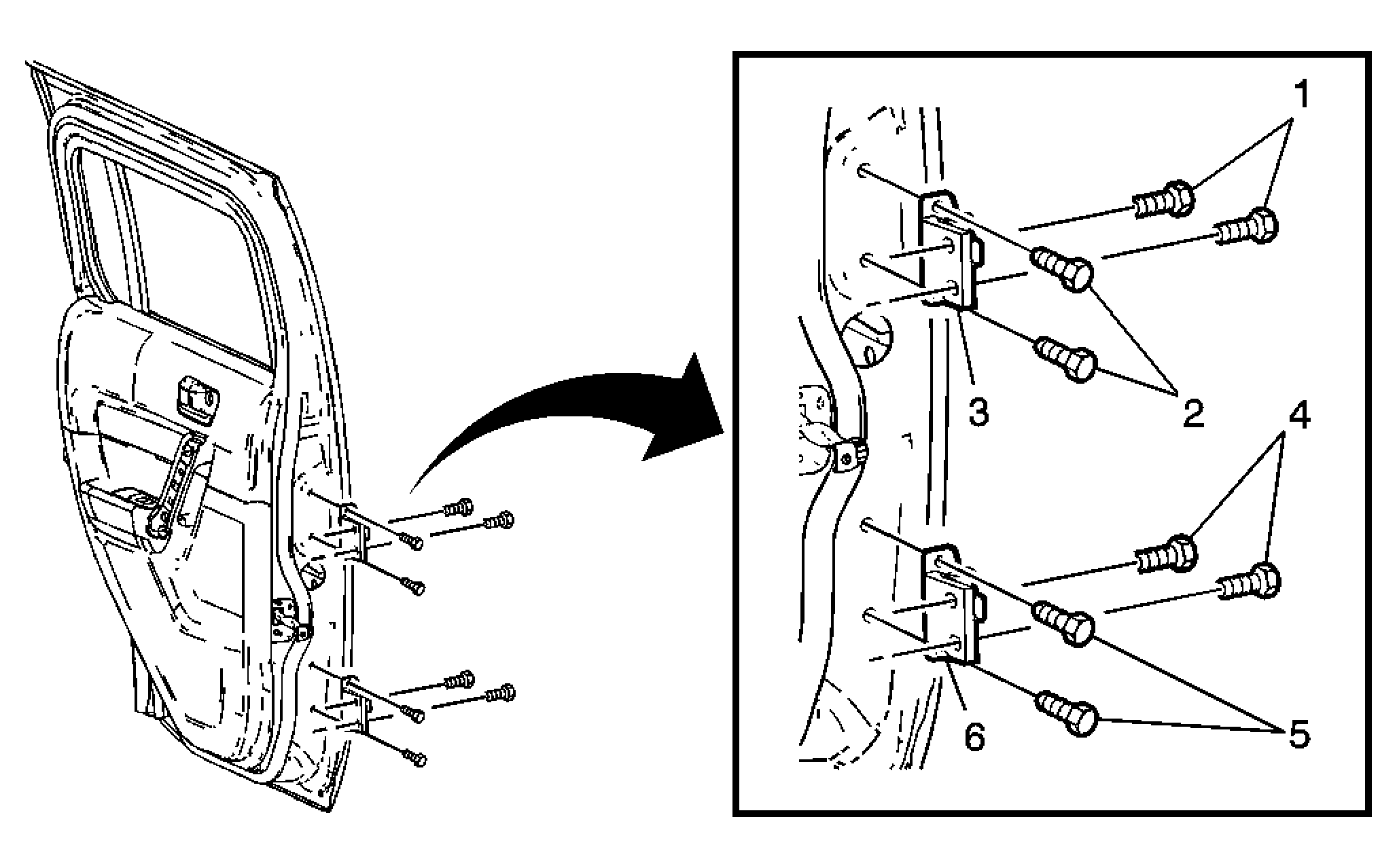

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
. |
|
| 1 | Bolt, Rear Side Door Upper Hinge to Body (Qty: 2) Tip: Support door before removing hinge bolts. Tighten: 27 N.m (20 lb ft) |
| 2 | Bolt, Rear Side Door Upper Hinge to Door (Qty: 2) Tighten: 27 N.m (20 lb ft) |
| 3 | Hinge, Rear Side Door Upper |
| 4 | Bolt, Rear Side Door Lower Hinge to Body (Qty: 2) Tighten: 27 N.m (20 lb ft) |
| 5 | Bolt, Rear Side Door Lower Hinge to Door (Qty: 2) Tighten: 27 N.m (20 lb ft) |
| 6 | Hinge, Rear Side Door Lower |
