Rear Door Strut Replacement

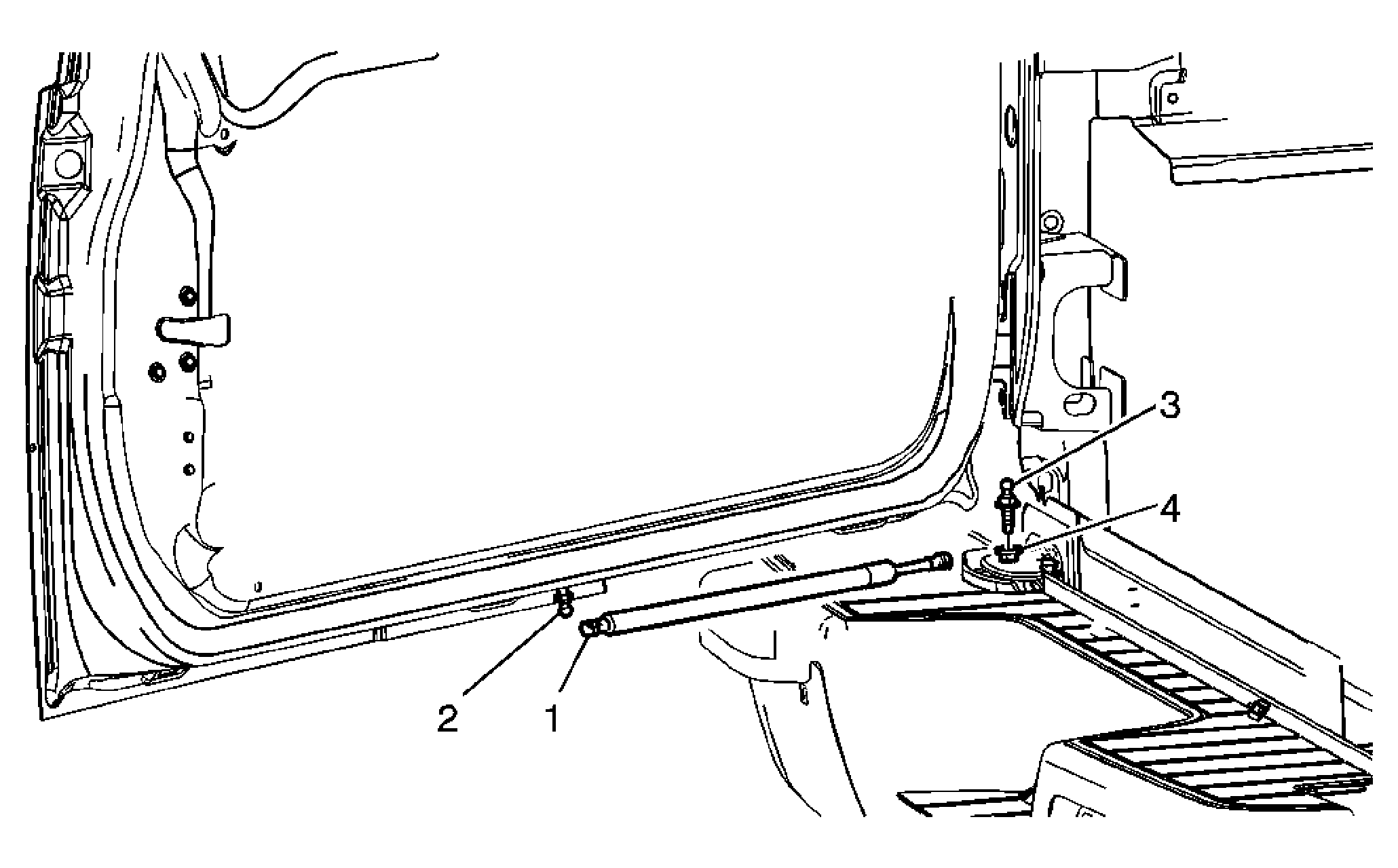

| Callout | Component Name |
|---|---|
| 1 | Rear Door Strut Rod Assembly
CAUTION:
When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
NOTE:
Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Tip: Remove the metal clip at the ends of the assist rod, then pull away from stud. |
| 2 | Strut Rod Body Side Stud
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (89 lb in) |
| 3 | Strut Rod Rear Door Side Stud |
| 4 | Strut Rod Stud Nut Tighten: 10 N.m (89 lb in) |
