Rear Door Hinge Replacement

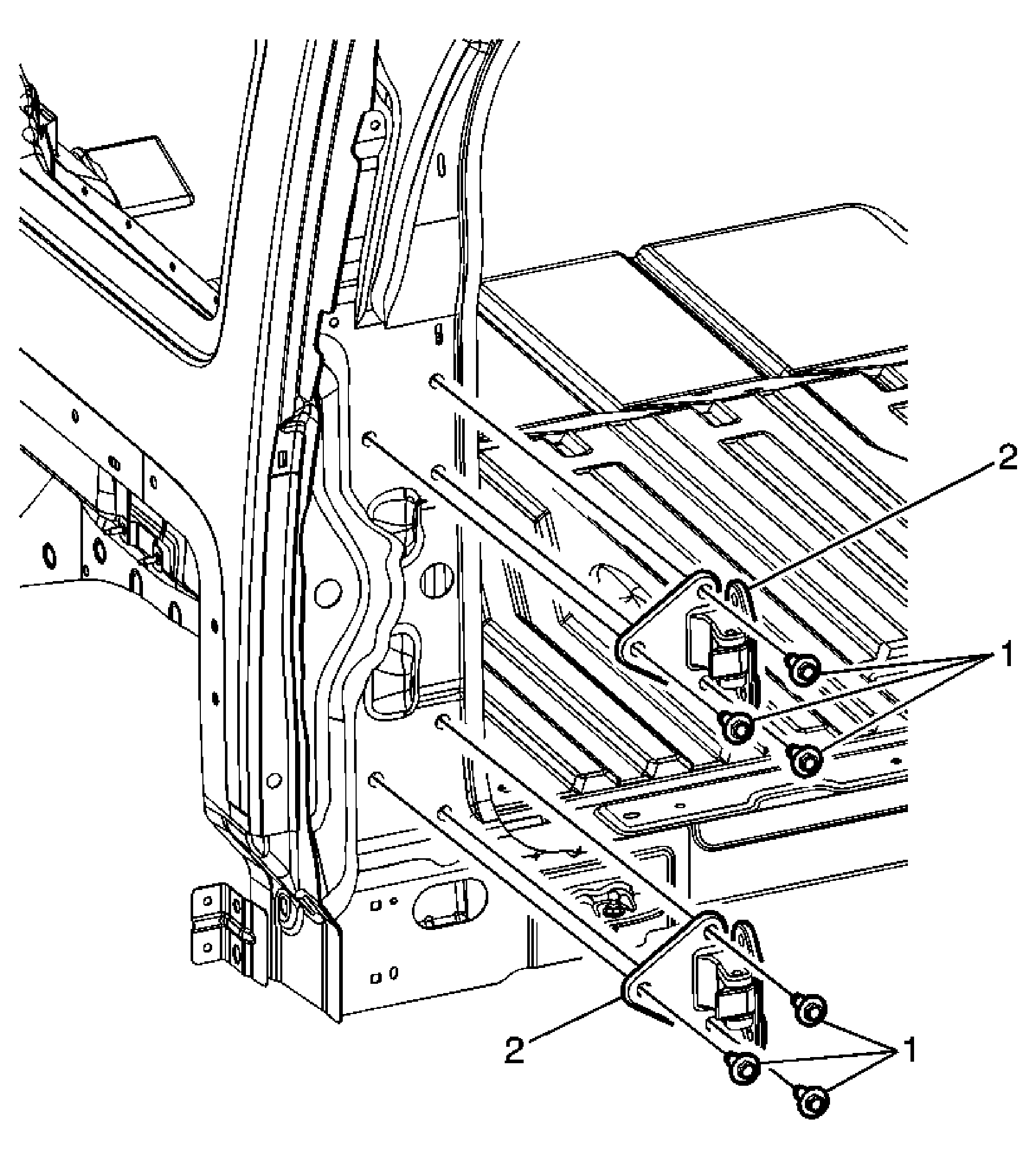

Fig 1: Rear Door Hinge

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Door Hinge Bolt (Qty: 6) NOTE: Refer to Fastener Notice . Tip: Replace only one hinge at a time. Tighten: 25 N.m (18 lb ft)
2	Rear Door Hinge
