Hood Strut Replacement

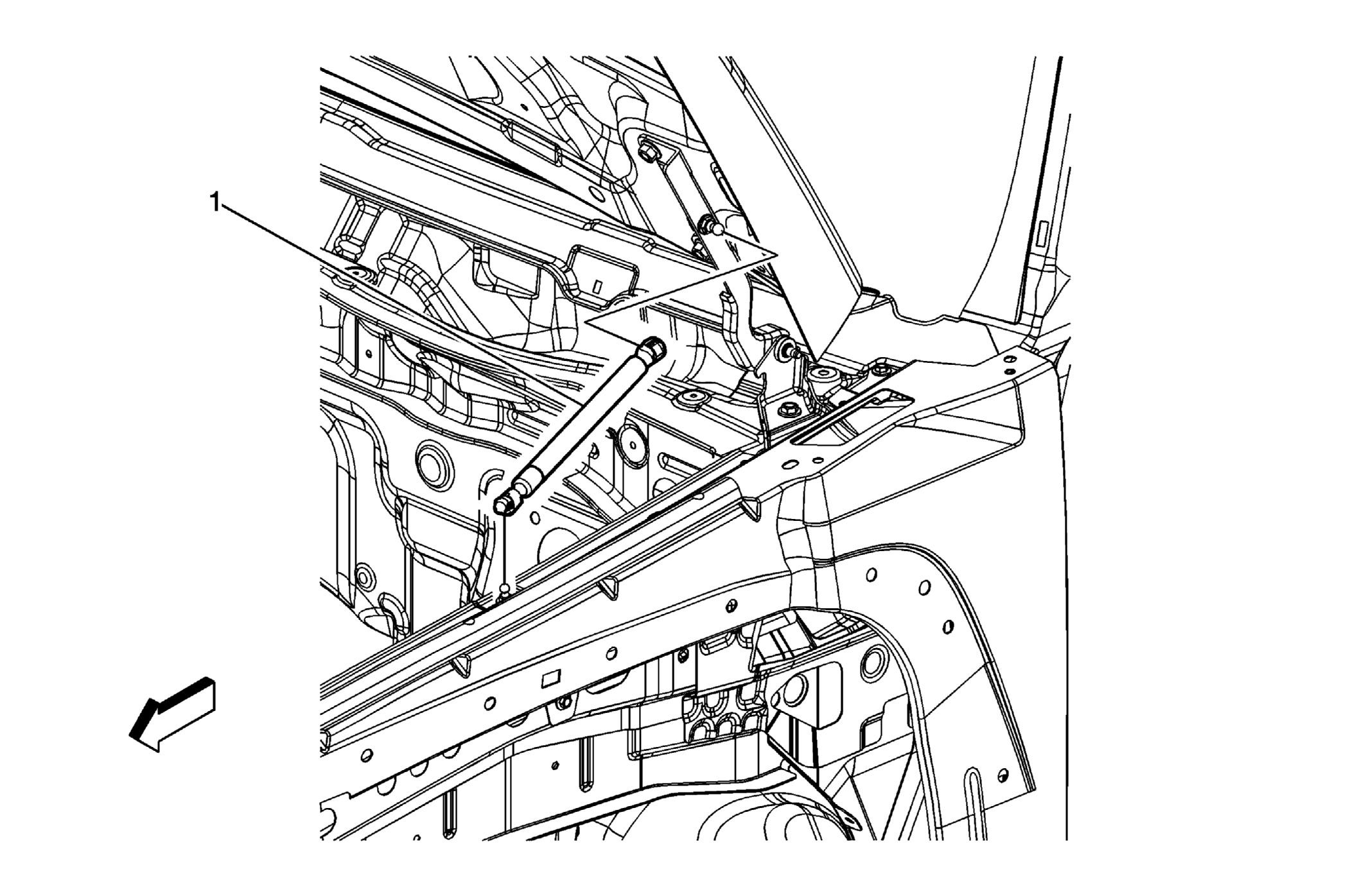

Fig 1: View Of Hood Strut

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Hood Strut Rod Tip: Use a small flat bladed screwdriver to disengage the locking tabs at each end of the strut.
