Front Side Door Hinge Replacement

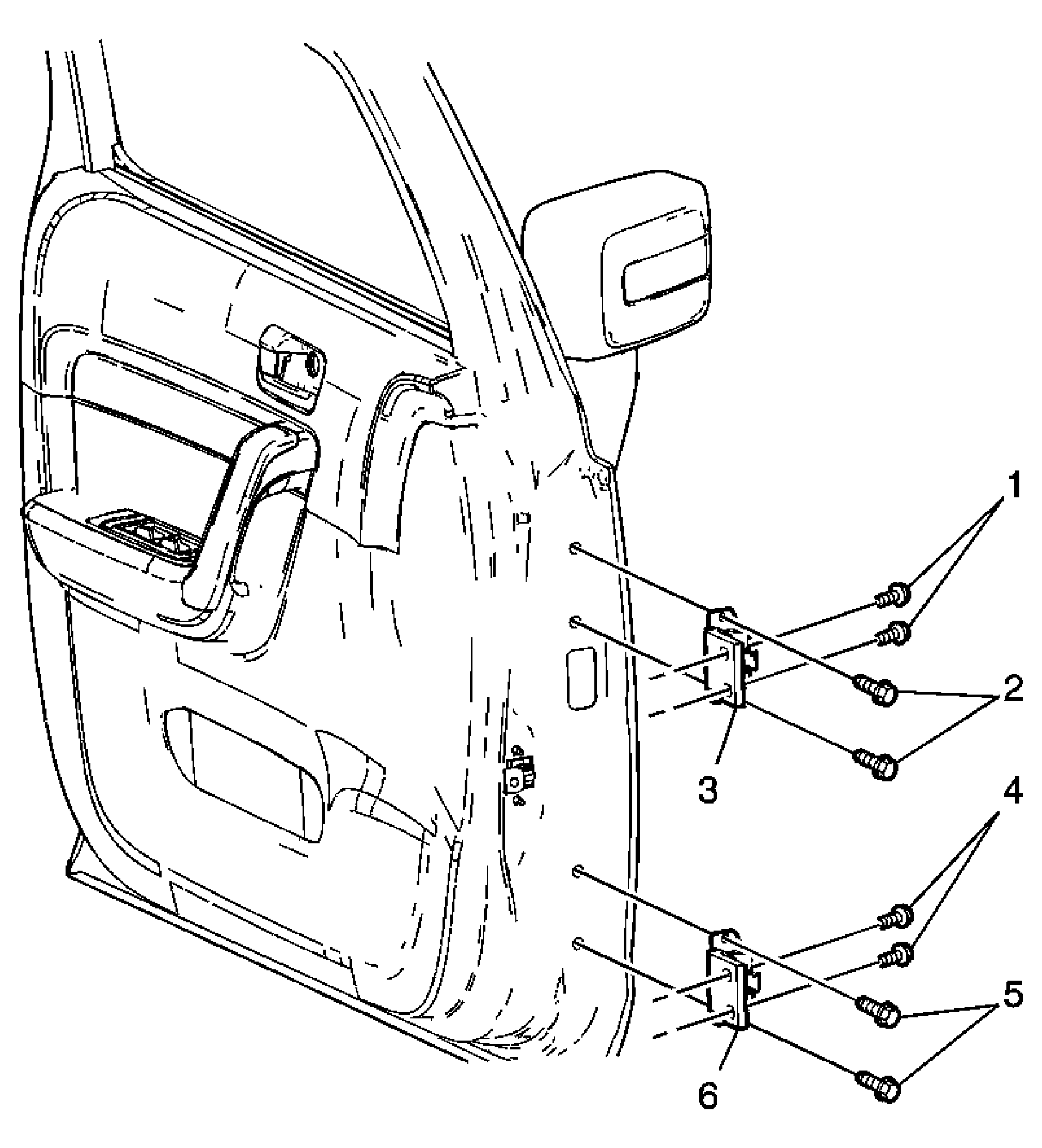

Fig 1: Front Side Door Hinge

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Bolt, Front Side Door Upper Hinge to Body (Qty: 2) Tip: Support door before removing hinge bolts. Tighten: 27 N.m (20 lb ft)
2	Bolt, Front Side Door Upper Hinge to Door (Qty: 2) Tighten: 27 N.m (20 lb ft)
3	Hinge, Front Side Door Upper
4	Bolt, Front Side Door Lower Hinge to Body (Qty: 2) Tighten: 27 N.m (20 lb ft)
5	Bolt, Front Side Door Lower Hinge to Door (Qty: 2) Tighten: 27 N.m (20 lb ft)
6	Hinge, Front Side Door Lower
