Front Side Door Check Link Replacement

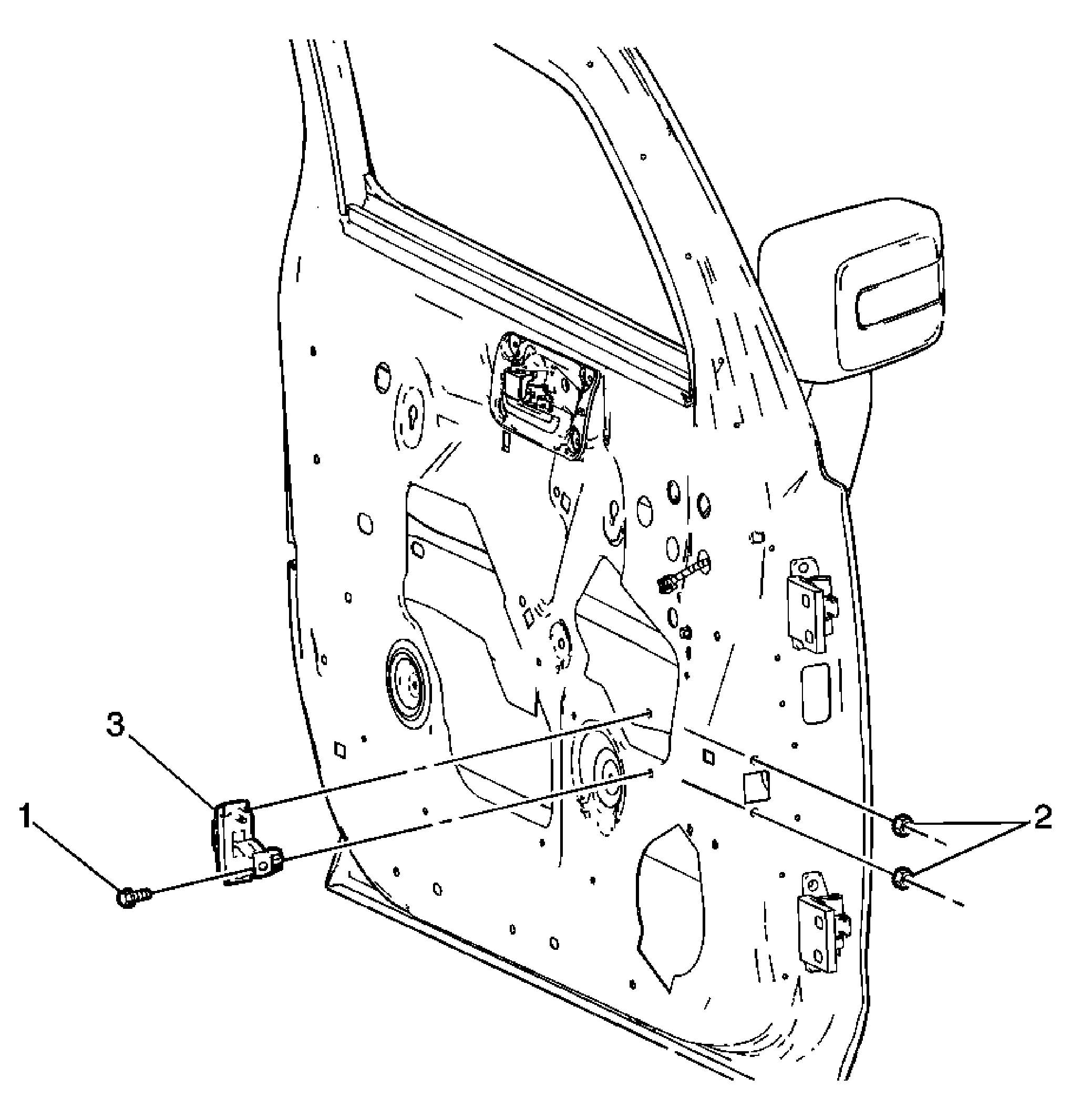

Fig 1: Front Side Door Check Link

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Move the window to the full up position.
1	Front Side Door Check Link Bolt Tighten: 25 N.m (18 lb ft)
2	Front Side Door Check Link Nut (Qty: 2) Tighten: 25 N.m (18 lb ft)
3	Front Side Door Check Link Assembly Tip: Remove the check link from the inside of the door.
