Instrument Panel Compartment Replacement (Left Hand Drive)

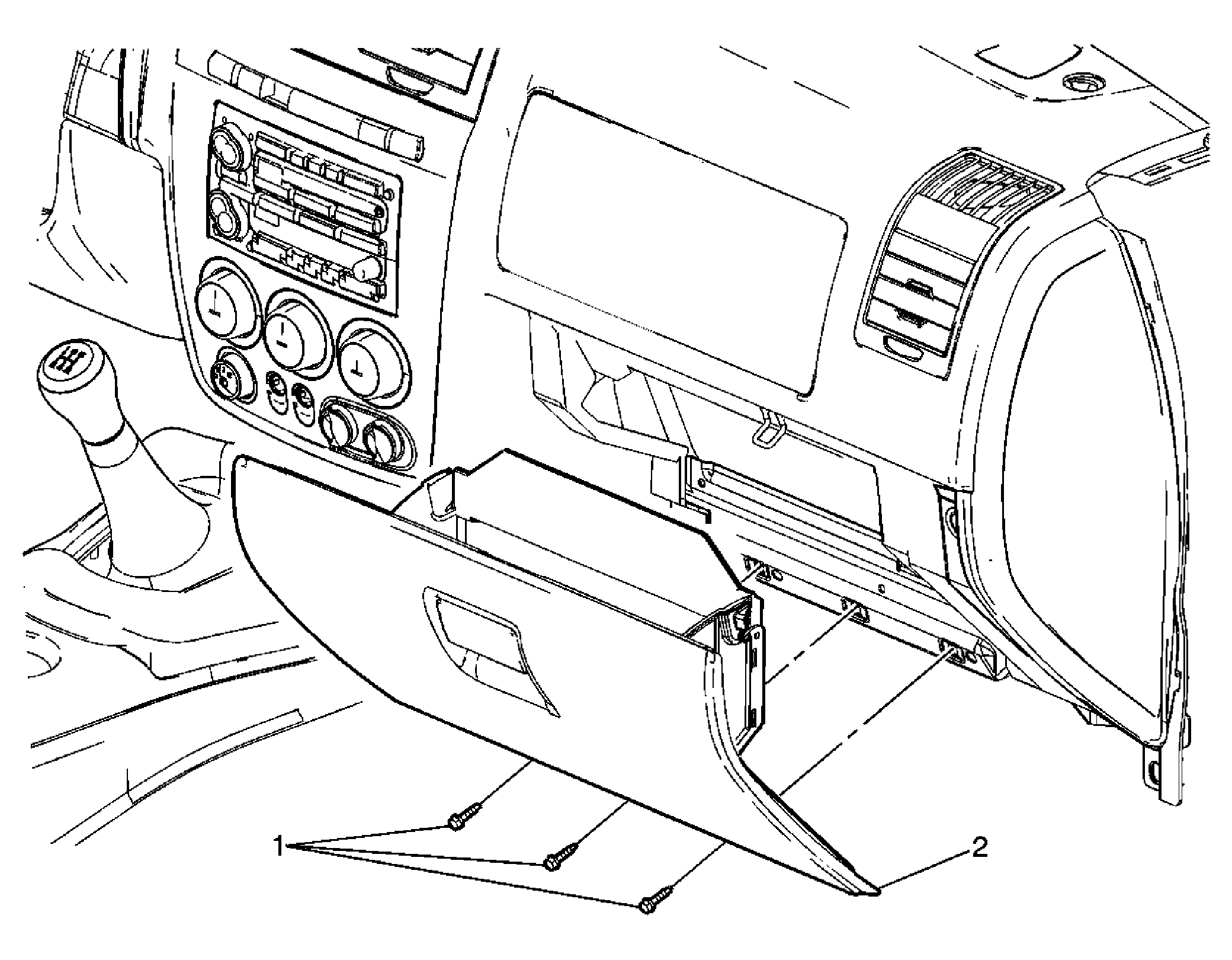

Fig 1: Instrument Panel Compartment Replacement (Left Hand Drive)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures:  Disconnect the instrument compartment dampener from the instrument compartment.
1	Instrument Panel Compartment Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten:  2 N.m (18 lb in)
2	Instrument Panel Compartment
