Installation Procedure

  1. Position the I/P carrier to the bulkhead.
  2. Position the HVAC control assembly cables through the I/P carrier.
    3. Fig 1: I/P Wire Harness
    GM1245594Courtesy of GENERAL MOTORS CORP.
  3. Position the I/P wire harness on the I/P carrier.

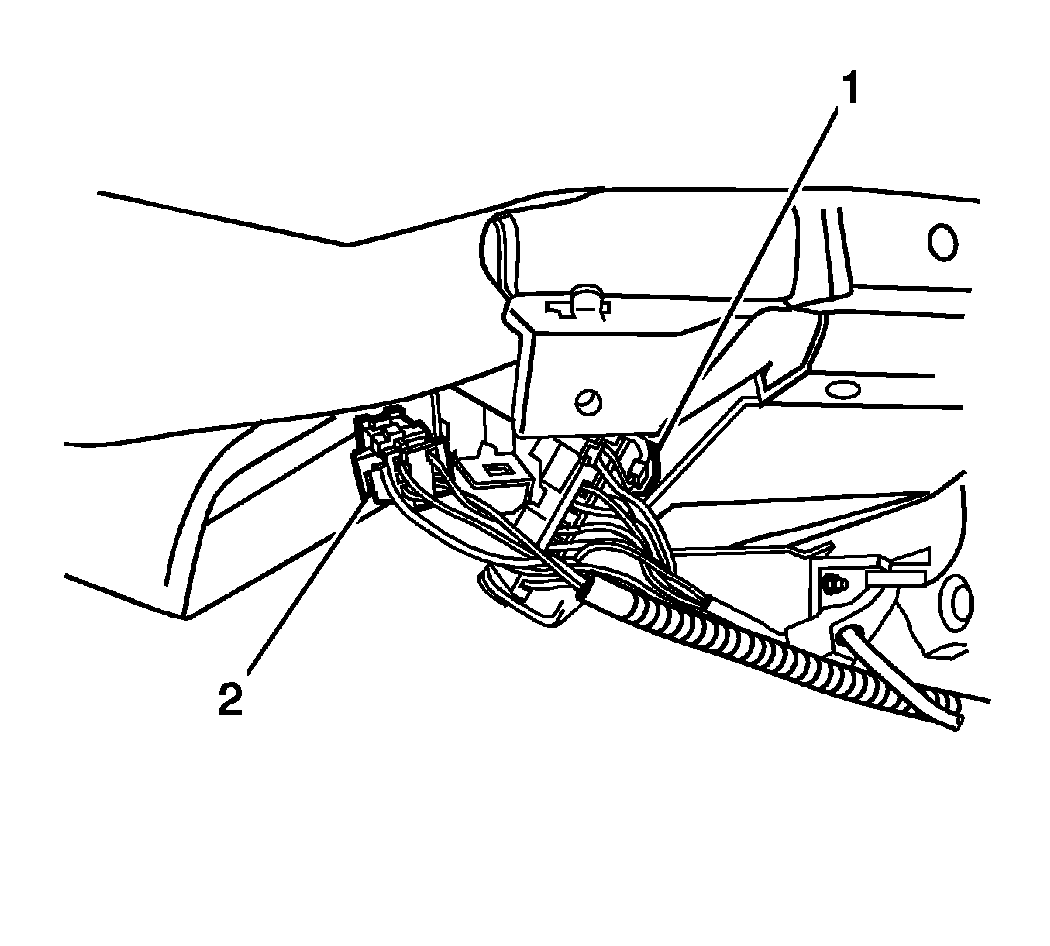

    4. Fig 2: View Of Steering Column & SIR Connector
    GM1355865Courtesy of GENERAL MOTORS CORP.
  4. Install the steering column (1) and SIR connector (2) to the I/P carrier.

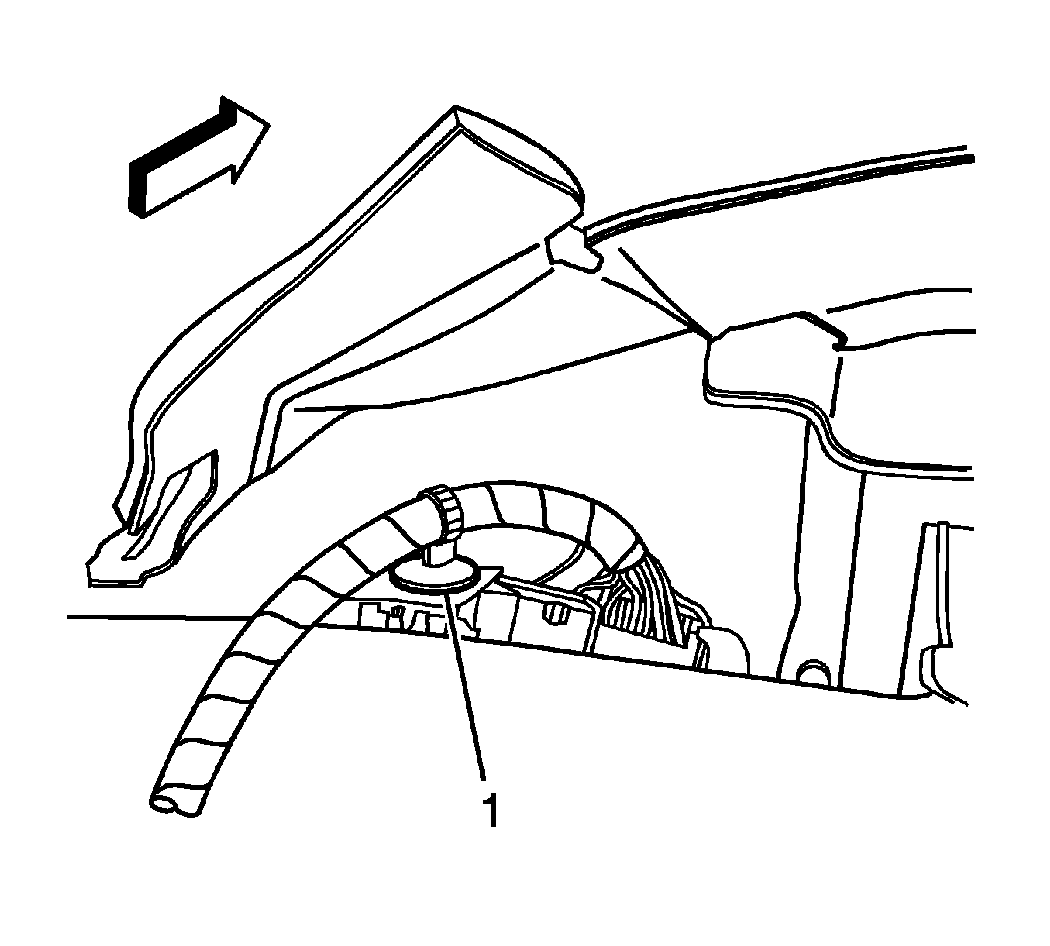

    5. Fig 3: I/P Harness Retainer - Near Steering Column Electrical Connector
    GM1355864Courtesy of GENERAL MOTORS CORP.
  5. If equipped with OnStar®, connect the connectors to the module.
  6. If replacing the I/P carrier, install the OnStar® module. Refer to Communication Interface Module Replacement .
  7. Located near the steering column electrical connector, install the I/P harness retainer (1) to the I/P carrier.

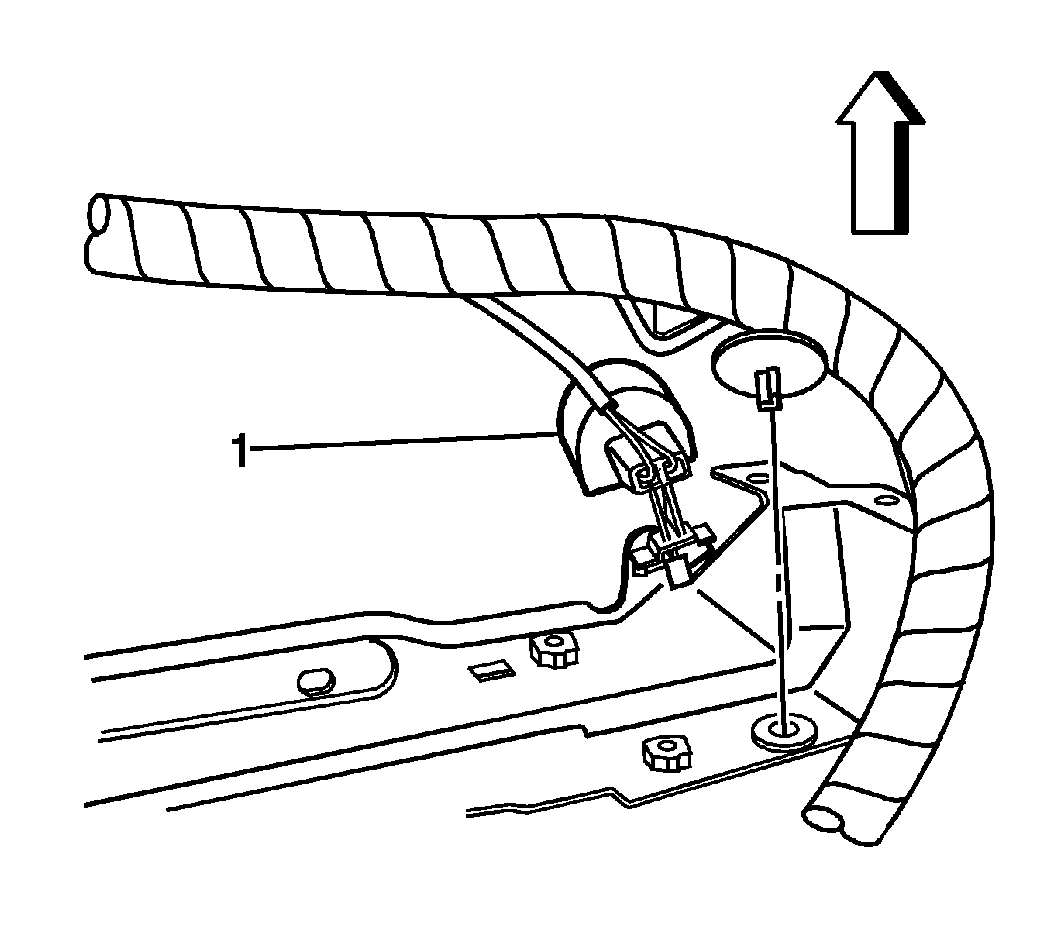

    8. Fig 4: View Of Right Courtesy Lamp
    GM1355866Courtesy of GENERAL MOTORS CORP.
  8. install the right courtesy lamp (1) to the I/P carrier.
  9. Install the I/P carrier to the bulkhead.

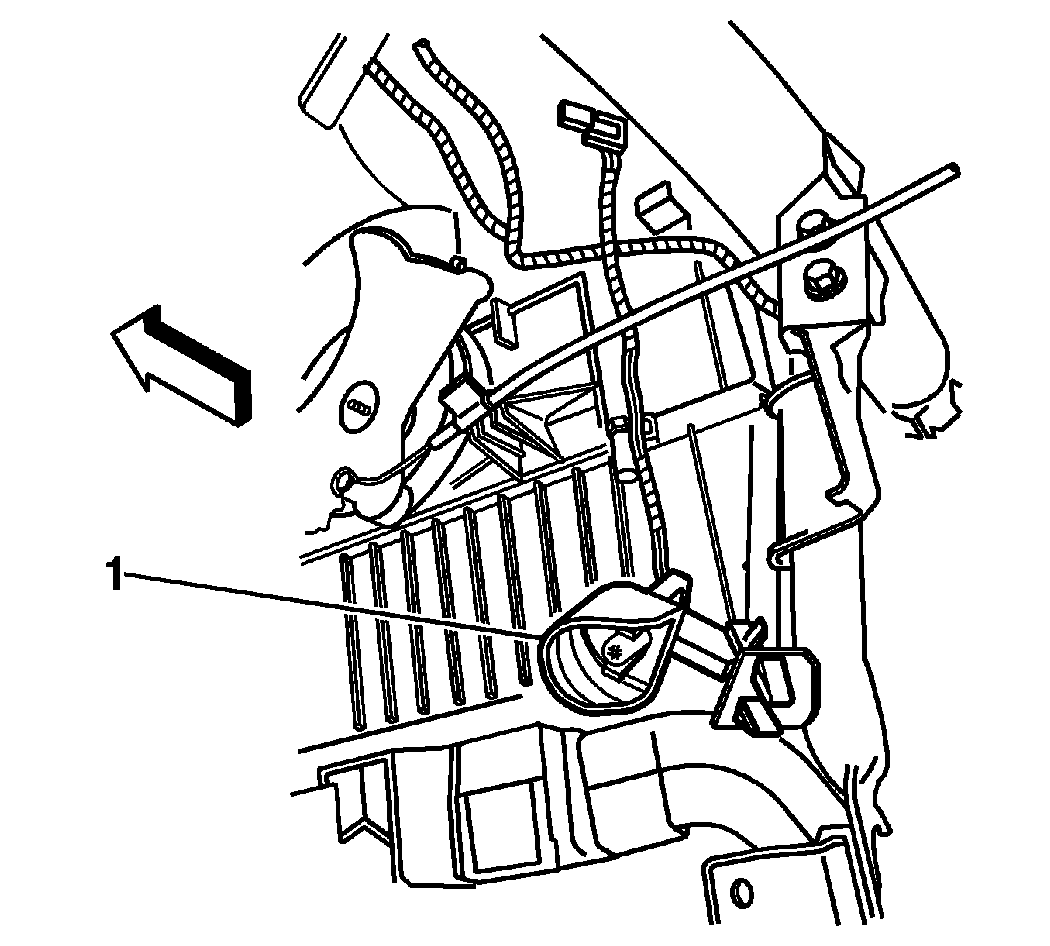

    10. Fig 5: View Of Left Courtesy Lamp
    GM1355848Courtesy of GENERAL MOTORS CORP.
  10. Install the left courtesy lamp (1) to the I/P carrier.

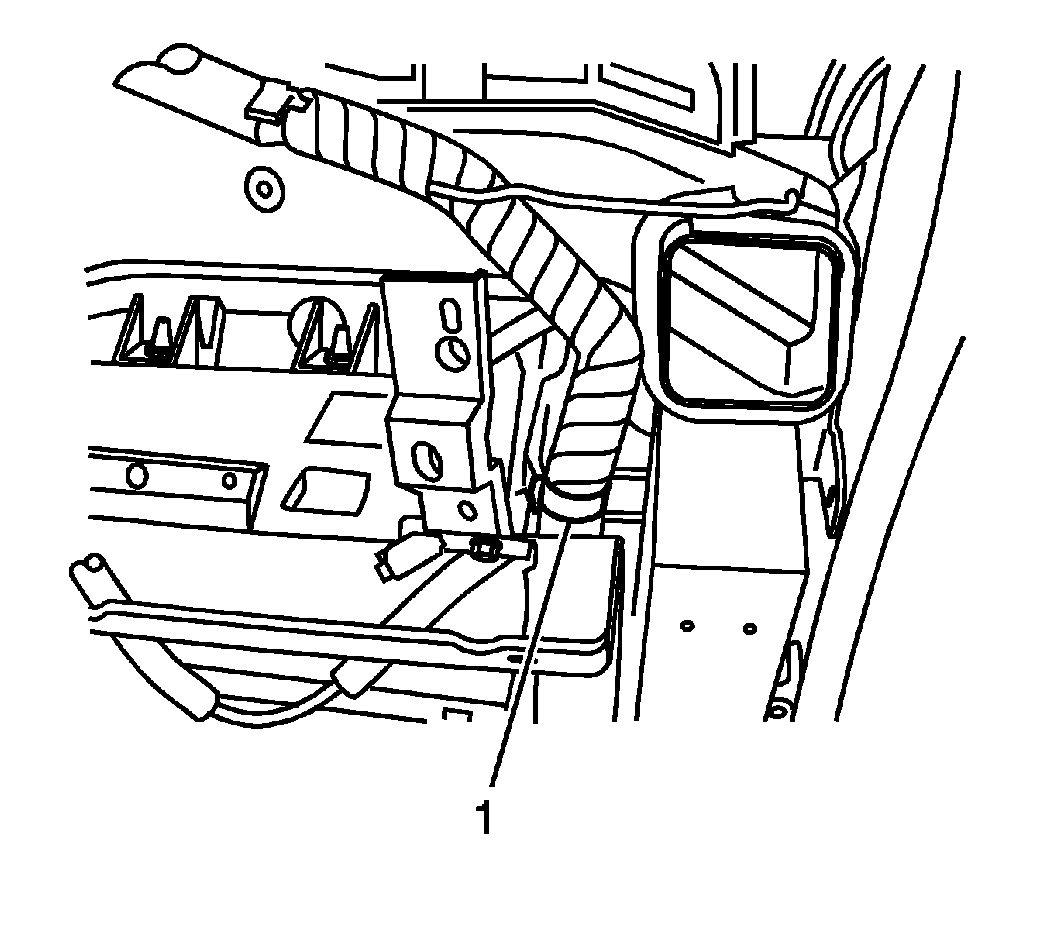

    11. Fig 6: I/P Harness Retainer - Near OnStar® Module
    GM1355861Courtesy of GENERAL MOTORS CORP.
  11. Located near the OnStar® module, install the I/P harness retainer (1) to the I/P carrier.
    12. Fig 7: I/P Harness Retainer - Near HVAC Blower Motor
    GM1356145Courtesy of GENERAL MOTORS CORP.
  12. Located near the HVAC blower motor, install the I/P harness retainer (1) to the I/P carrier.

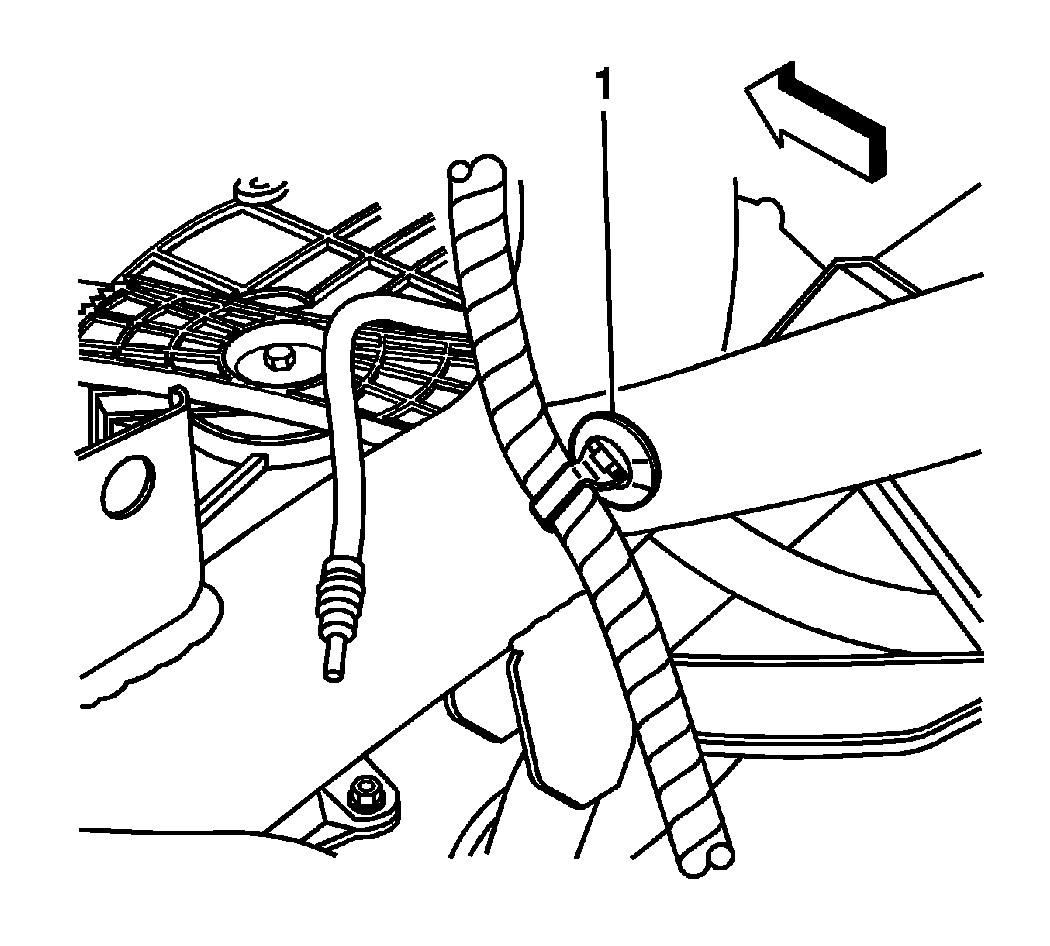

    13. Fig 8: I/P Harness Retainer - Near Radio
    GM1355858Courtesy of GENERAL MOTORS CORP.
  13. Located near the radio, install the I/P harness retainer (1) to the I/P carrier.

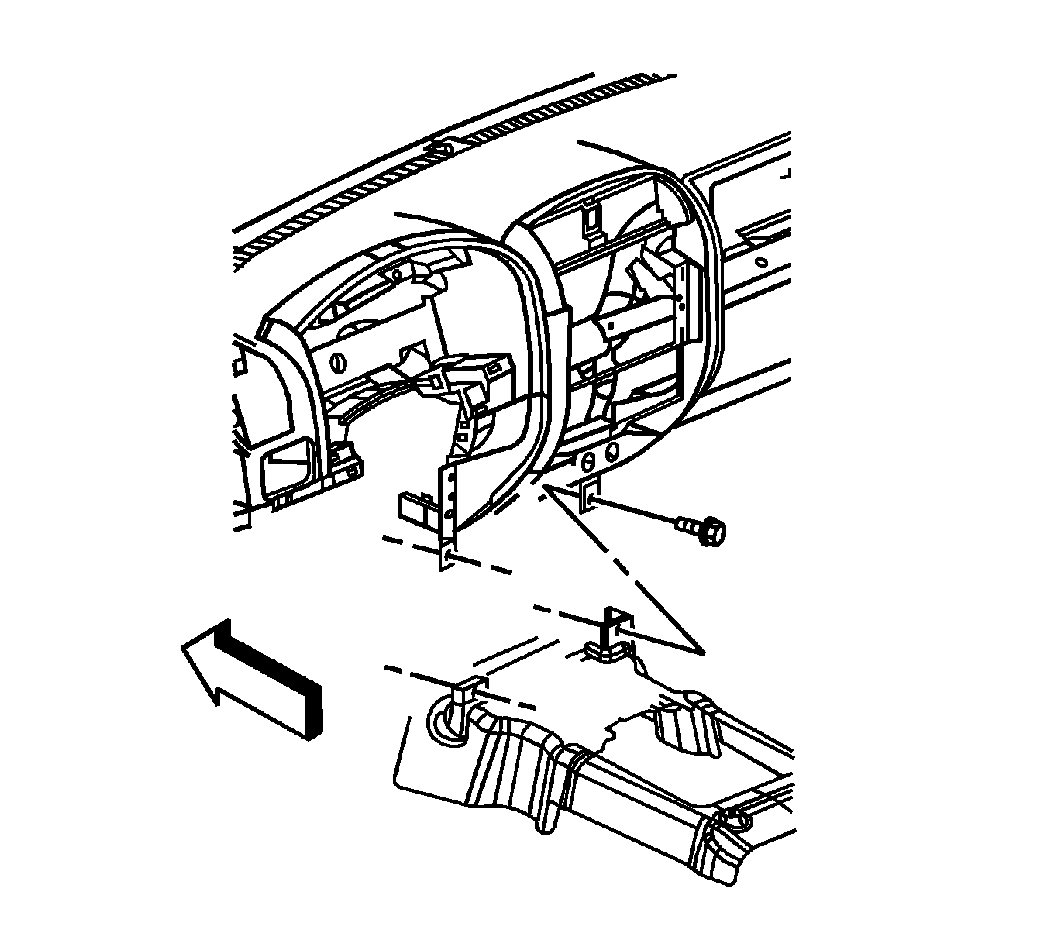

    14. Fig 9: View Of Lower Center Carrier Retaining Bolts
    GM1276405Courtesy of GENERAL MOTORS CORP.
  14. Partially install the 2 lower center carrier retaining bolts.

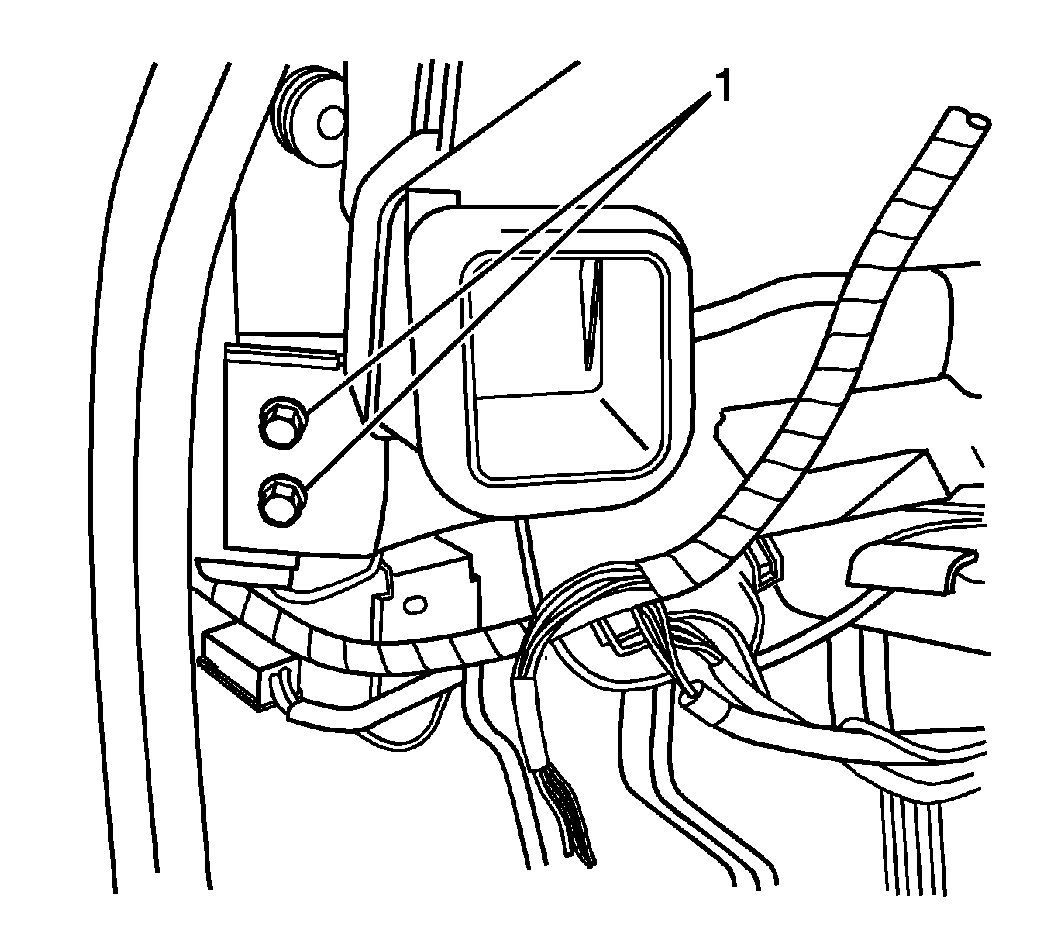

    15. Fig 10: View Of Left I/P Carrier Retaining Bolts
    GM1355854Courtesy of GENERAL MOTORS CORP.
  15. Partially install the left 2 I/P carrier retaining bolts (1).

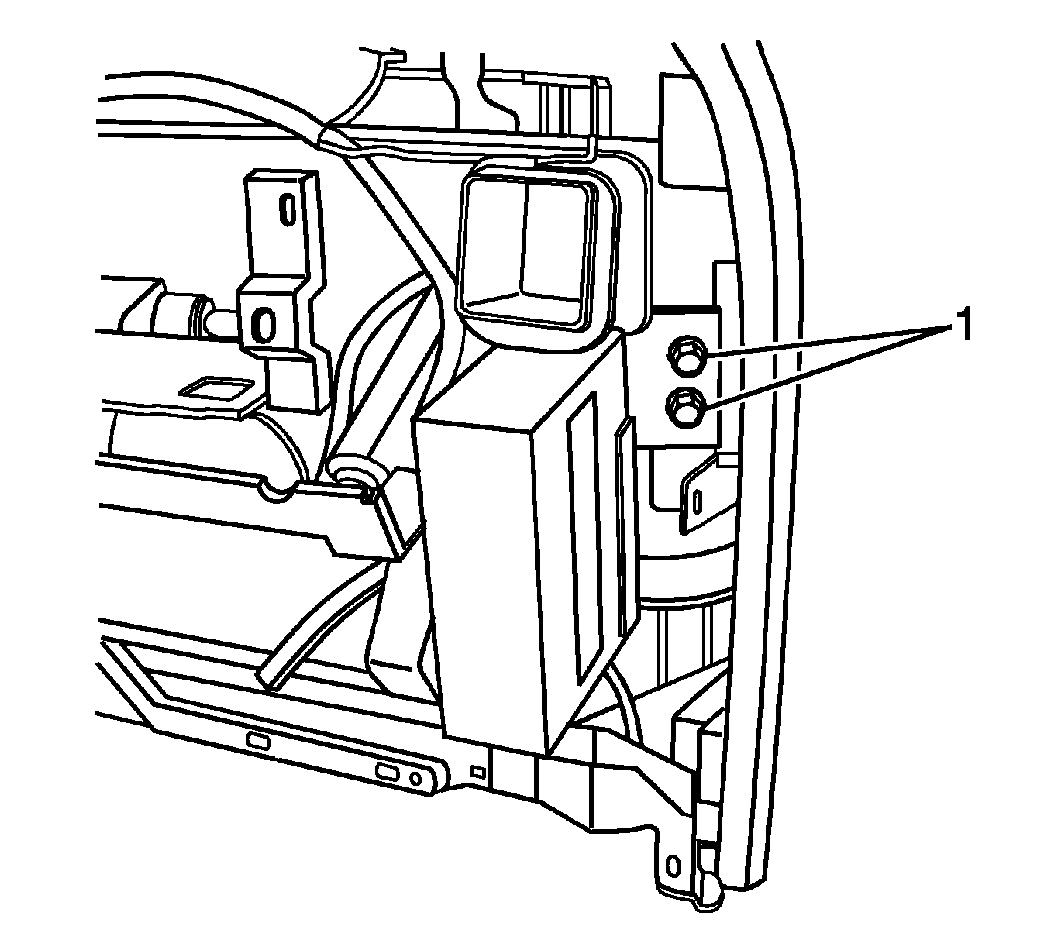

    16. Fig 11: View Of Right Carrier Retaining Bolts
    GM1355857Courtesy of GENERAL MOTORS CORP.
  16. Partially install the right 2 carrier retaining bolts (1).

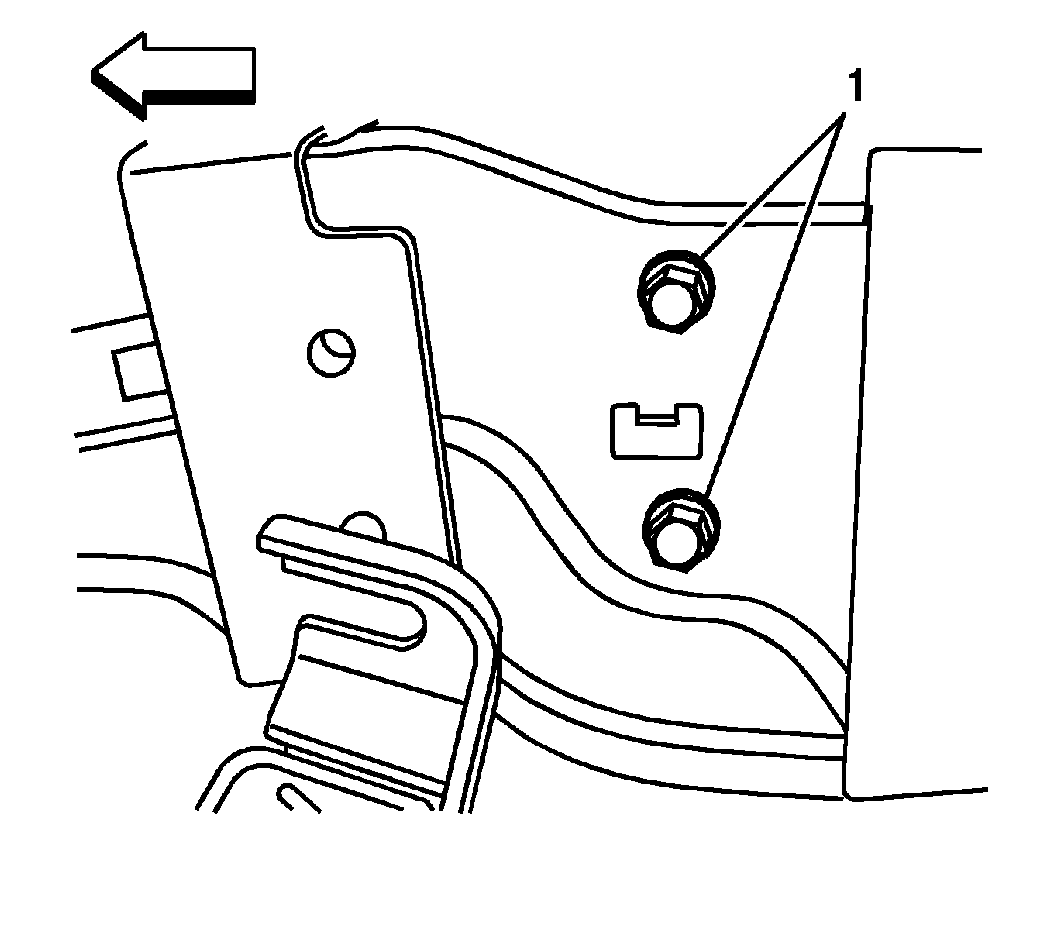

    17. Fig 12: View Of I/P Carrier Retaining Bolts
    GM1355862Courtesy of GENERAL MOTORS CORP.
  17. Partially install the 2 bolts (1) retaining the I/P carrier to the brake pedal/steering column support bracket.
    18. NOTE: Refer to Fastener Notice .
  18. Install the 2 center carrier retaining bolts.

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

  19. Install the remaining carrier retaining bolts.

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).

  20. Install the steering column. Refer to Steering Column Replacement .
  21. Install the I/P. Refer to Instrument Panel Assembly Replacement (Left Hand Drive)  or Instrument Panel Assembly Replacement (Right Hand Drive) .
