Front Floor Console Compartment Door Hinge Replacement

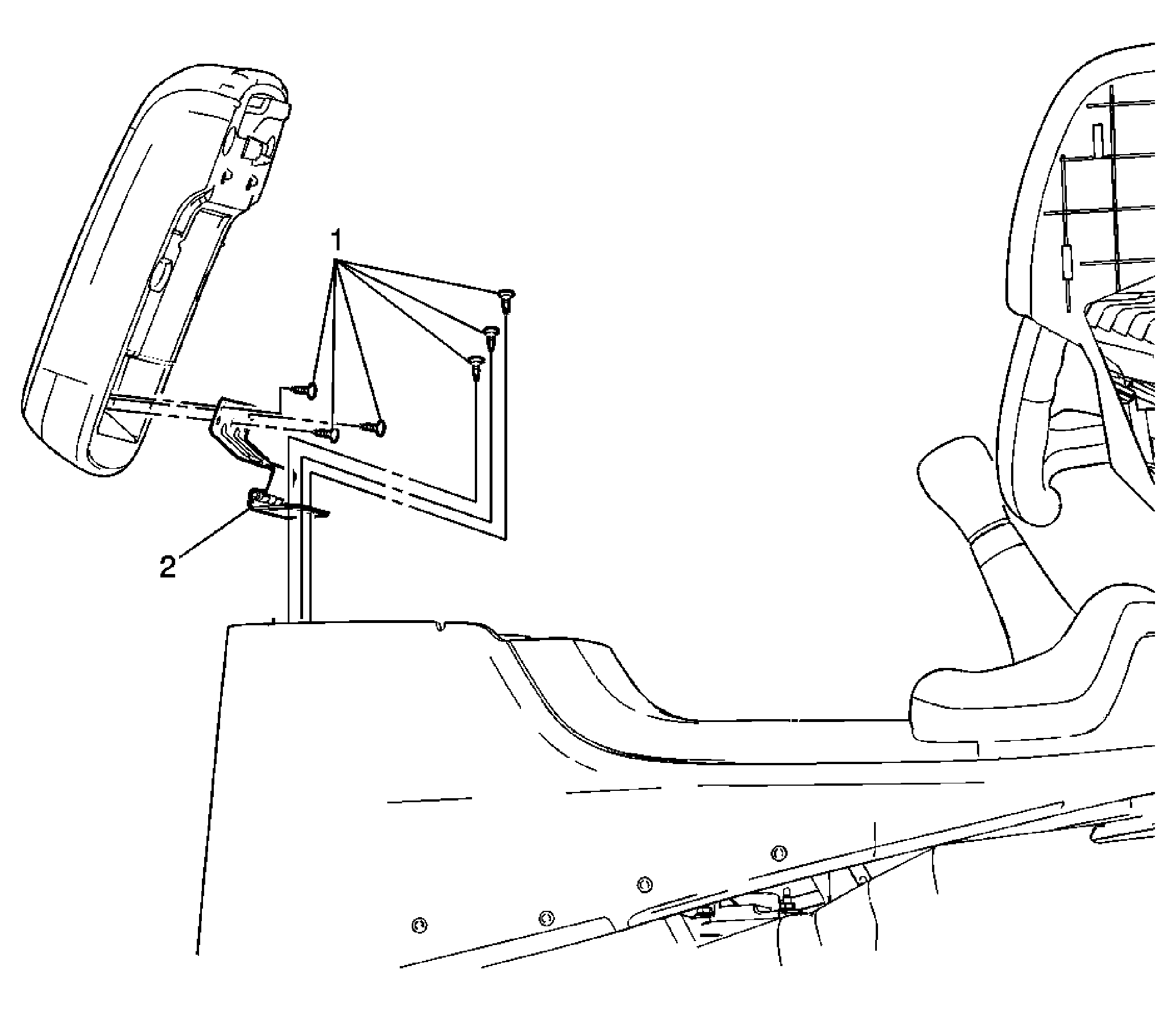

Fig 1: Console Compartment Door Hinge Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Console Door Hinge Screws (Qty: 6) NOTE: Refer to Fastener Notice . Tighten::  2 N.m (18 lb in)
2	Console Door Hinge Assembly
