Radiator Grille Reinforcement Support Replacement

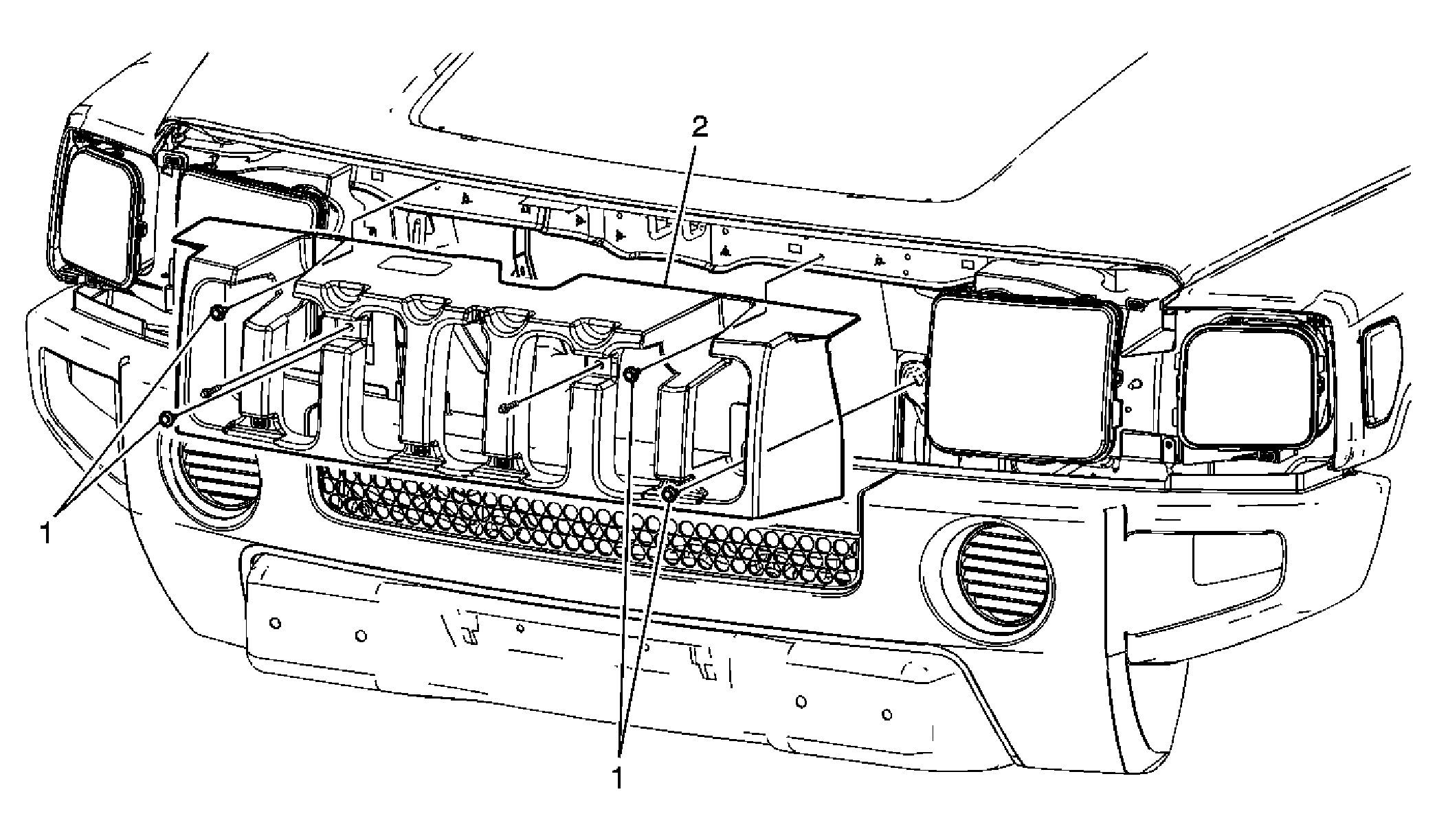

Fig 1: Radiator Grille Reinforcement Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front grille guard/brush guard (if equipped). Refer to Grille Guard/Brush Guard Replacement (Base) or Grille Guard/Brush Guard Replacement (H3X) . Remove the front radiator grille. Refer to Grille Replacement .
1	Bolts, Radiator Grille Support (Qty: 4) Tighten: 9 N.m (27 lb in)
2	Support, Radiator Grille

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the front grille guard/brush guard (if equipped). Refer to Grille Guard/Brush Guard Replacement (Base) or Grille Guard/Brush Guard Replacement (H3X) .
Remove the front radiator grille. Refer to Grille Replacement .

Bolts, Radiator Grille Support (Qty: 4)

Tighten: 9 N.m (27 lb in)

Support, Radiator Grille
