Transfer Case Control Schematics

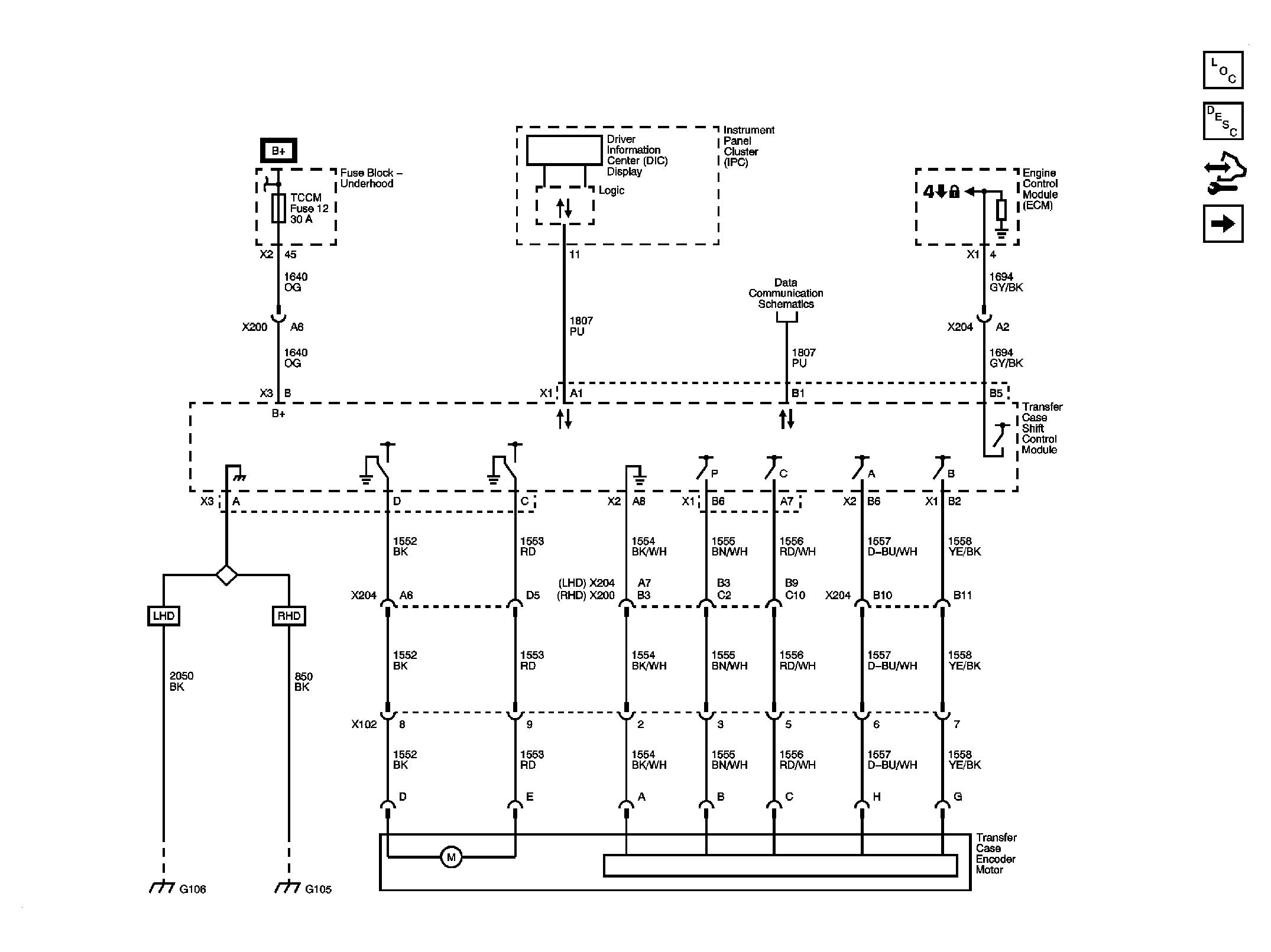

Fig 1: Power, Ground, Serial Data, and Front Axle Controls

GM1911844

Courtesy of GENERAL MOTORS CORP.

Fig 2: Shift Controls

GM1911847

Courtesy of GENERAL MOTORS CORP.
