Cable Installation - Transaxle End

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    2. IMPORTANT: Ensure the range selector cable is routed exactly as originally positioned in the vehicle to avoid coming into contact with potential hazards such as hot, sharp, and moving objects.
    Fig 1: Range Selector Cable & Range Selector Cable Bracket
    GM1900891Courtesy of GENERAL MOTORS CORP.
  2. Install the range selector cable (2) to the range selector cable bracket. Ensure the range selector cable retaining tabs fully engage the range selector cable bracket.
  3. Install the retainer (1) to the range selector cable (2).
  4. Connect the range selector cable end (3) to the transaxle range switch lever.
    5. Fig 2: Heat Shield Bolts
    GM1900888Courtesy of GENERAL MOTORS CORP.
  5. Install the heat shield (2).
    6. NOTE: Refer to Fastener Notice .
  6. Install the heat shield bolts (1).

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

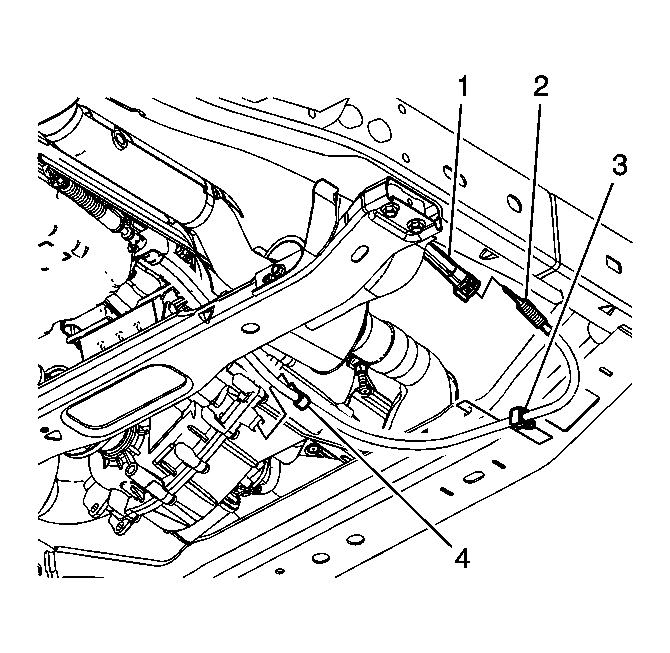

    7. Fig 3: Range Selector Cable Retainer & Transfer Case
    GM1900890Courtesy of GENERAL MOTORS CORP.
  7. Install the range selector cable retainer (4) to the transfer case.

  8. Install the range selector cable retainer (3) to the frame.
