Installation Procedure

Fig 1: View Of Output Shaft

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: It is important to note that the input shaft may need a light tap to fully seat into position. If the input shaft is not completely engaged, the output shaft to input carrier retainer (661) will not seat.

Install the output shaft (687).

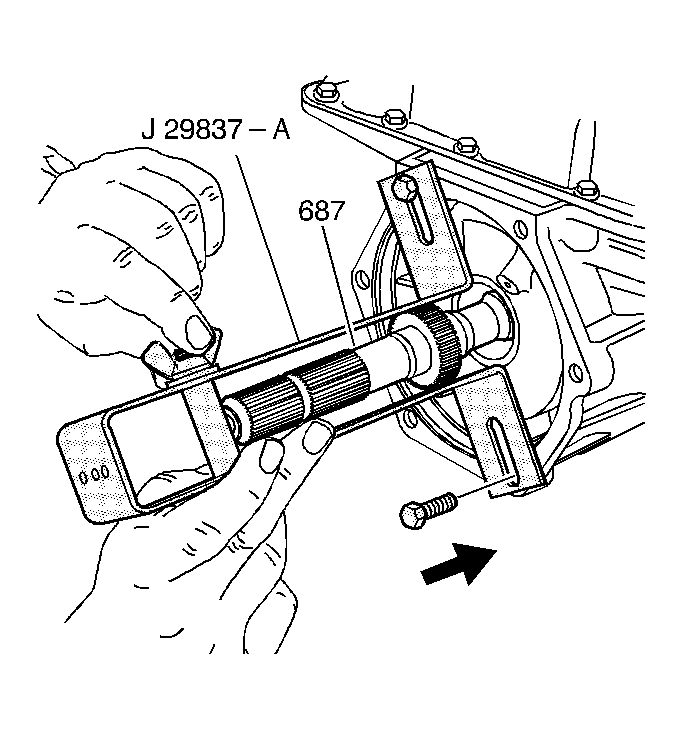

Fig 2: Installing J 29837-A

Courtesy of GENERAL MOTORS CORP.

Install the J 29837-A . See Special Tools .
