SIR Schematics

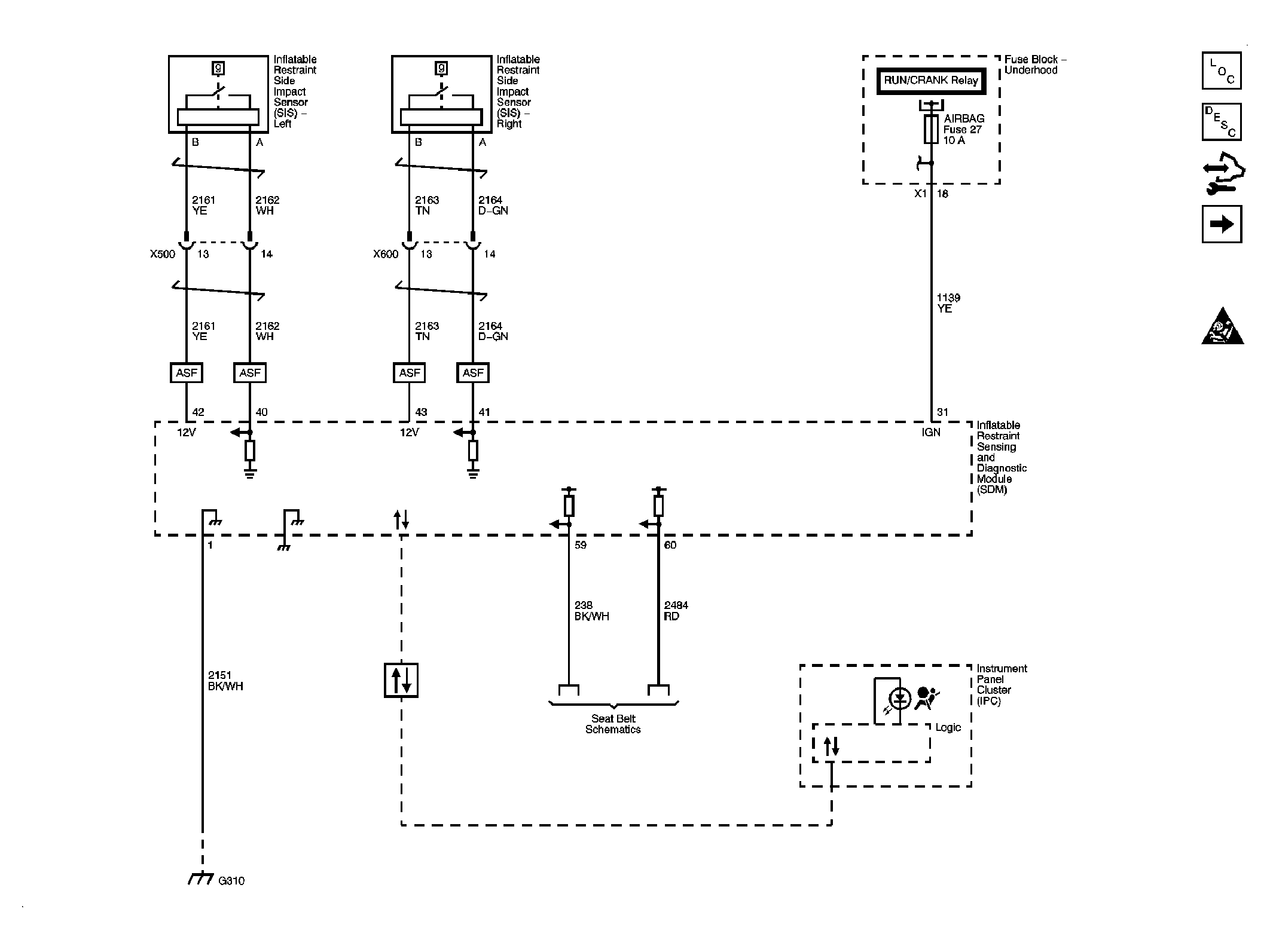

Fig 1: Module Power, Ground, Serial Data, Impact Sensors, and Indicators
GM1912002Courtesy of GENERAL MOTORS CORP.

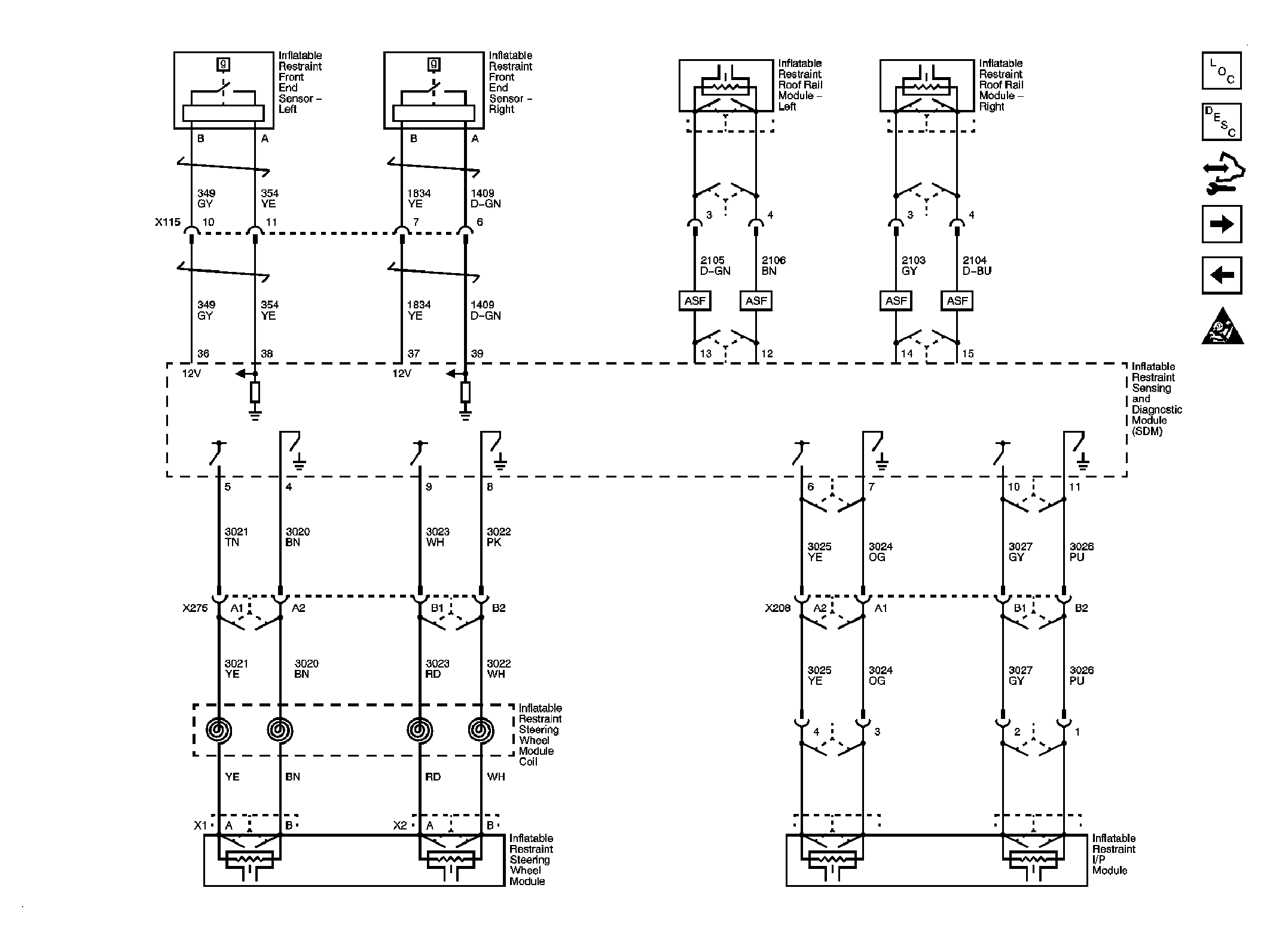

Fig 2: Inflator Modules
GM1912003Courtesy of GENERAL MOTORS CORP.

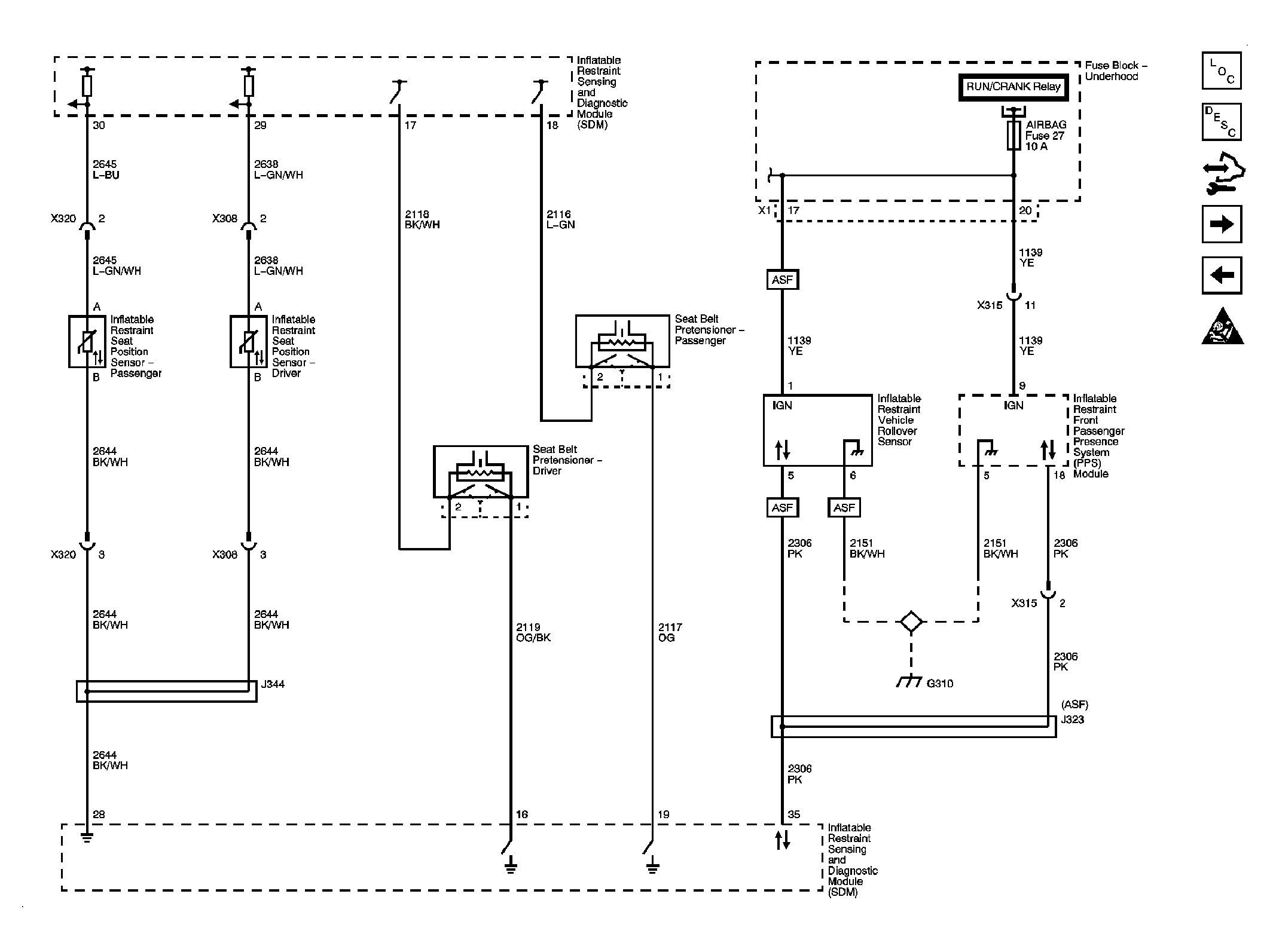

Fig 3: Seat Position and Passenger Presence - 1 of 2
GM1962231Courtesy of GENERAL MOTORS CORP.

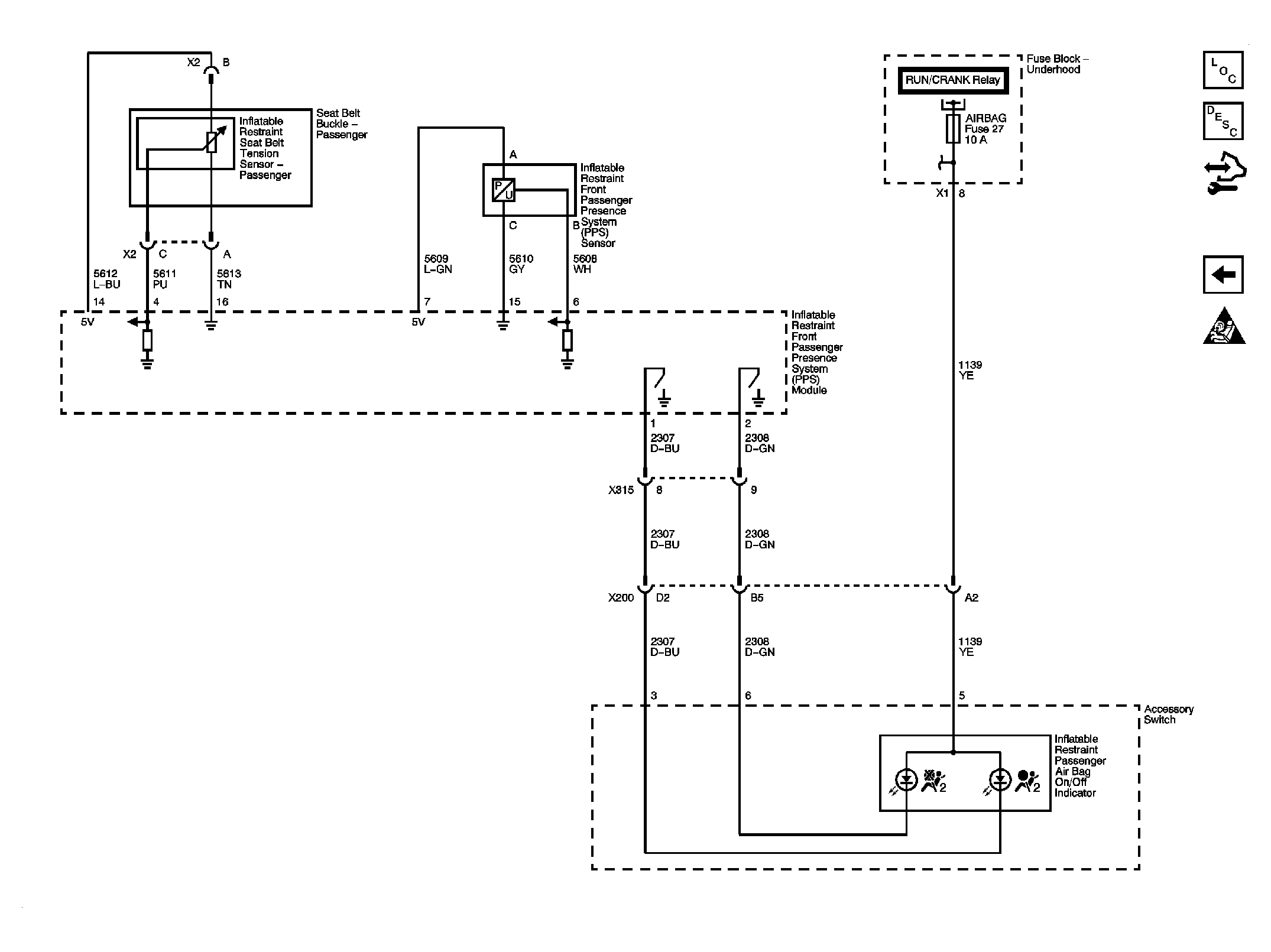

Fig 4: Passenger Presence - 2 of 2
GM1912004Courtesy of GENERAL MOTORS CORP.
