Inflatable Restraint Vehicle Rollover Sensor Replacement

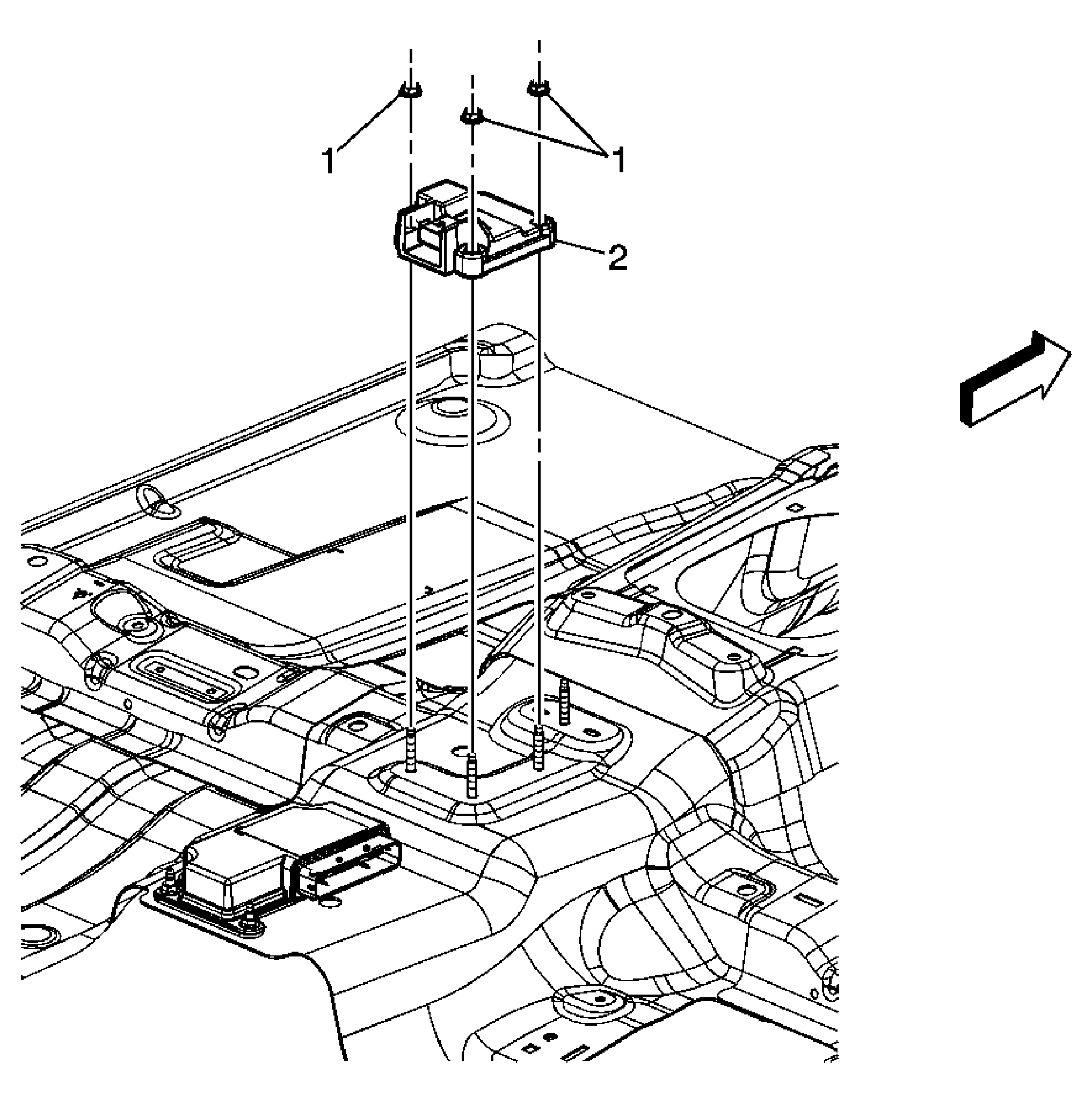

Fig 1: Identifying Inflatable Restraint Vehicle Rollover Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to SIR Disabling and Enabling . Failure to observe the correct procedure could cause deployment of the SIR components, personal injury, or unnecessary SIR system repairs. NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR. Refer to SIR Disabling and Enabling . Remove the center console. Refer to Console Replacement (Left Hand Drive) or Console Replacement (Right Hand Drive) .
1	Nut, Inflatable Restraint Vehicle Rollover Sensor (Qty: 4) Tighten: 10 N.m (89 lb in)
2	Sensor Assembly, Inflatable Restraint Vehicle Rollover

Callout

Component Name

CAUTION: When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to SIR Disabling and Enabling . Failure to observe the correct procedure could cause deployment of the SIR components, personal injury, or unnecessary SIR system repairs.

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Disable the SIR. Refer to SIR Disabling and Enabling .
Remove the center console. Refer to Console Replacement (Left Hand Drive) or Console Replacement (Right Hand Drive) .

Nut, Inflatable Restraint Vehicle Rollover Sensor (Qty: 4)

Tighten: 10 N.m (89 lb in)

Sensor Assembly, Inflatable Restraint Vehicle Rollover
