Starting and Charging Schematics

Fig 1: Starting - MA5

GM1911872

Courtesy of GENERAL MOTORS CORP.

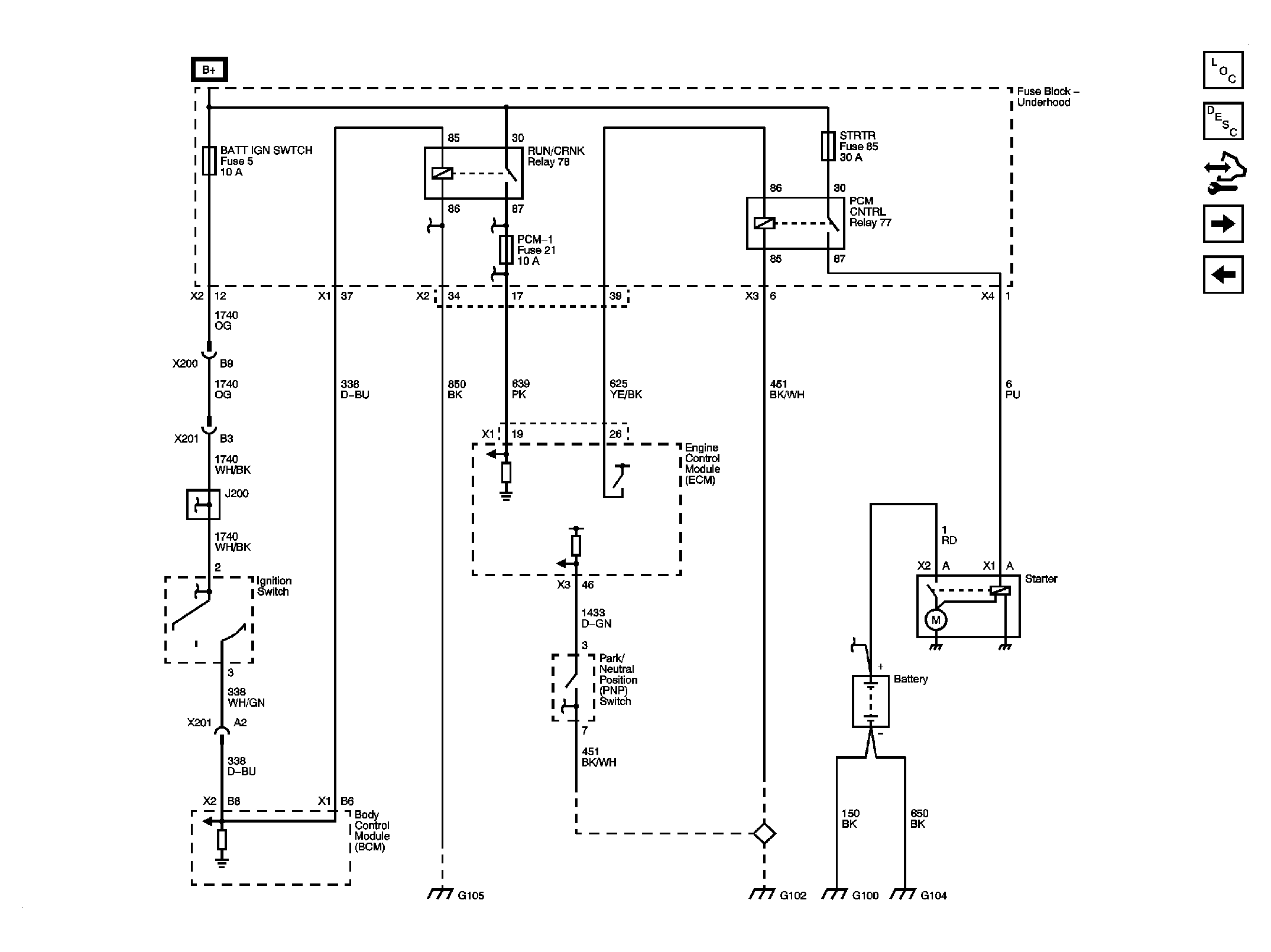

Fig 2: Starting - M30

GM1911874

Courtesy of GENERAL MOTORS CORP.

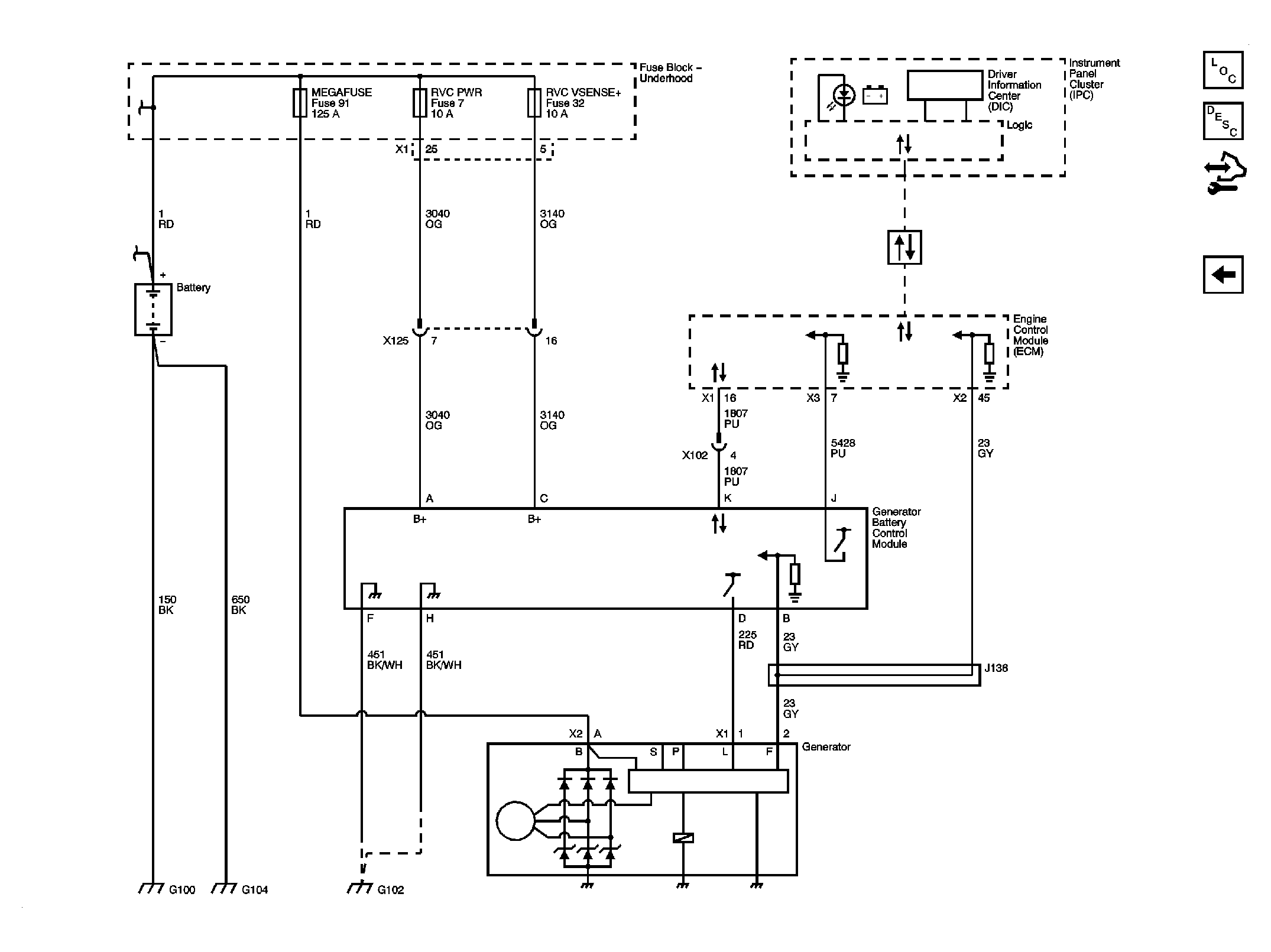

Fig 3: Charging

GM1911877

Courtesy of GENERAL MOTORS CORP.
