Instrument Panel Outer Trim Cover Replacement - Right Side (Right Hand Drive)

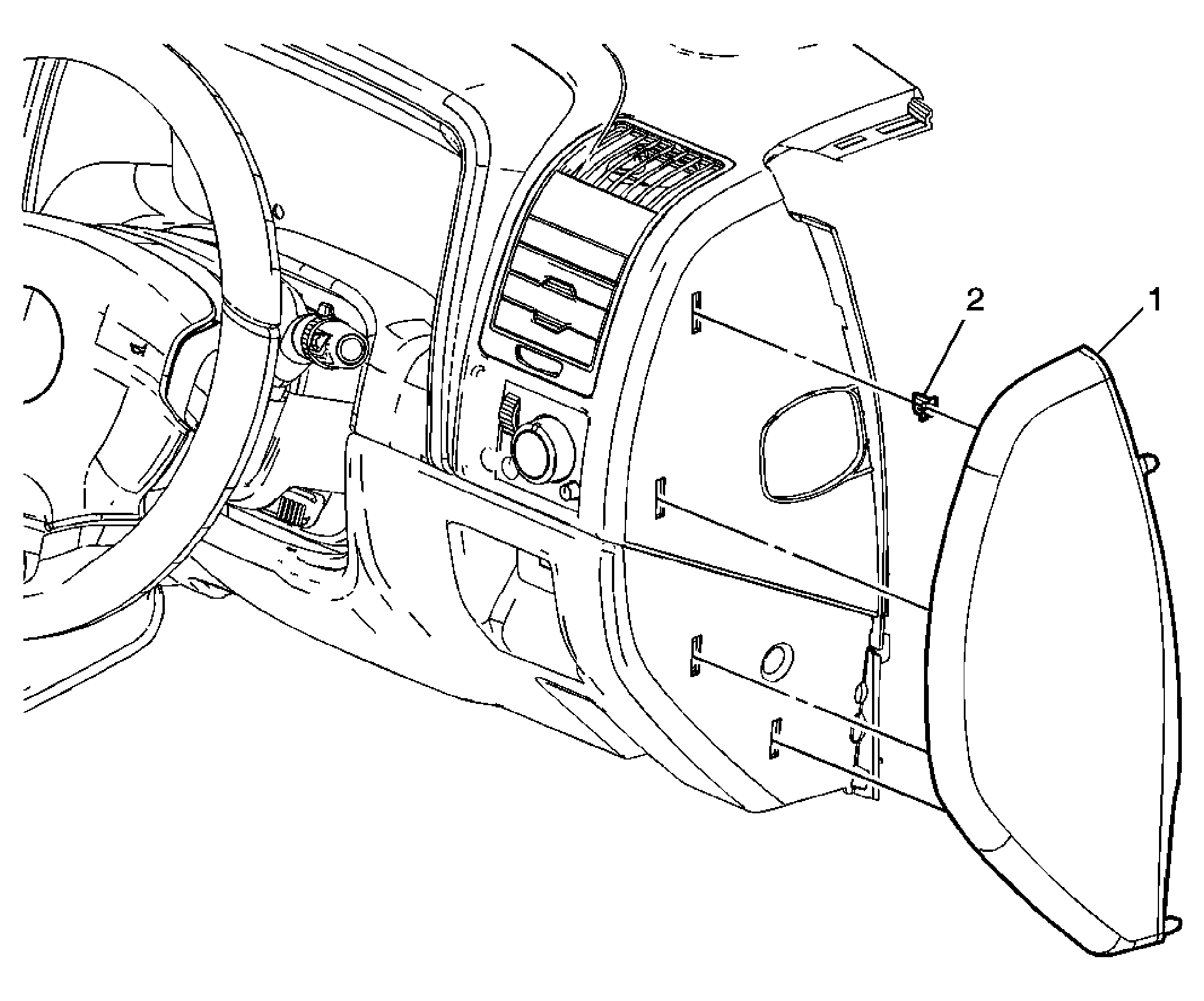

Fig 1: Instrument Panel Outer Trim Cover Replacement - Right Side (Right Hand Drive)
GM1863736Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Outer Cover
2 Trim Clip Retainer (Qty: 3)
