Instrument Panel Outer Trim Cover Replacement - Right Side (Left Hand Drive)

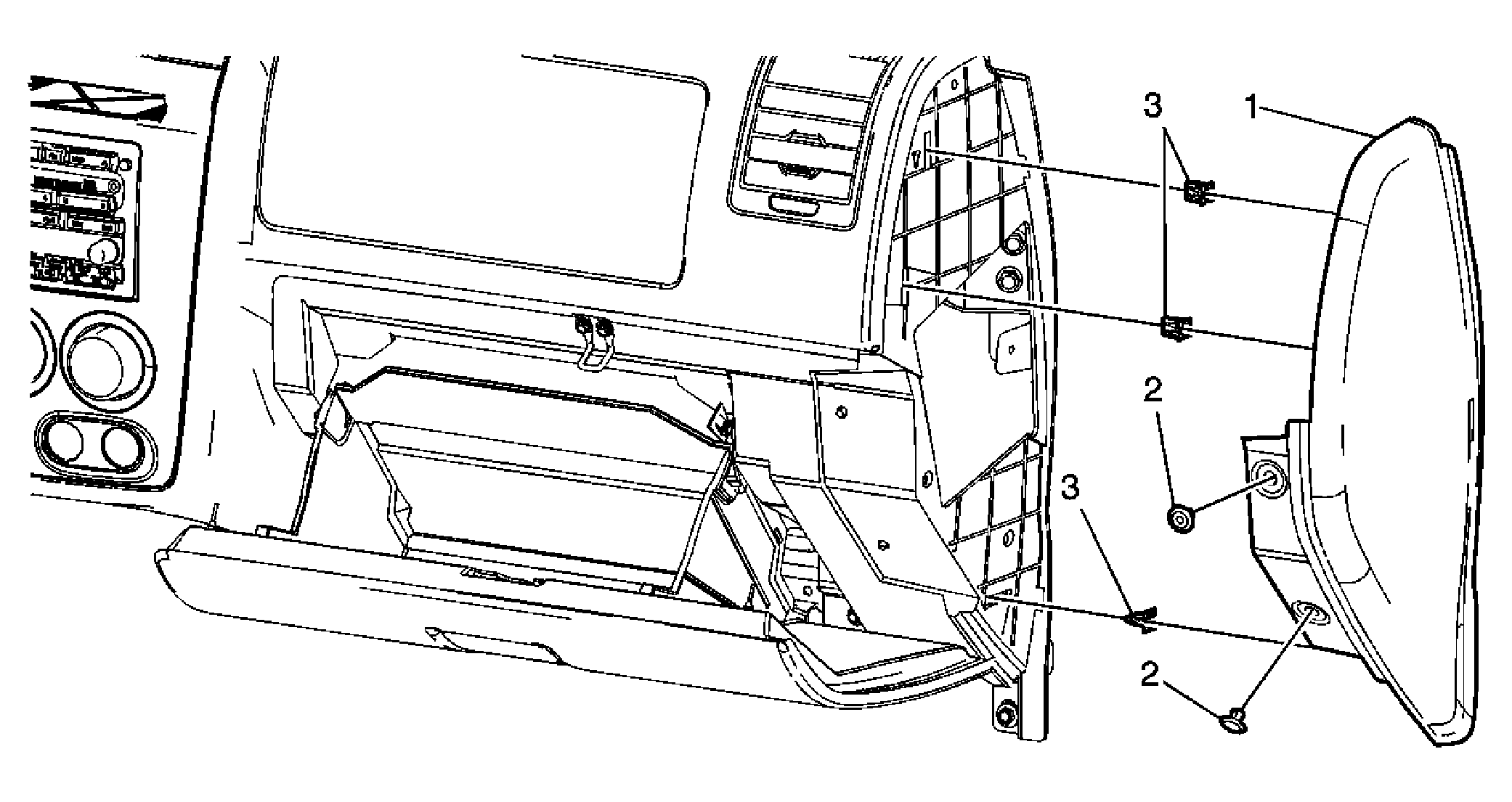

Fig 1: Instrument Panel Outer Trim Cover Replacement - Right Side (Left Hand Drive)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Cover, Instrument Panel Outer
2	Retainer, Push Pin (Qty: 2)
3	Retainer, Trim Clip (Qty: 3)
