Instrument Cluster Schematics

Fig 1: Power, Ground, and Serial Data

GM1911940

Courtesy of GENERAL MOTORS CORP.

Fig 2: Gages

GM1911941

Courtesy of GENERAL MOTORS CORP.

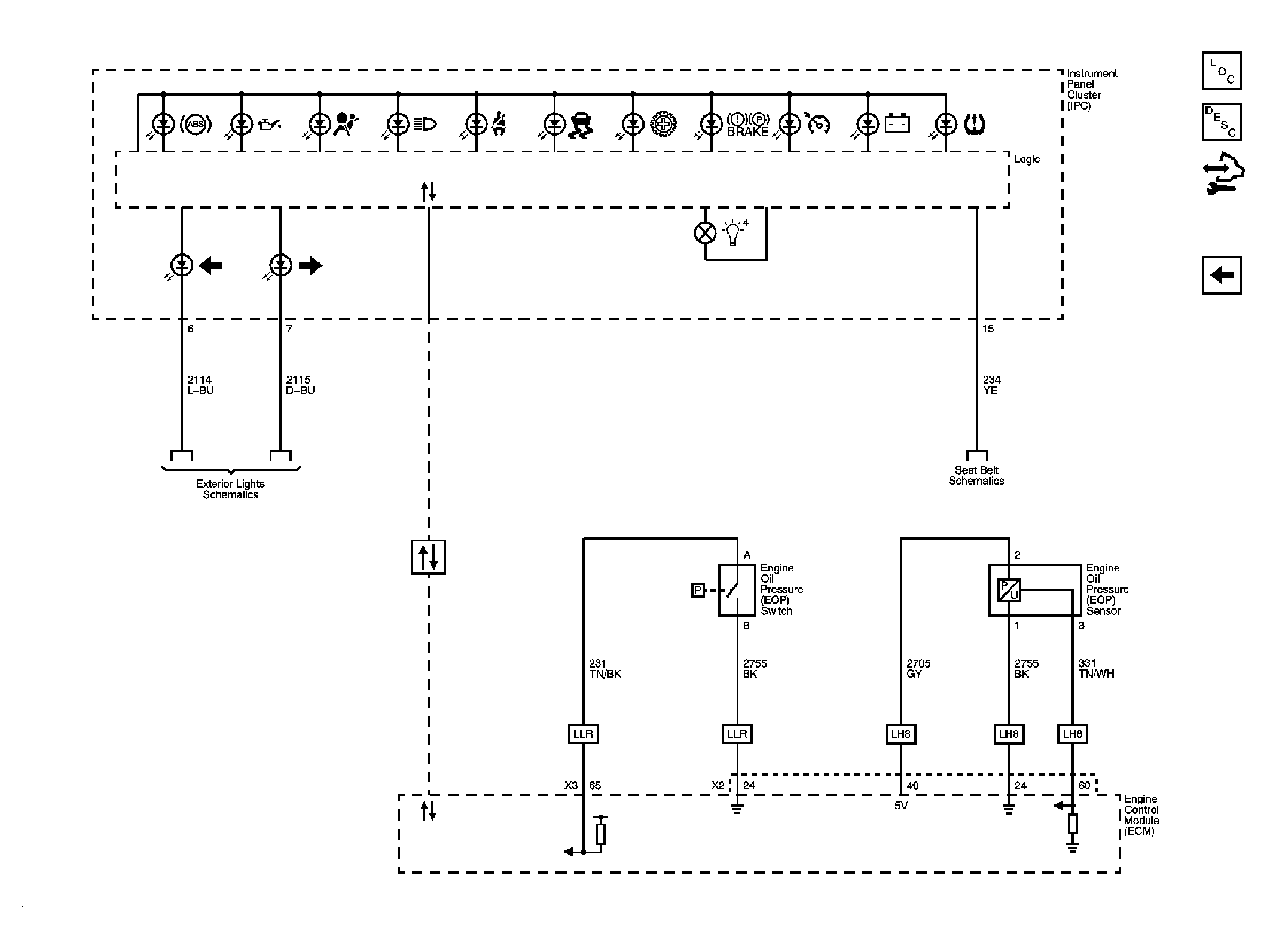

Fig 3: Indicators

GM1911942

Courtesy of GENERAL MOTORS CORP.
