Antilock Brake System Schematics

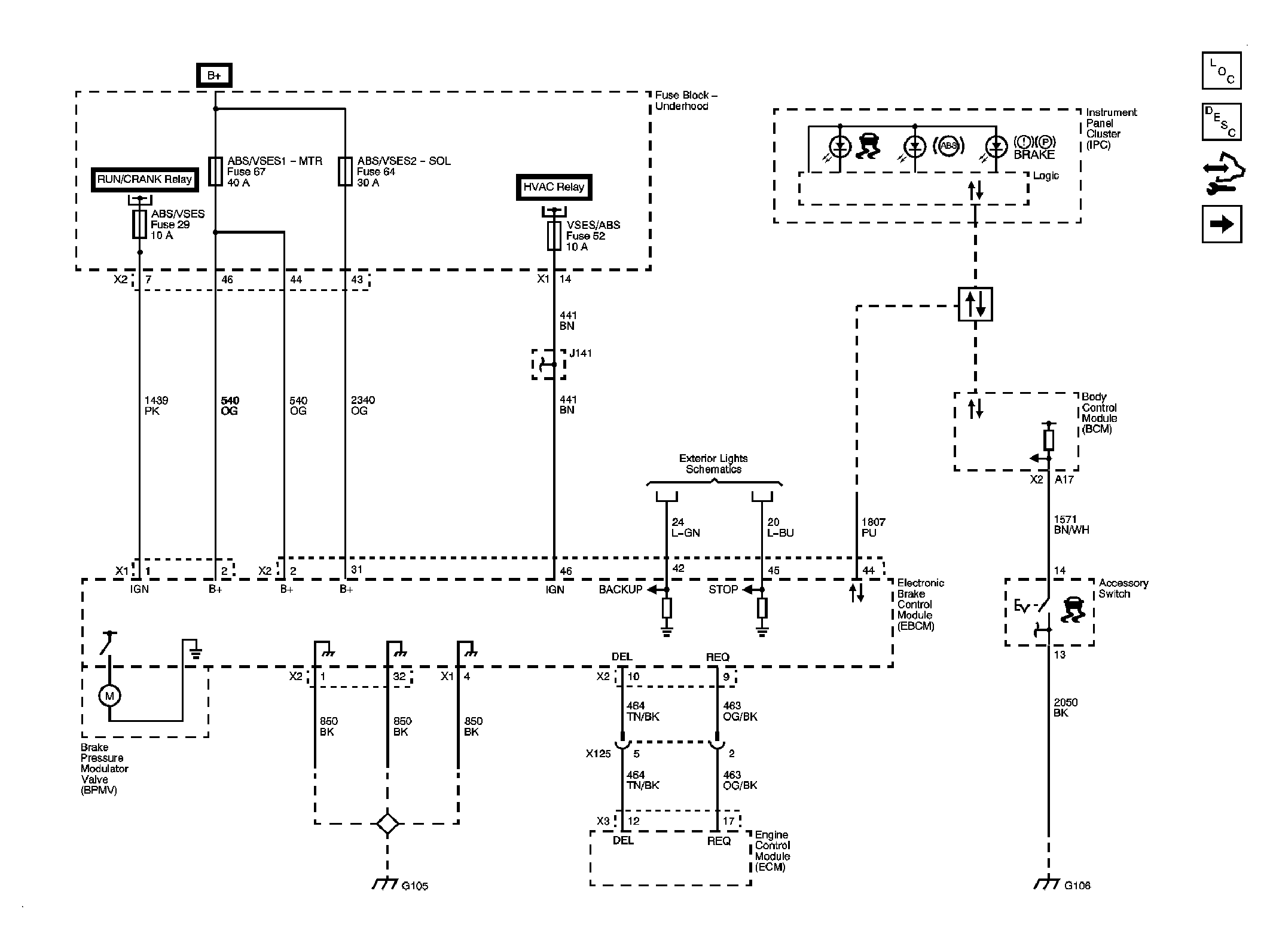

Fig 1: Power, Ground, Serial Data, and Traction Control
GM1911863Courtesy of GENERAL MOTORS CORP.

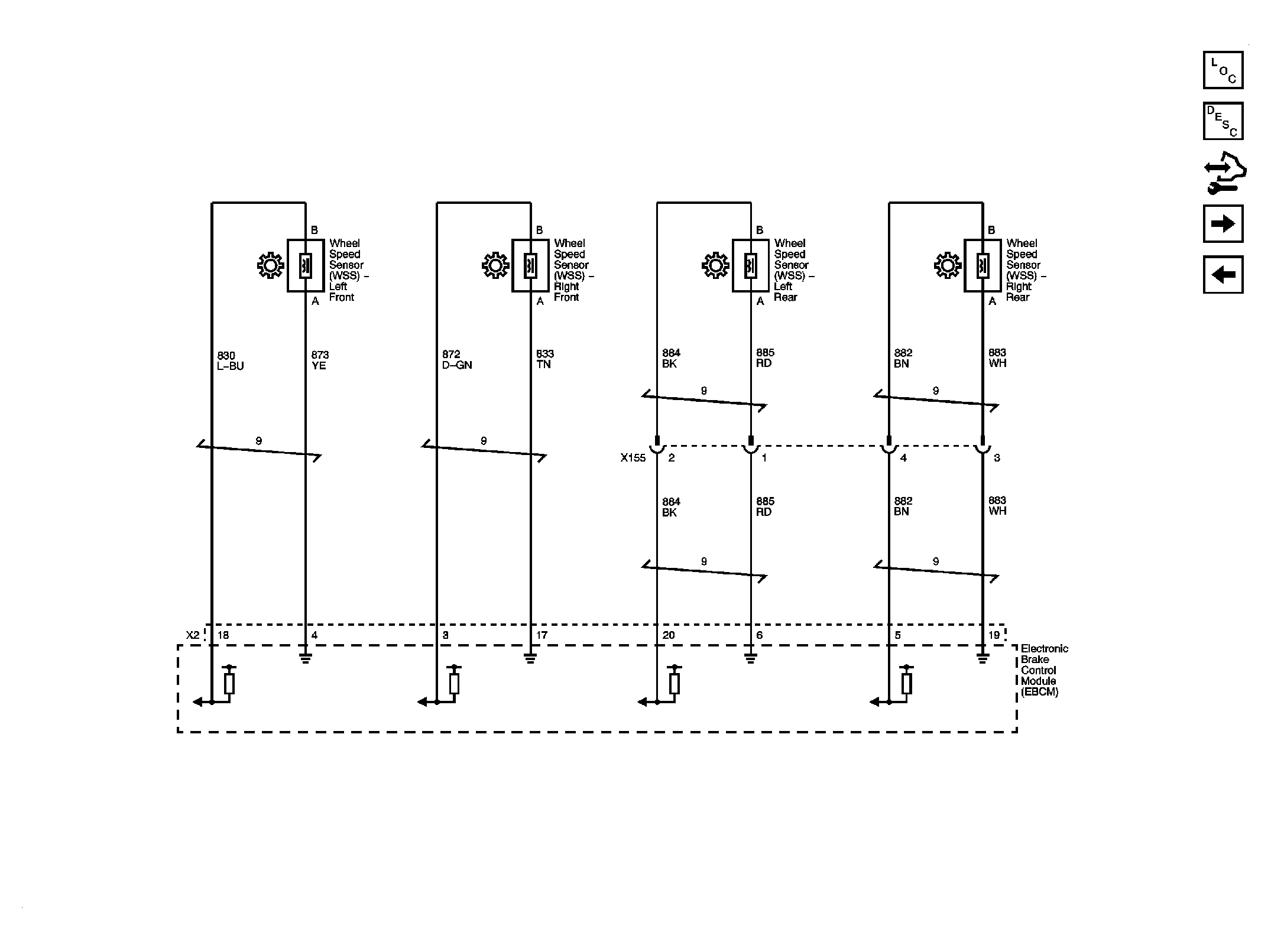

Fig 2: Wheel Speed Signals
GM1911867Courtesy of GENERAL MOTORS CORP.
Fig 3: Vehicle Stability - JL4
GM1911868Courtesy of GENERAL MOTORS CORP.
