Parking Brake Indicator Switch Replacement (RHD)

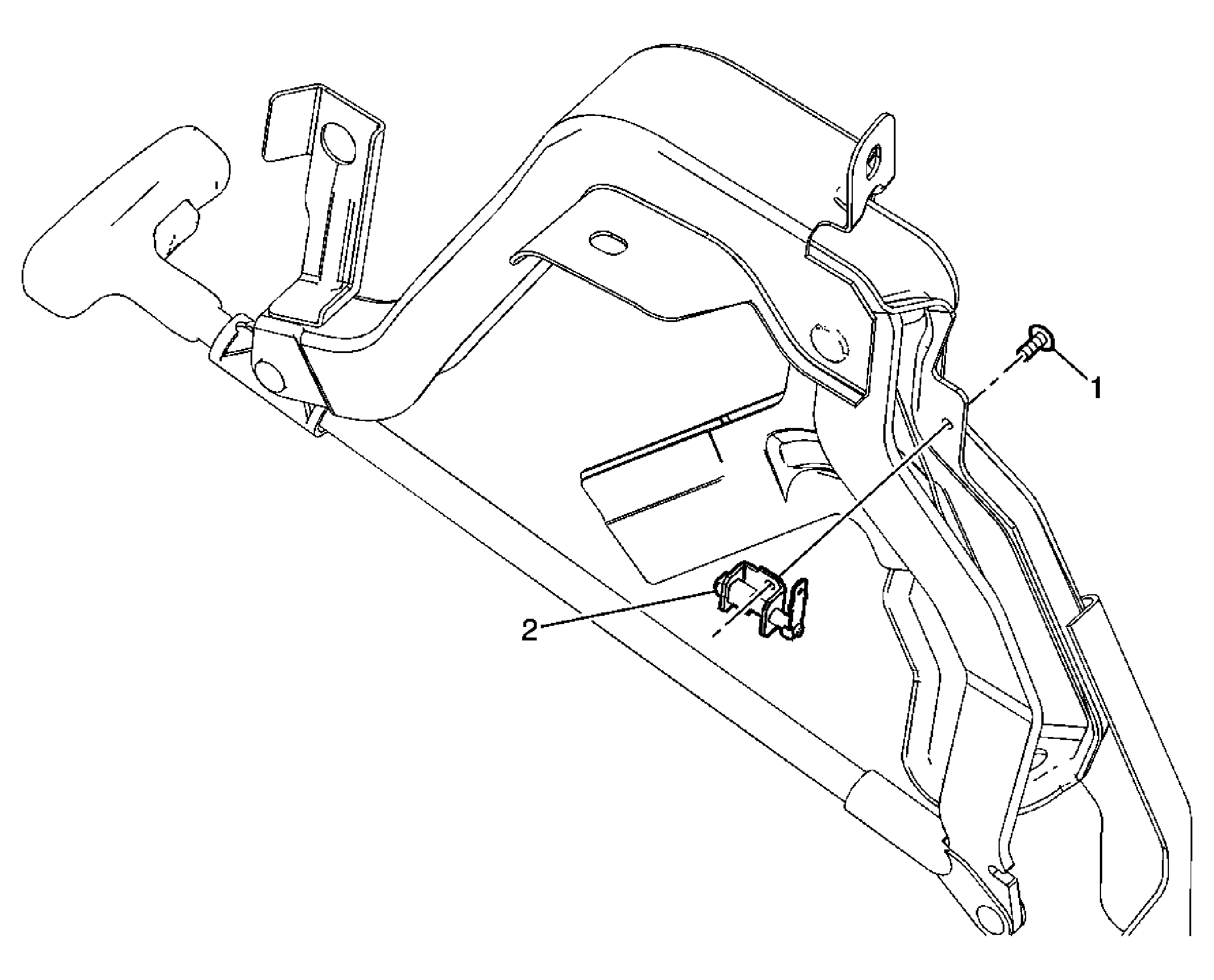

Fig 1: Locating Parking Brake Indicator Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Place the vehicle on a level surface and block the wheels. Release the park brake lever. Remove the park brake lever. Refer to Parking Brake Lever Replacement (RHD) .
1	Park Brake Warning Warning Lamp Switch Bolt NOTE: Refer to Fastener Notice . Tighten: 3 N.m (25 lb in)
2	Park Brake Warning Lamp Switch

Callout

Component Name

Preliminary Procedures

Park Brake Warning Warning Lamp Switch Bolt

NOTE: Refer to Fastener Notice .

Tighten: 3 N.m (25 lb in)

Park Brake Warning Lamp Switch
