Power Brake Booster Pump Fluid Accumulator Replacement (without RPO BRM)

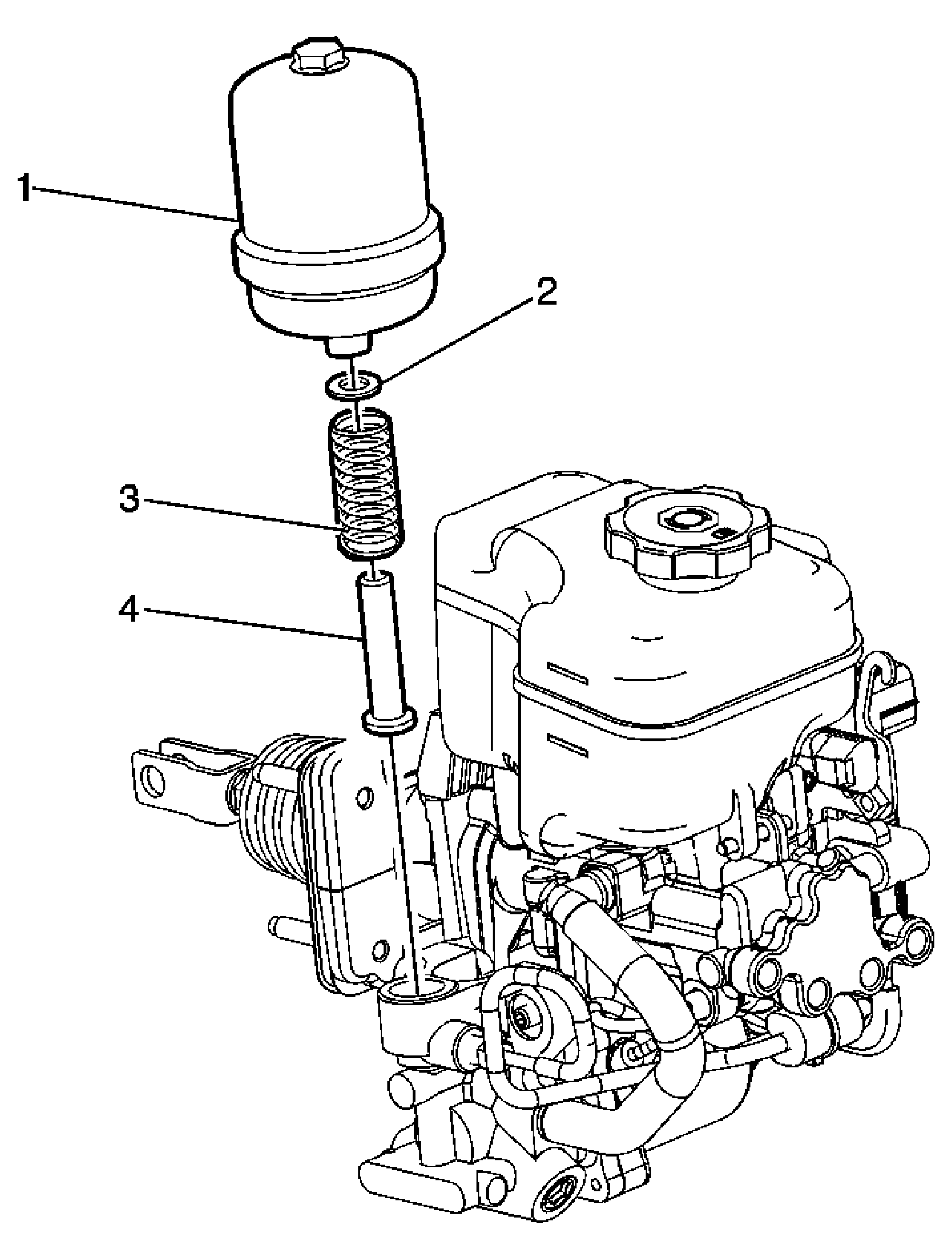

| Callout | Component Name |
|---|---|
|
CAUTION:
Refer to Bleed Procedure Caution
.
CAUTION:
Refer to Brake Fluid Irritant Caution
.
NOTE:
Refer to Brake Fluid Effects on Paint and Electrical Components Notice
. Preliminary Procedure: Remove the brake master cylinder assembly with power brake booster and chassis control module. Refer to Brake Master Cylinder with Power Brake Booster and Chassis Control Module Replacement (LHD)
or Brake Master Cylinder with Power Brake Booster and Chassis Control Module Replacement (RHD)
. |
|
| 1 | Power Brake Booster Accumulator
NOTE:
Refer to Fastener Notice
. Procedure: Discard the accumulator properly by cutting the accumulator in half and draining the brake fluid. Refer to Power Brake Booster Pump Fluid Accumulator Disposal . Tighten: 55 N.m (41 lb ft) |
| 2 | Power Brake Booster Pump Fluid Accumulator Seal Procedure: Lubricate with Delco®, GM P/N 12377967 (Canadian P/N 992667) or equivalent DOT-3 brake fluid from a clean, sealed brake fluid container. |
| 3 | Power Brake Booster Pump Fluid Accumulator Fitting Spring |
| 4 | Power Brake Booster Pump Fluid Accumulator Fitting |
