Front Disc Brake Pads Replacement

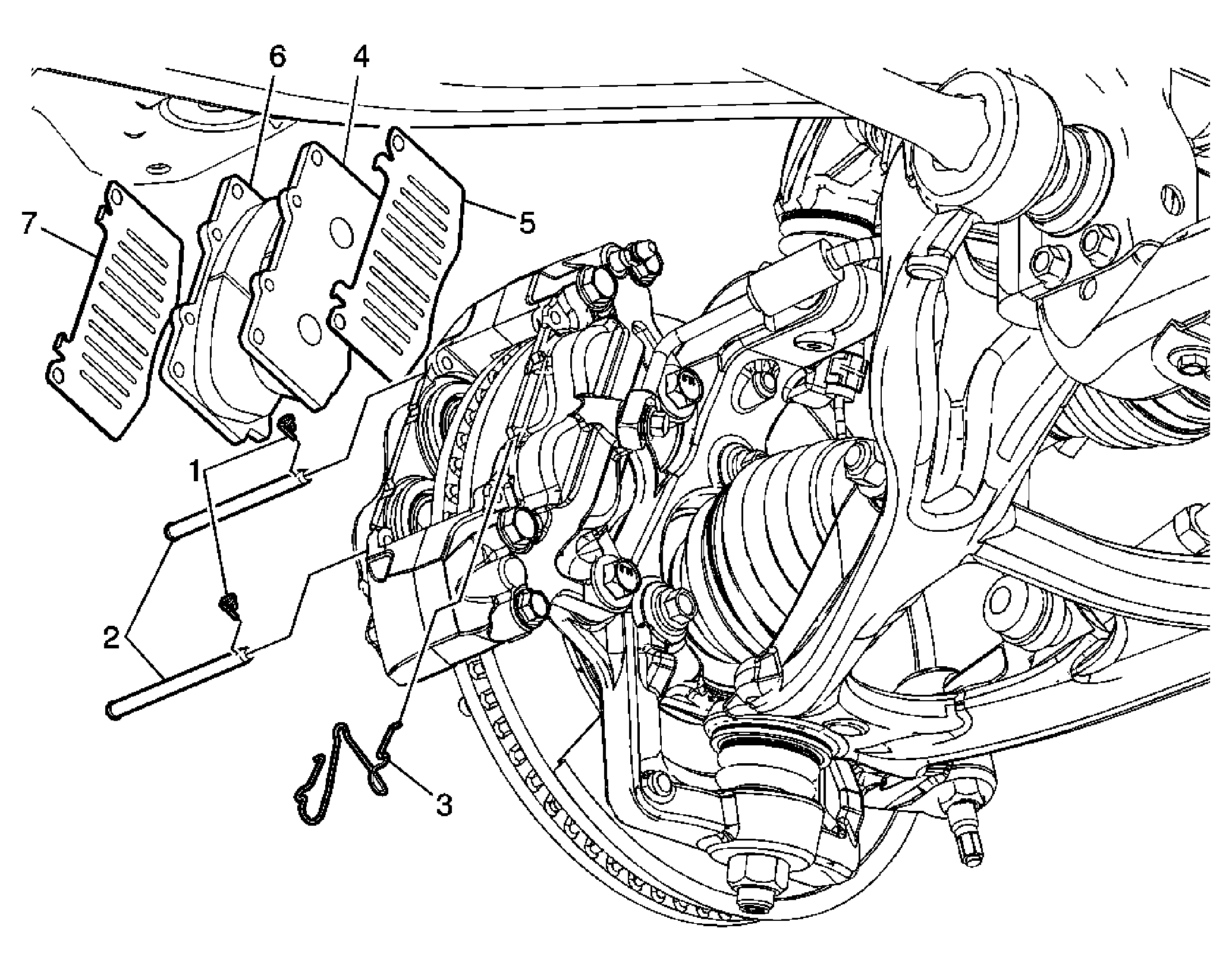

Fig 1: Brake Pads Replacement - Front
GM1556645Courtesy of GENERAL MOTORS CORP.
Callout Component Name
CAUTION: Refer to Brake Dust Caution .
CAUTION: Refer to Brake Fluid Irritant Caution .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1 Retainer, Front Disc Brake Pad (Qty: 2)
Tip:  The front disc pad retainers (Qty: 2) secure the front disc brake pad pins (Qty: 2) into the caliper and hold the pad assembly and hardware together.
2 Pin, Front Disc Brake Pad (Qty: 2)
3 Clip, Front Disc Brake Caliper Damping
4 Pad Assembly, Front Disc Brake Inner
Tip:
  1. Compress the pistons into the caliper bores.
  2. Pump the brake pedal in order to seat the new brake pads, then road test the vehicle in order to burnish the brake pads. Refer to Brake Pad and Rotor Burnishing .
5 Shim, Front Brake Pad Vibration
6 Pad Assembly, Front Disc Brake Outer
7 Insulator, Front Disc Brake Outer Pad
