Front Disc Brake Hardware Replacement

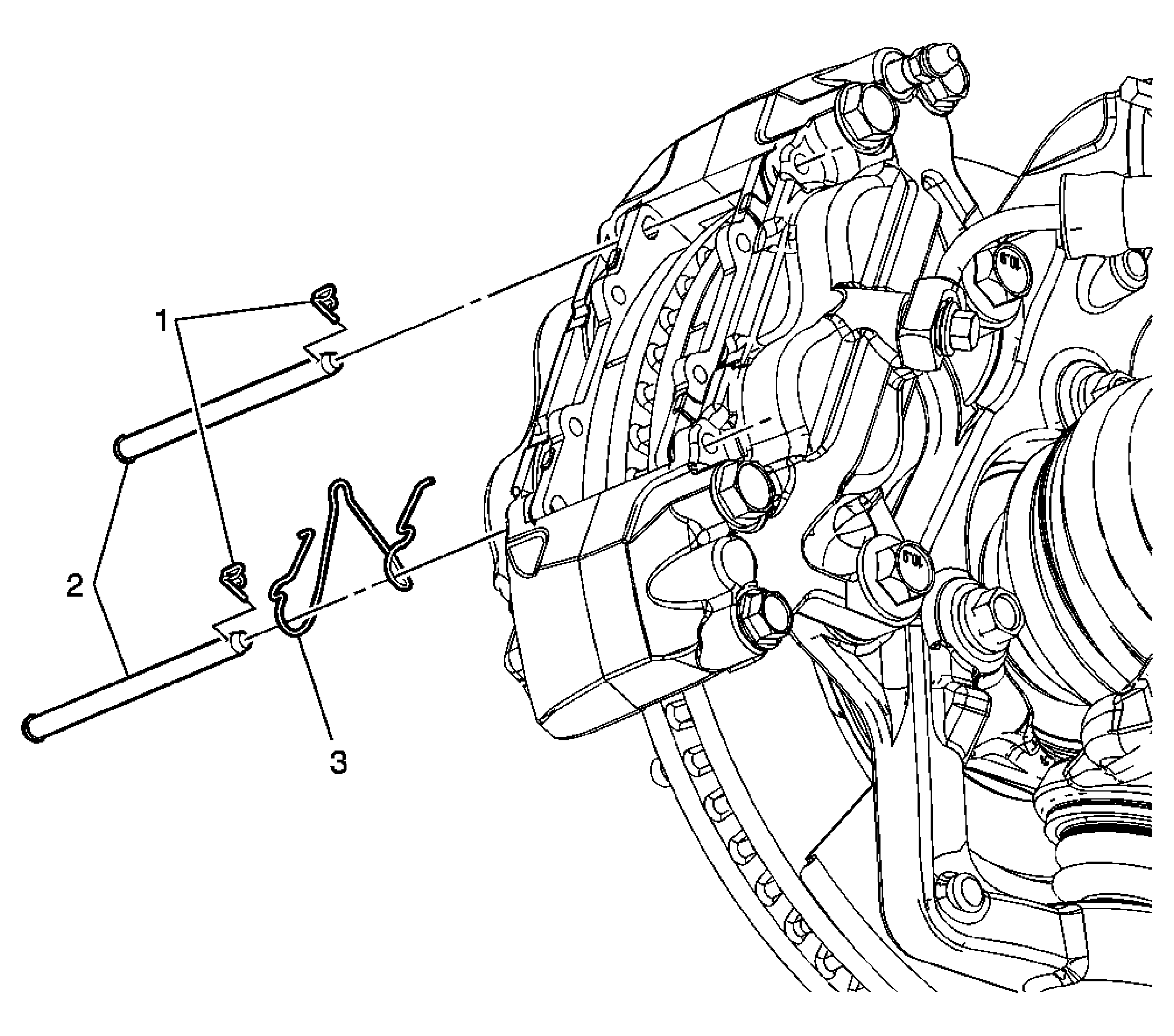

Fig 1: Disc Brake Hardware Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . CAUTION: Refer to Brake Fluid Irritant Caution . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1	Retainer, Front Disc Brake Pad (Qty: 2)
2	Pin, Front Disc Brake Pad (Qty: 2)
3	Clip, Front Disc Brake Caliper Damping
