Front Brake Shield Replacement

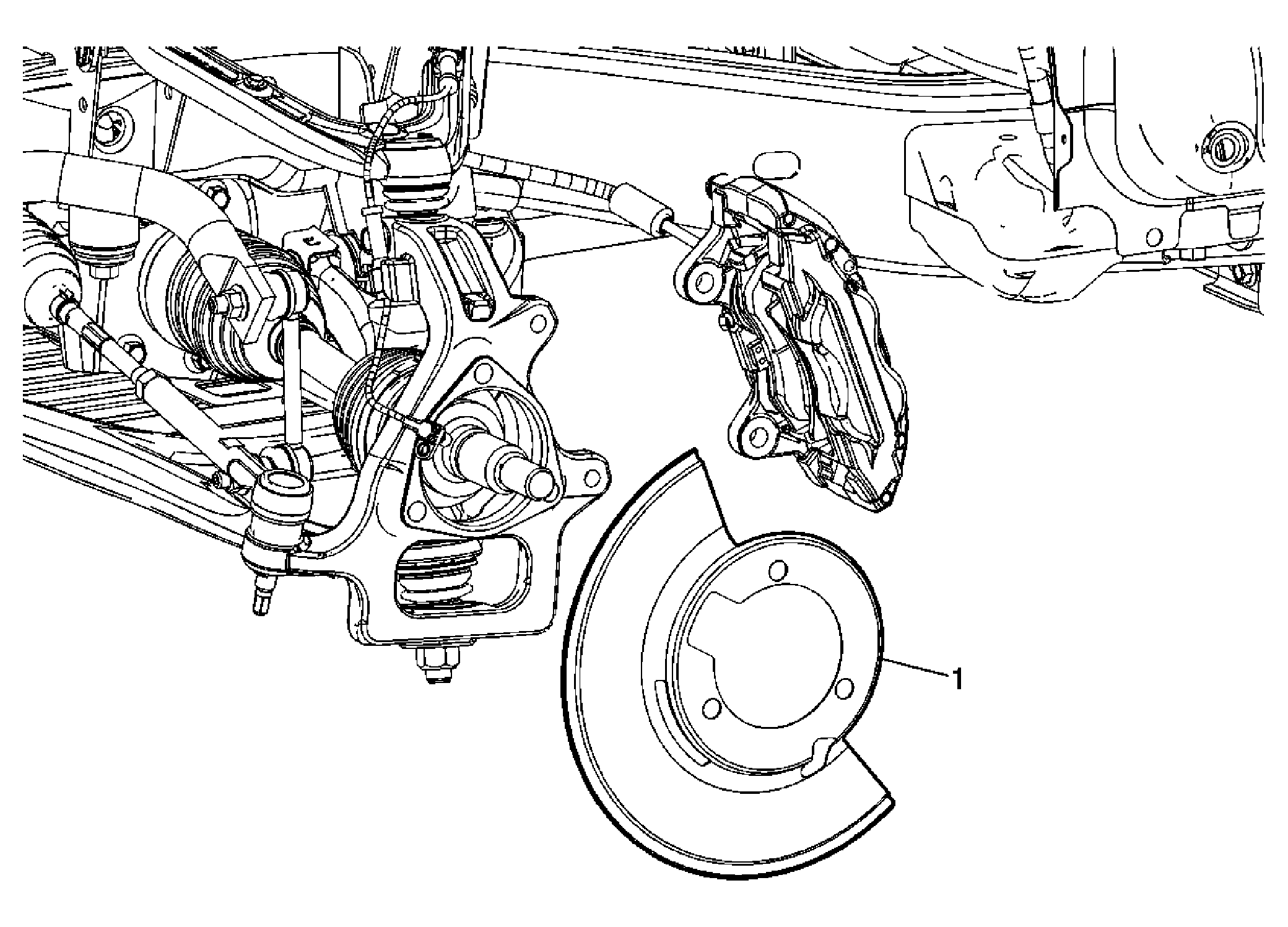

Fig 1: Disc Brake Splash Shield Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . CAUTION: Refer to Brake Fluid Irritant Caution . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the wheel hub assembly. Refer to Front Wheel Hub, Bearing, and Seal Replacement .
1	Front Brake Shield

Callout

Component Name

CAUTION: Refer to Brake Dust Caution .

CAUTION: Refer to Brake Fluid Irritant Caution .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the wheel hub assembly. Refer to Front Wheel Hub, Bearing, and Seal Replacement .

Front Brake Shield
