Front Brake Rotor Replacement

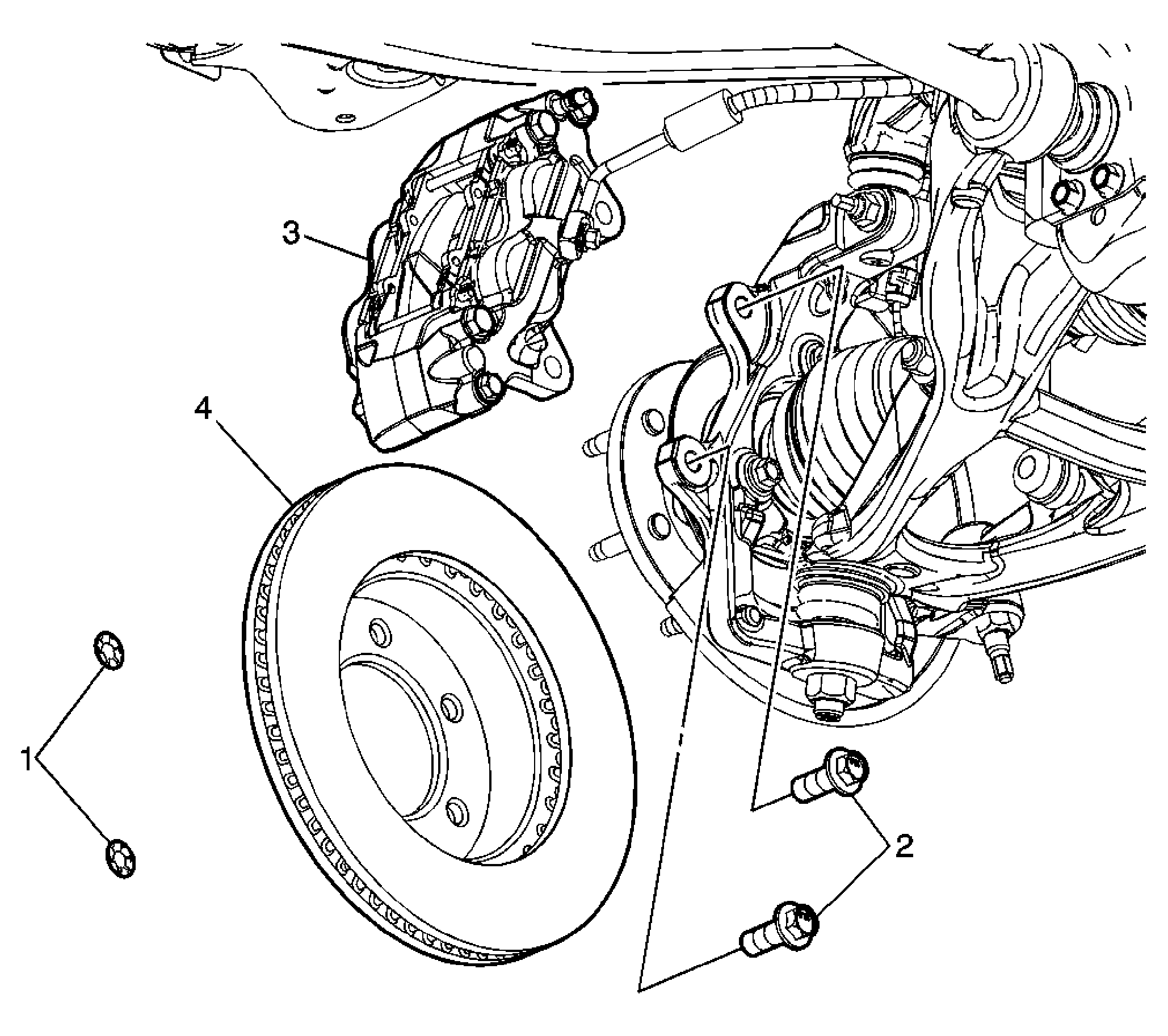

Fig 1: Brake Rotor Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . CAUTION: Refer to Brake Fluid Irritant Caution . NOTE: Refer to Fastener Notice . NOTE: Refer to Brake Caliper Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1	Front Disc Brake Rotor Retainer (Qty: 2)
2	Brake Caliper Bolt (Qty: 2) Tighten: 195 N.m (144 lb ft)
3	Front Brake Caliper Tip: Do NOT disconnect the hydraulic brake flexible hose from the caliper.
4	Front Brake Rotor Tip: Road test the vehicle in order to burnish the brake pads. Refer to Brake Pad and Rotor Burnishing .
