Oil Pan Skid Plate Replacement

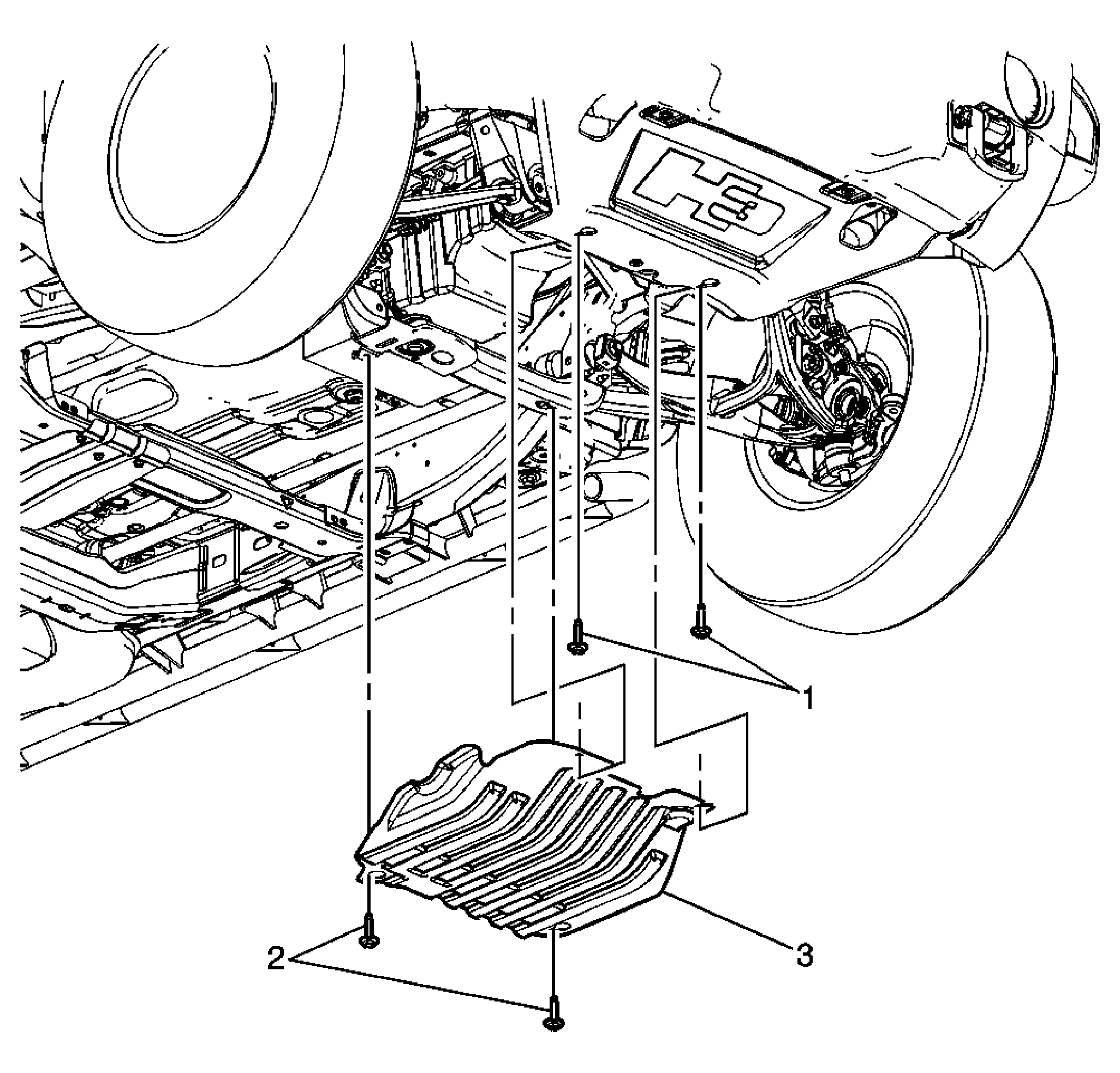

Fig 1: Oil Pan Skid Plate Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Bolts, Oil Pan Skid Plate (Qty: 2) Tighten: 20 N.m (15 lb ft)
2	Bolts, Oil Pan Skid Plate (Qty: 2) Tighten: 20 N.m (15 lb ft)
3	Plate, Oil Pan Skid
