Sunshade Replacement

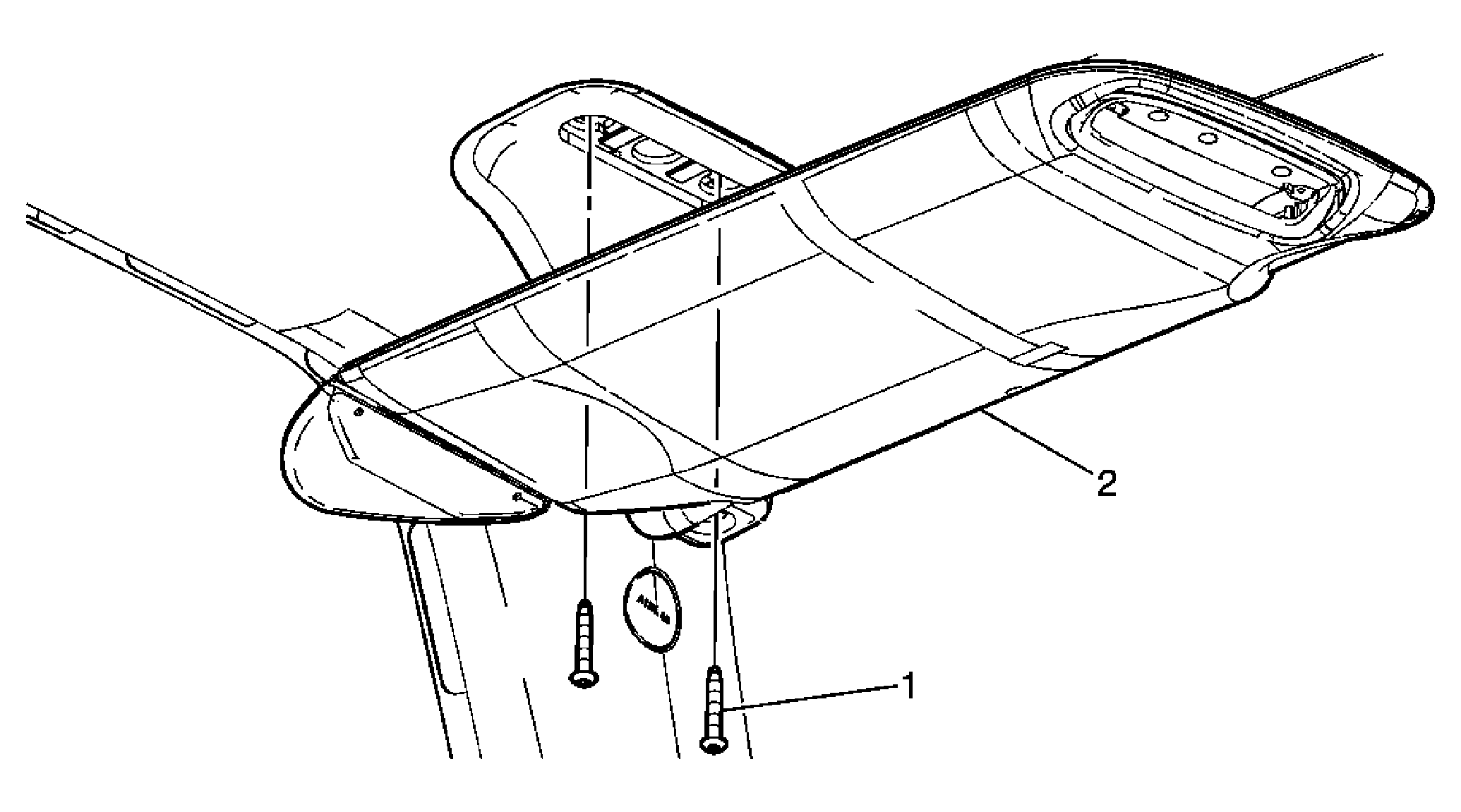

Fig 1: Sunshade

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunshade Screws (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Sunshade Assembly Tip: Disconnect the electrical connector, if equipped.
