Data Communication Schematics

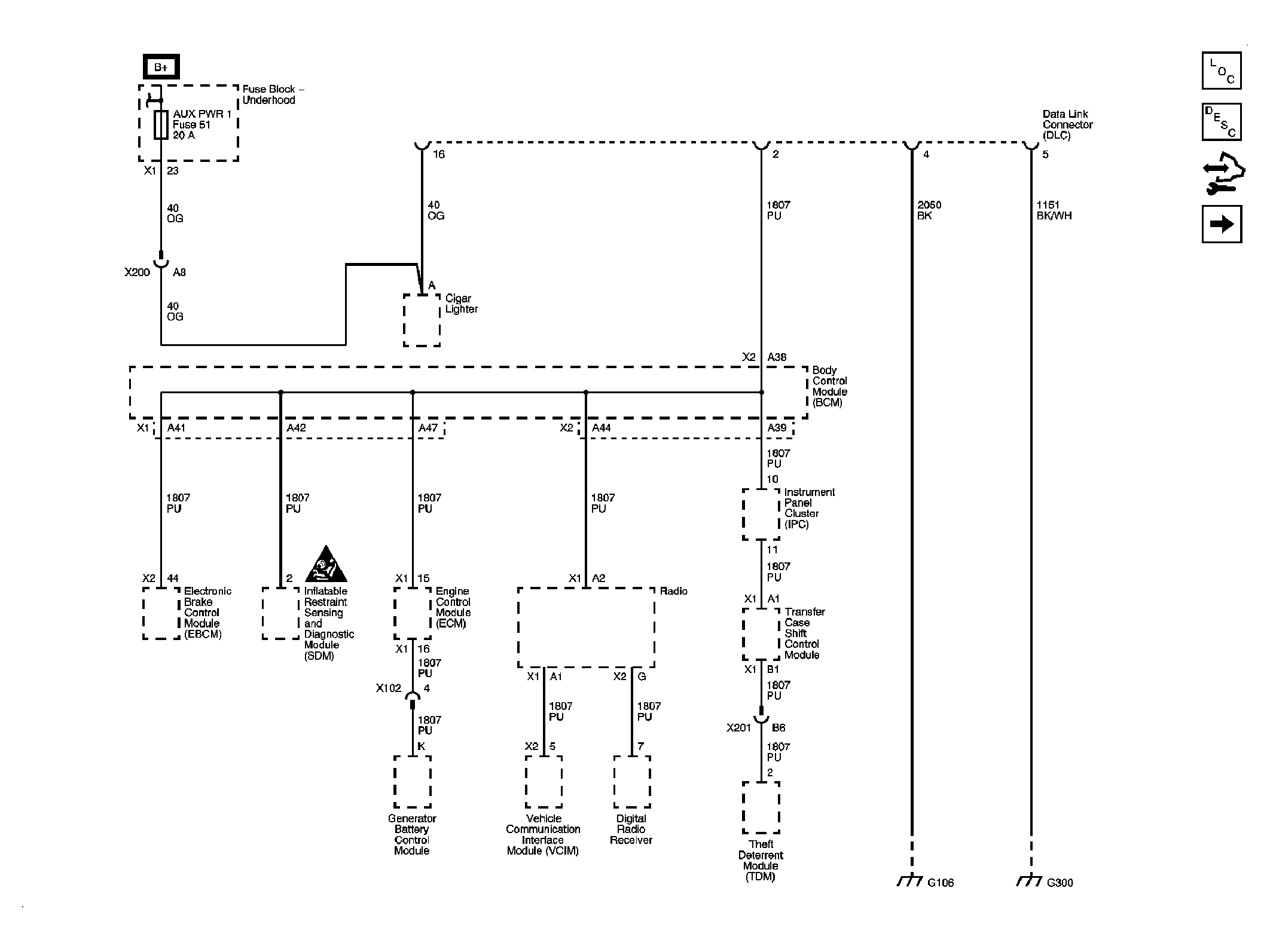

Fig 1: Data Communications Schematic

GM1911923

Courtesy of GENERAL MOTORS CORP.

Fig 2: High Speed GMLAN Schematic

GM1926652

Courtesy of GENERAL MOTORS CORP.
