1-2-3-4 and 3-5 Reverse Clutch Overhaul (6L50/6L80)



1-2-3-4 and 3-5 Reverse Clutch Overhaul (6L50/6L80)

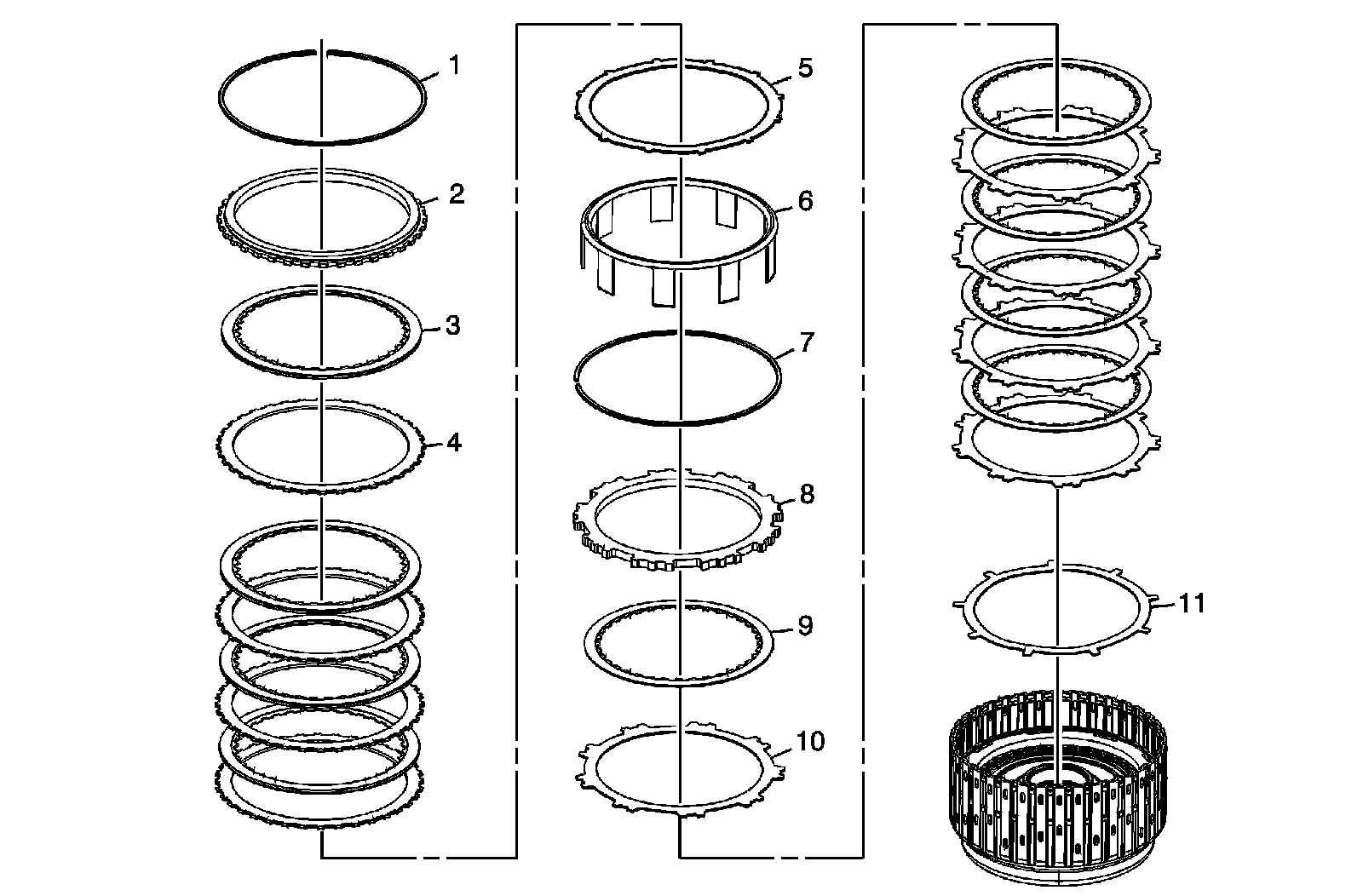

1-2-3-4 and 3-5 Reverse Clutch Plates Removal

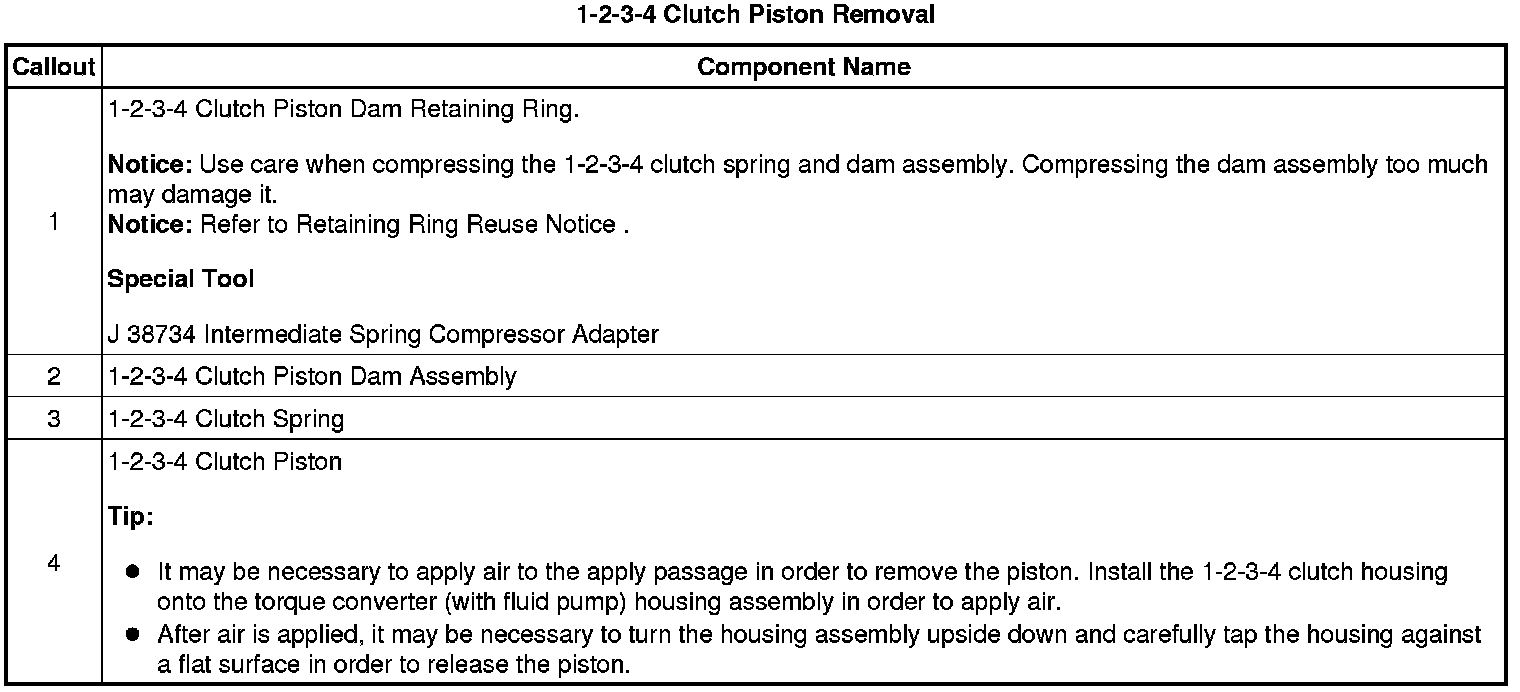

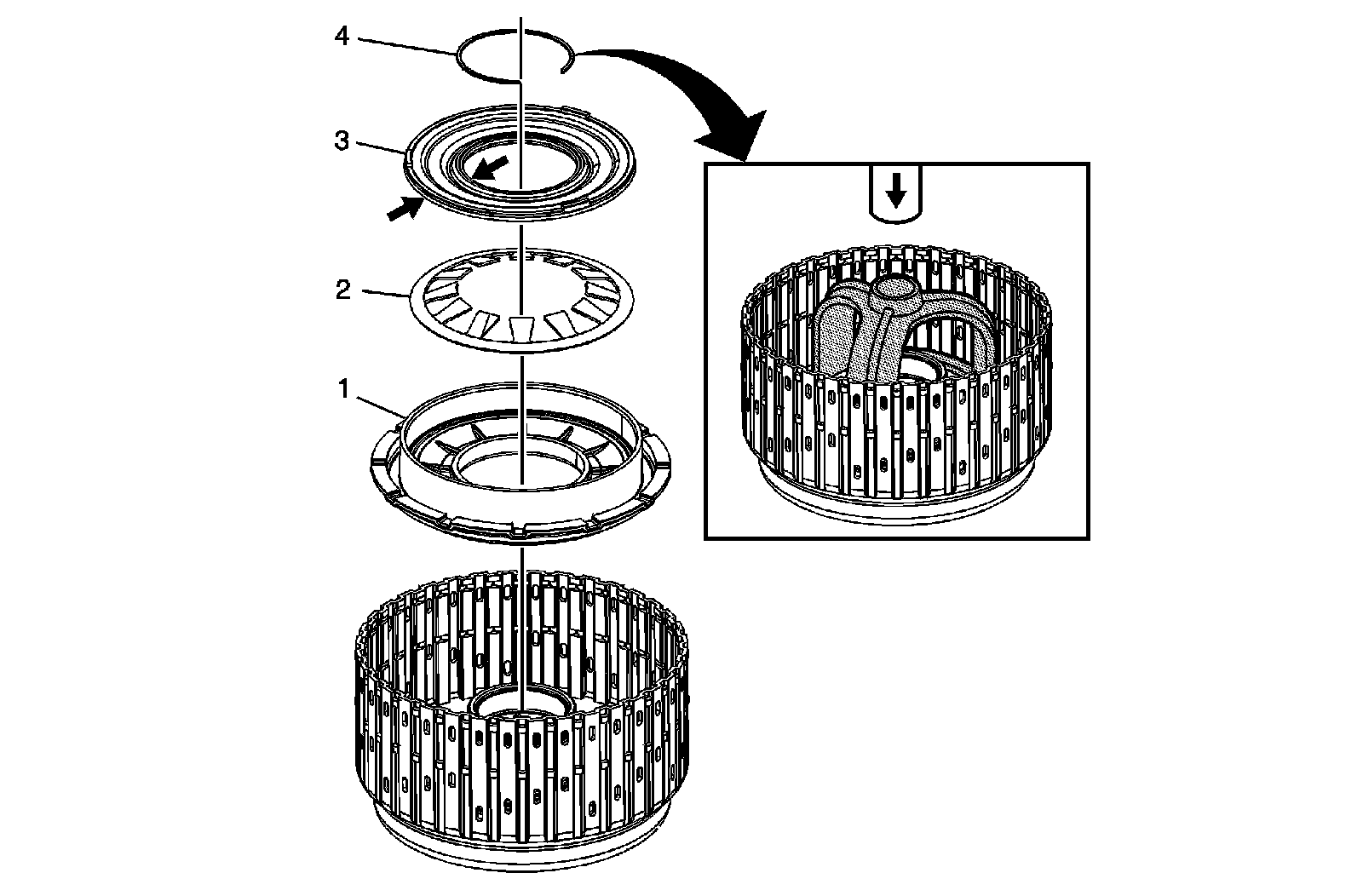

1-2-3-4 Clutch Piston Removal

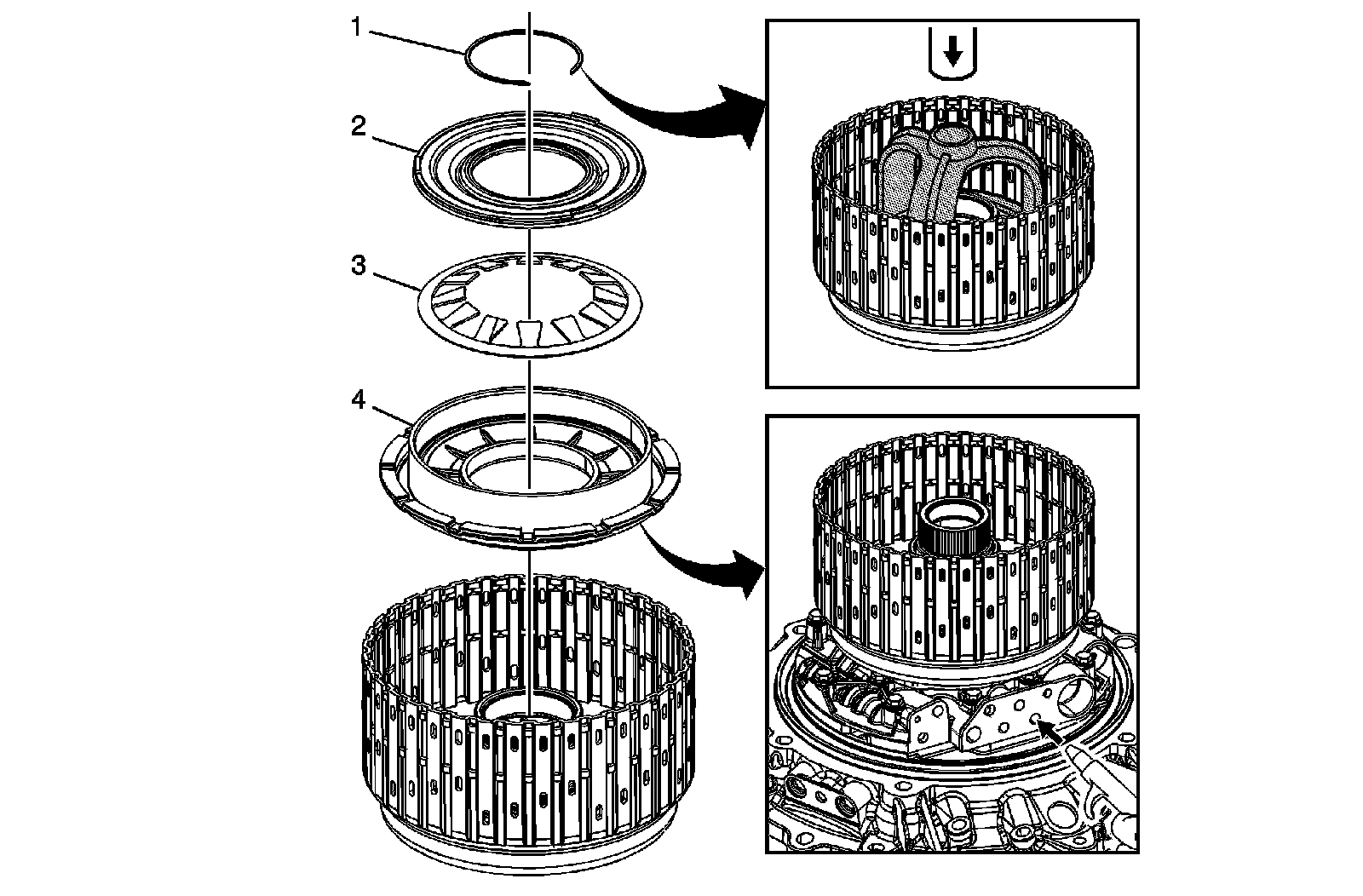

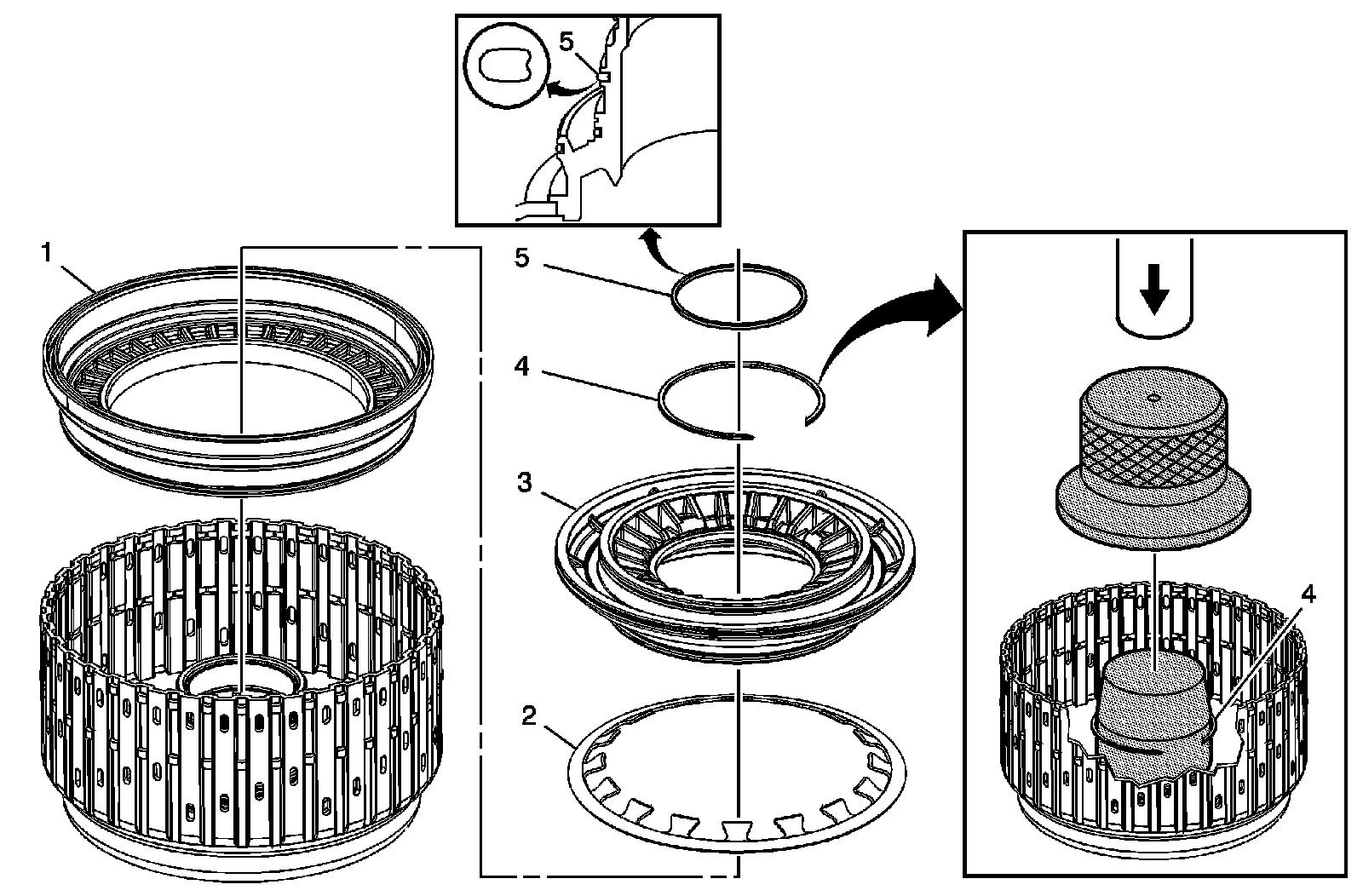

3-5 Reverse Clutch Piston Removal

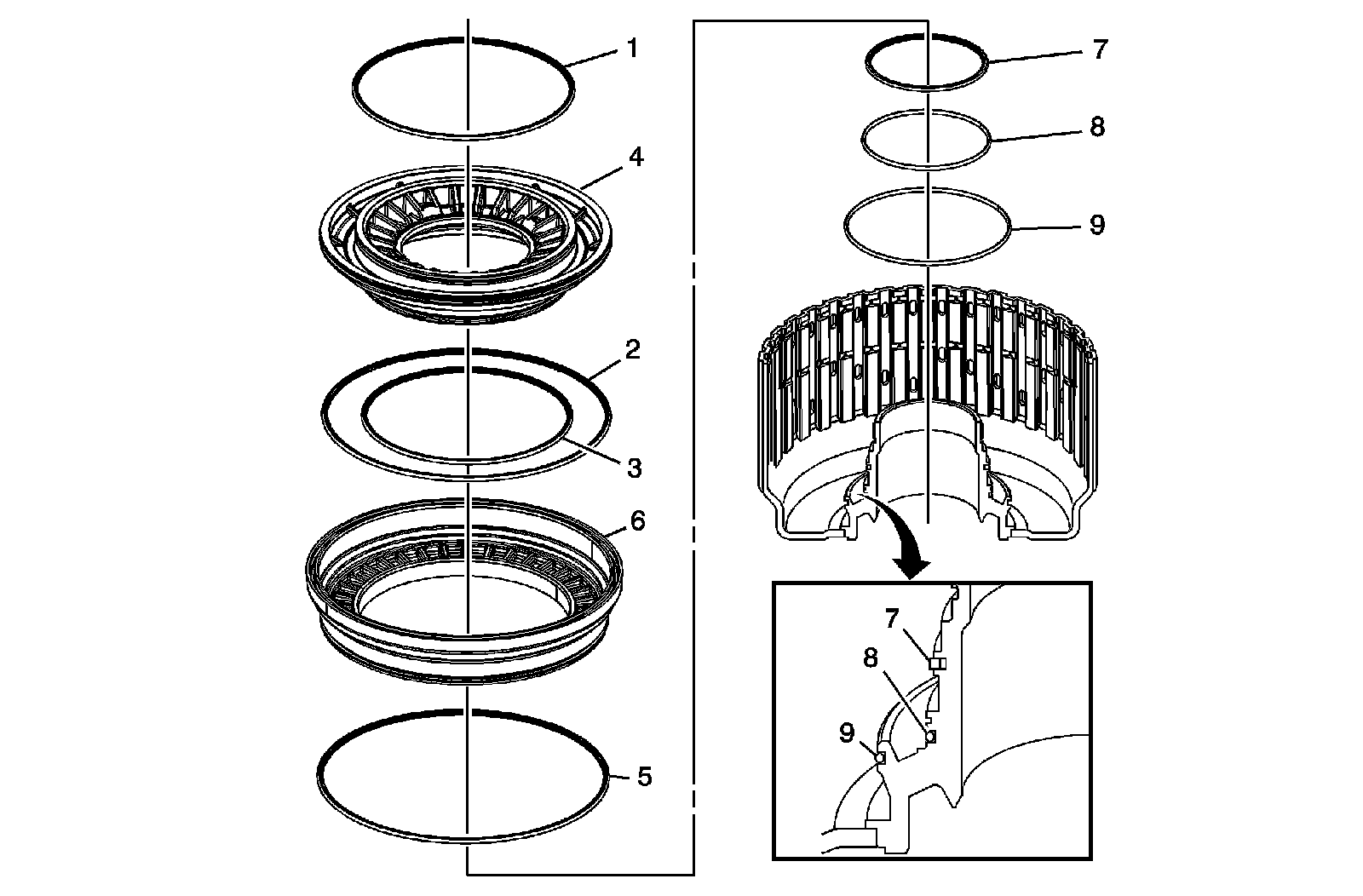

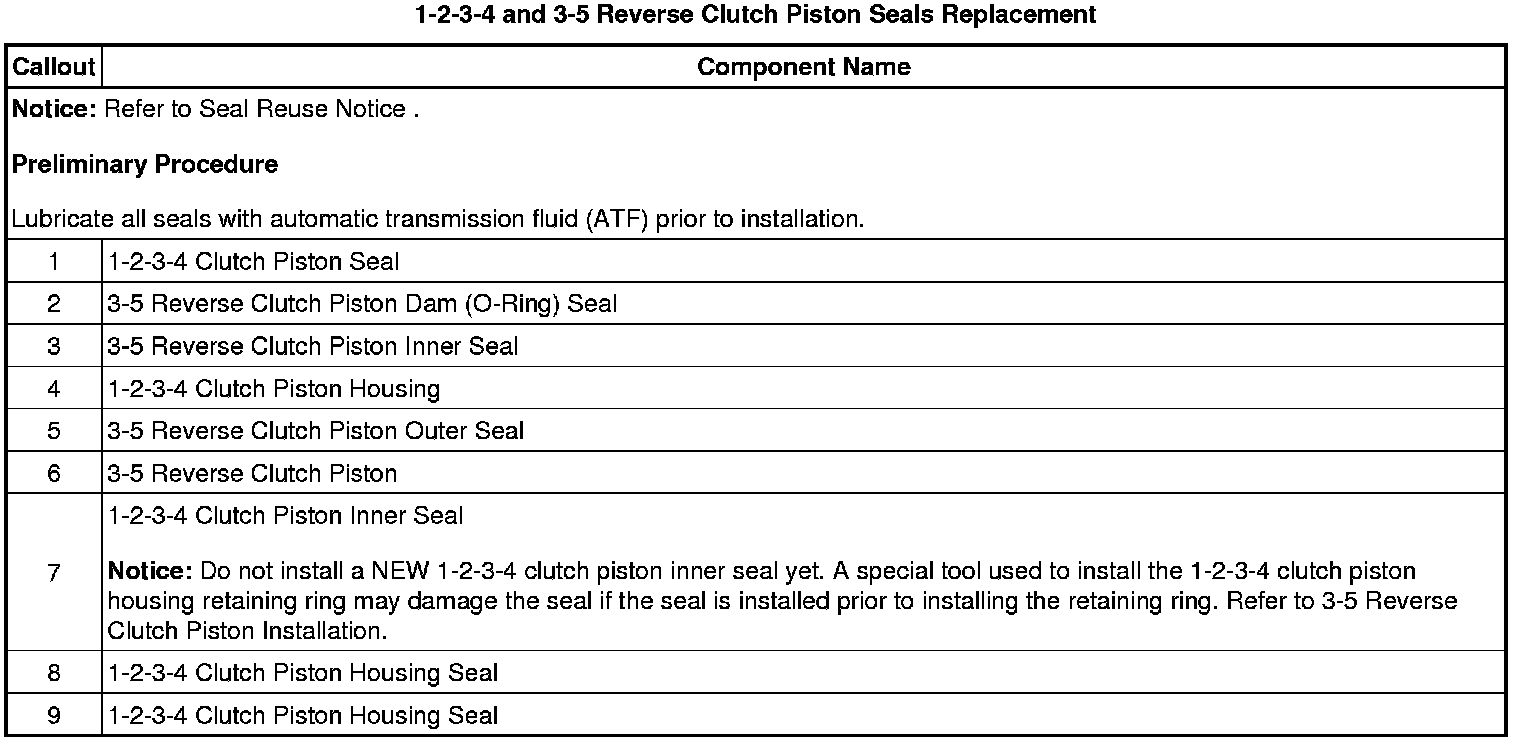

1-2-3-4 and 3-5 Reverse Clutch Piston Seals Replacement

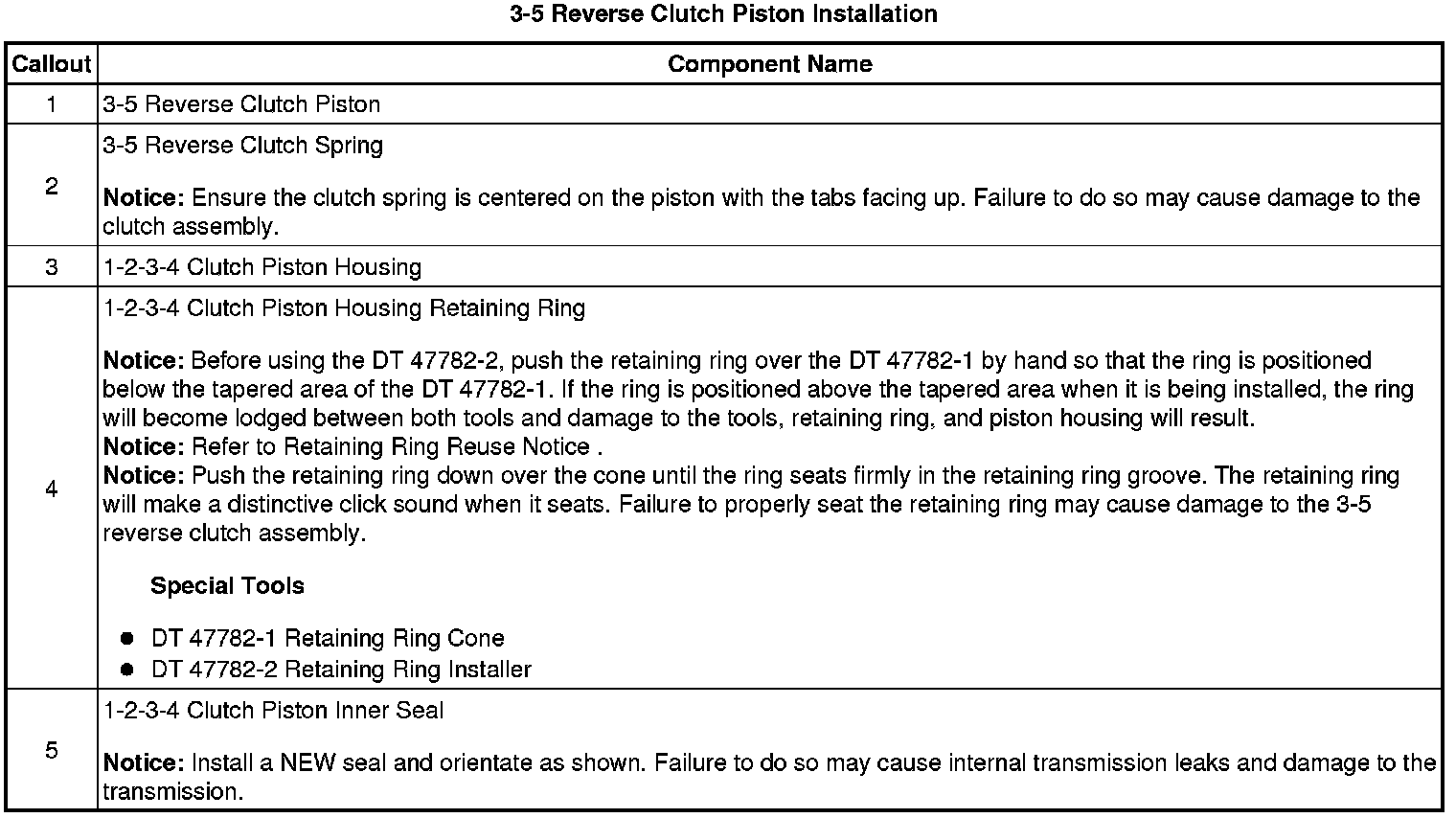

3-5 Reverse Clutch Piston Installation

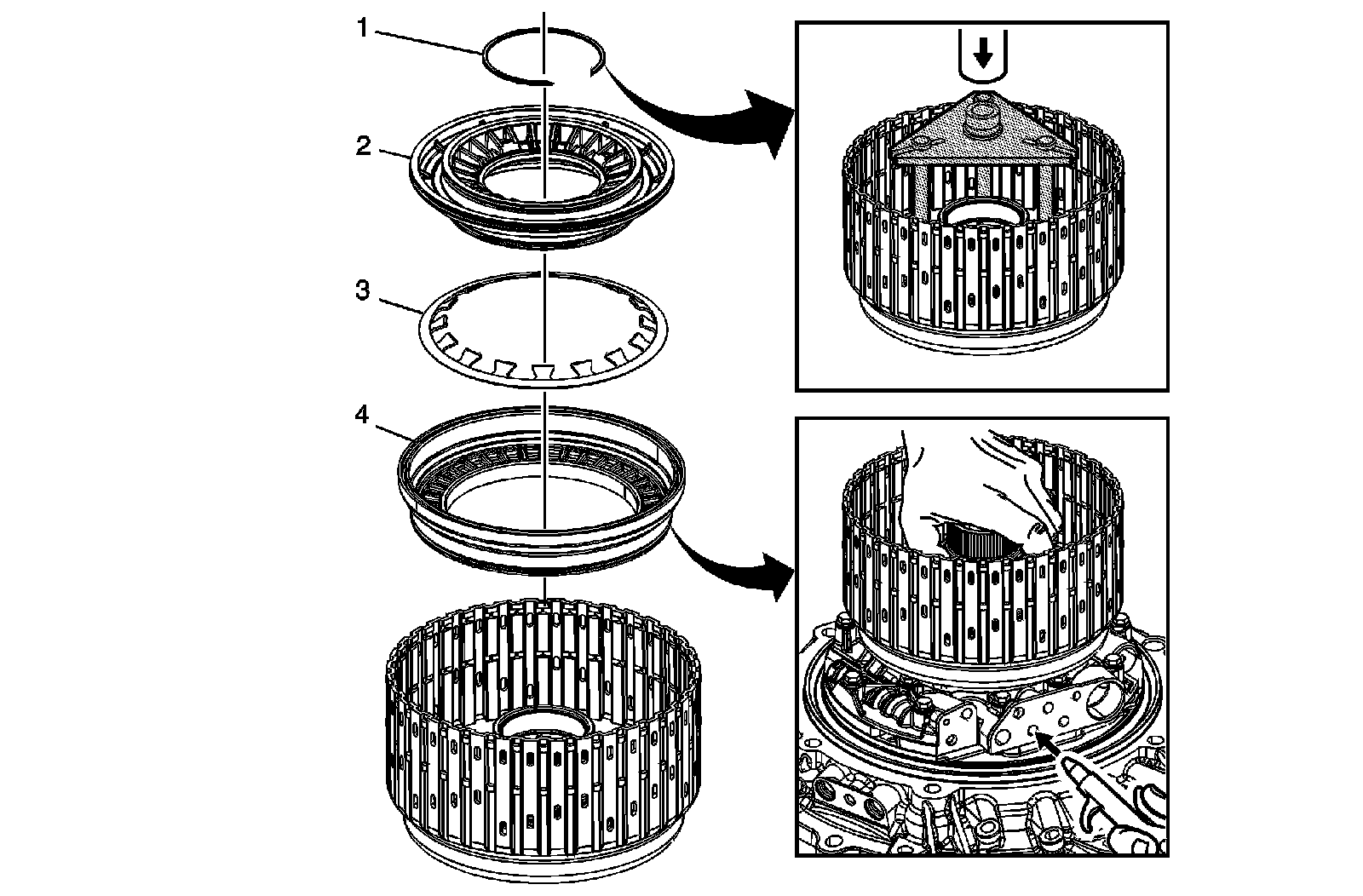

1-2-3-4 Clutch Piston Installation

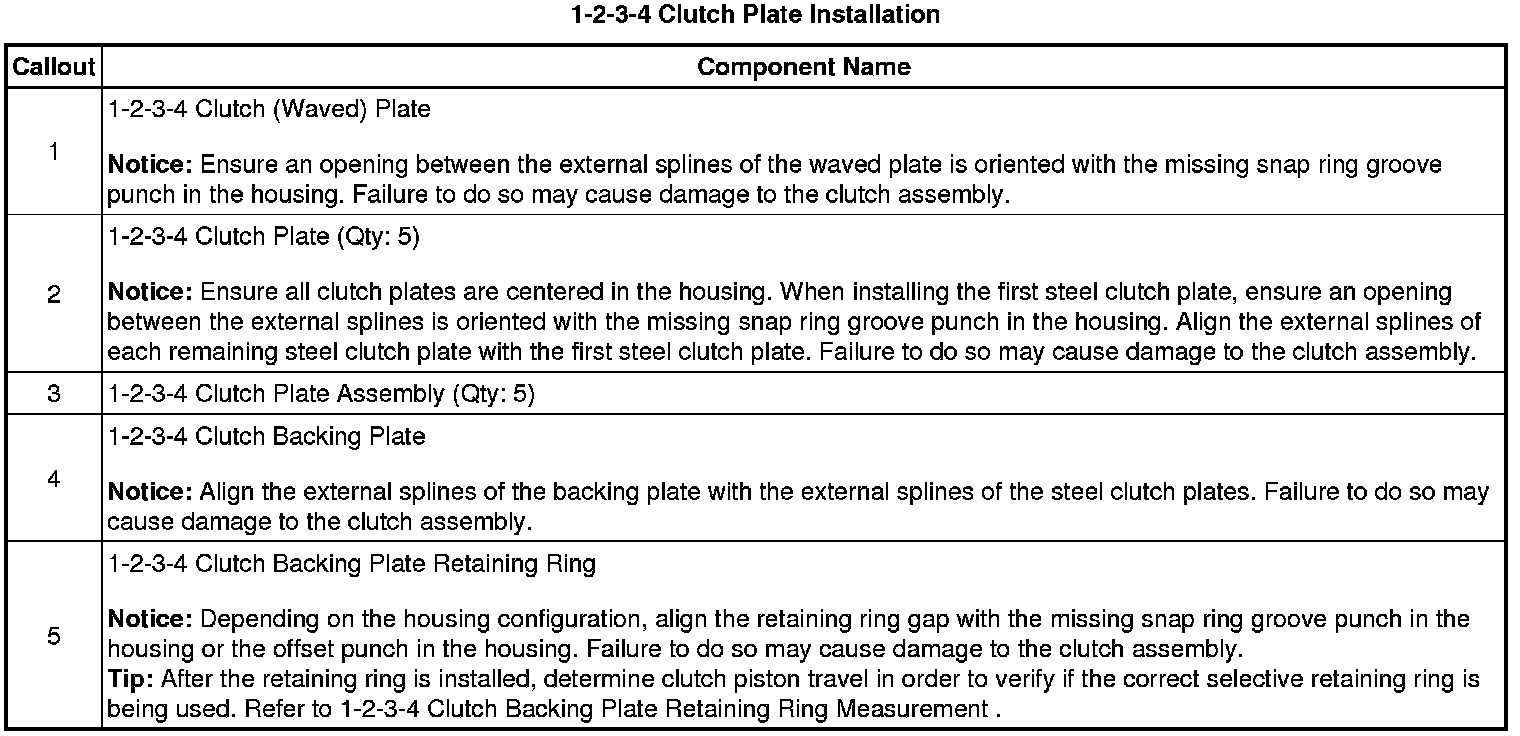

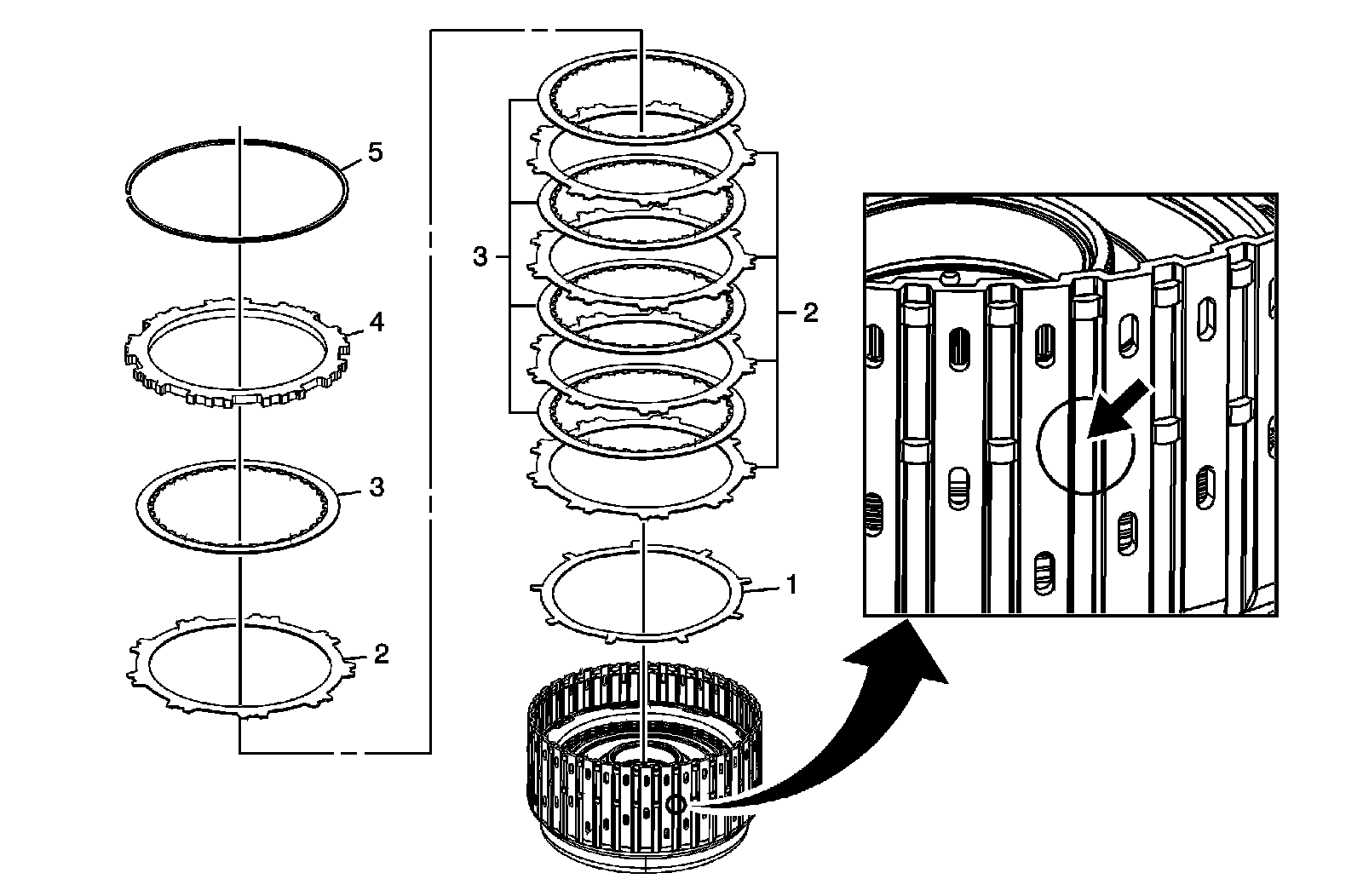

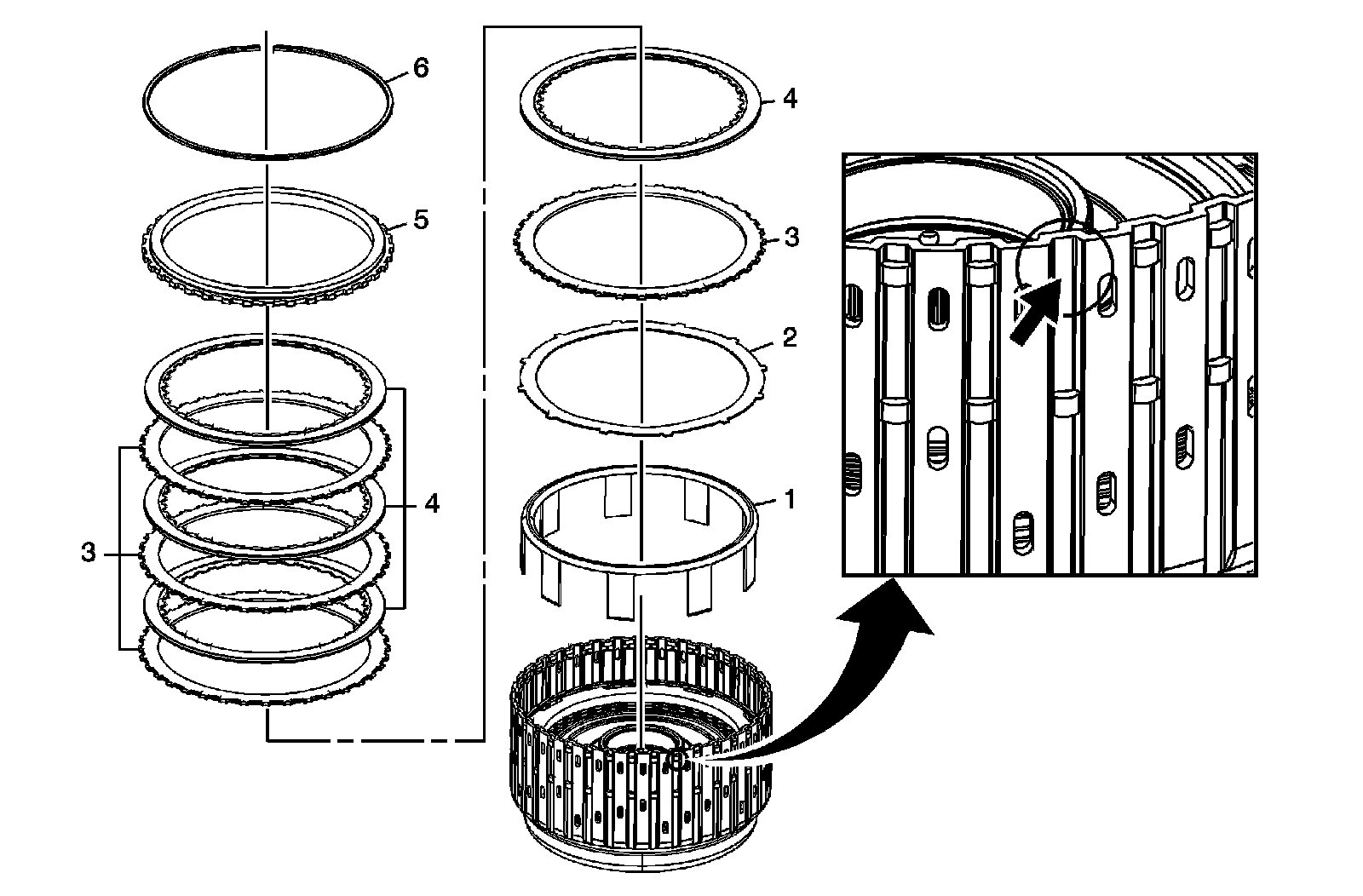

1-2-3-4 Clutch Plate Installation

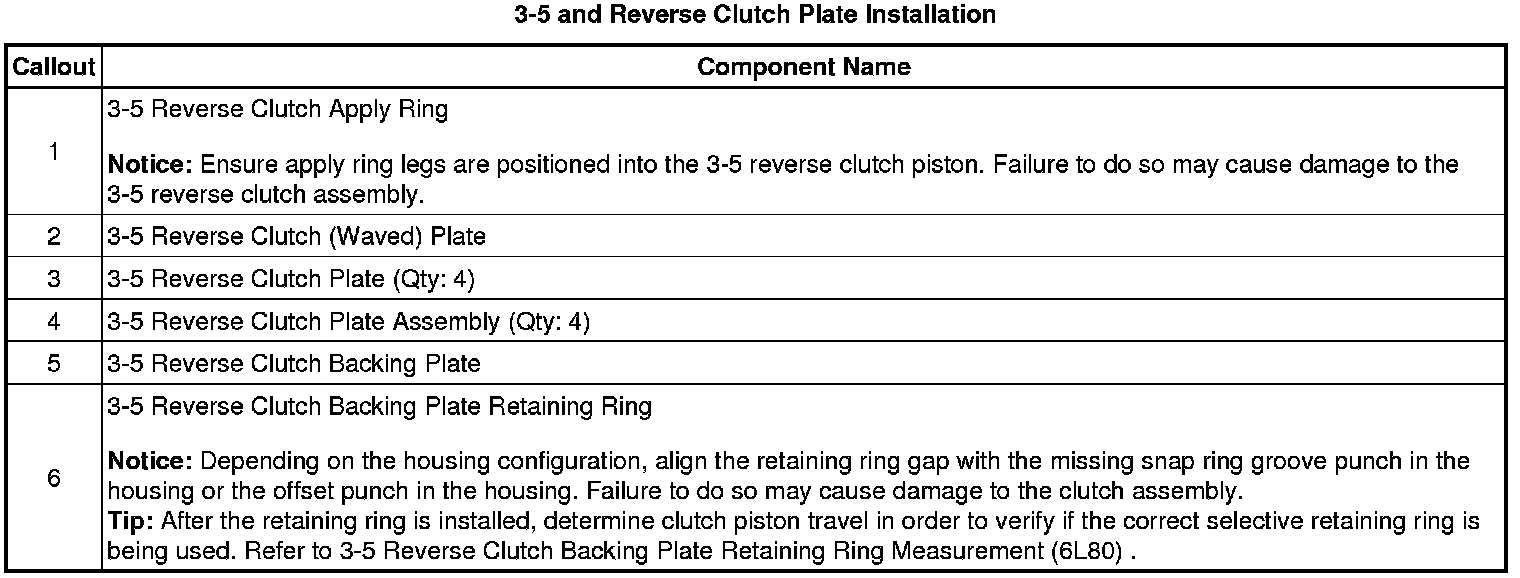

3-5 and Reverse Clutch Plate Installation

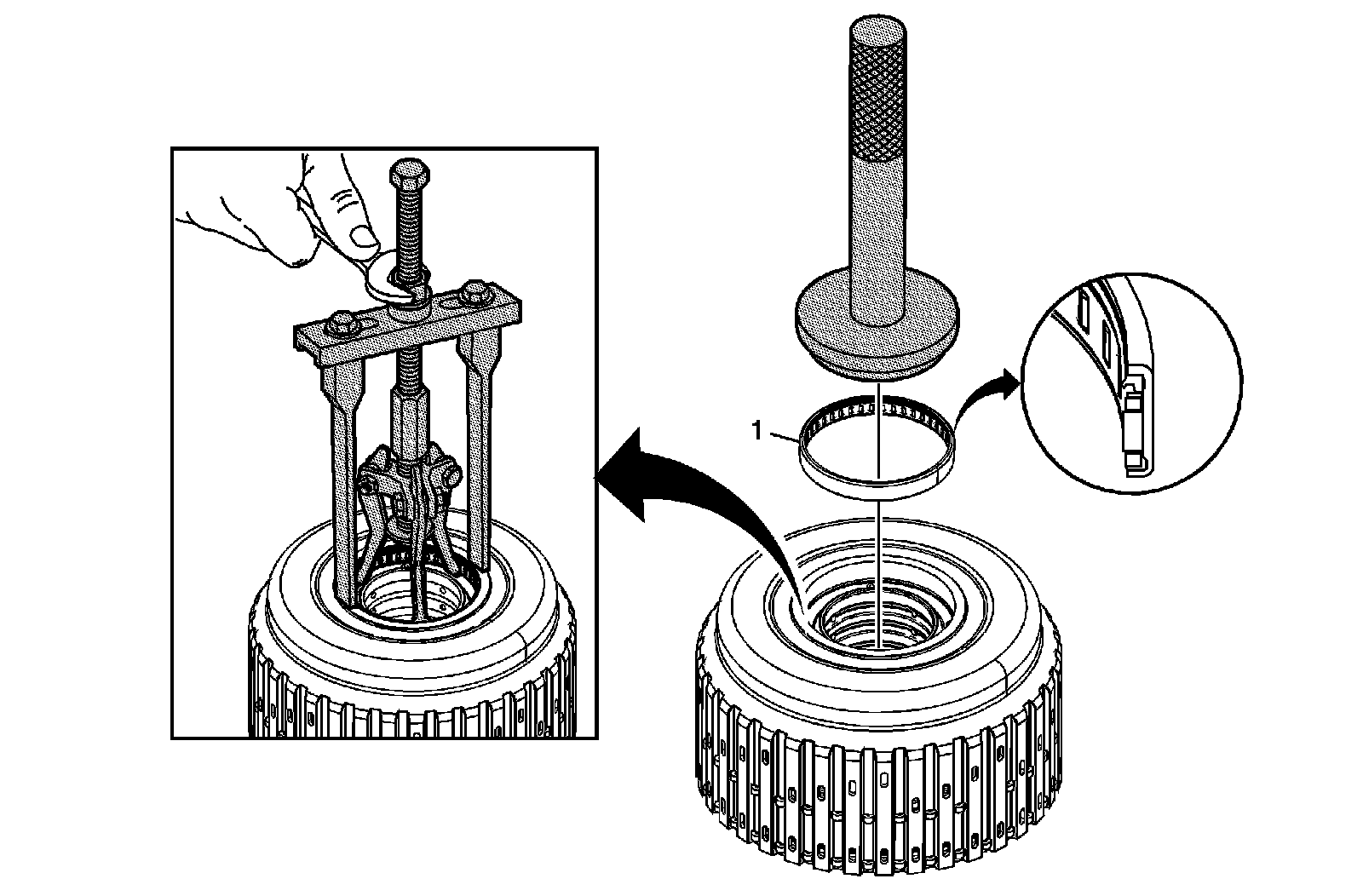

1-2-3-4 and 3-5 Reverse Clutch Bearing Assembly Replacement
