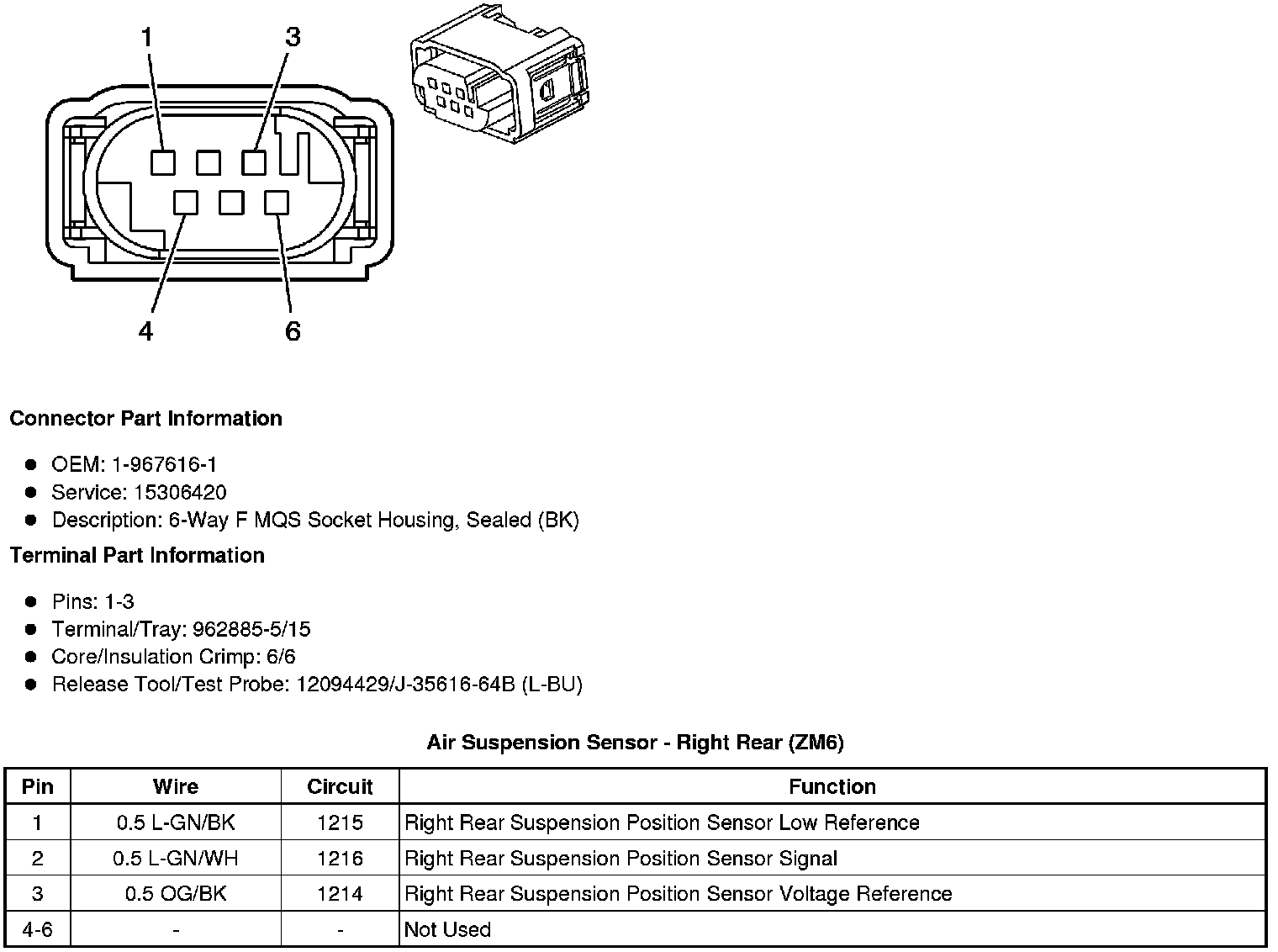

Air Suspension Sensor - Right Rear (ZM6)
Air Suspension Sensor - Right Rear (ZM6)
Component Connector End Views
Air Suspension Sensor - Right Rear (ZM6)
