Suspension Main Relay: Diagrams

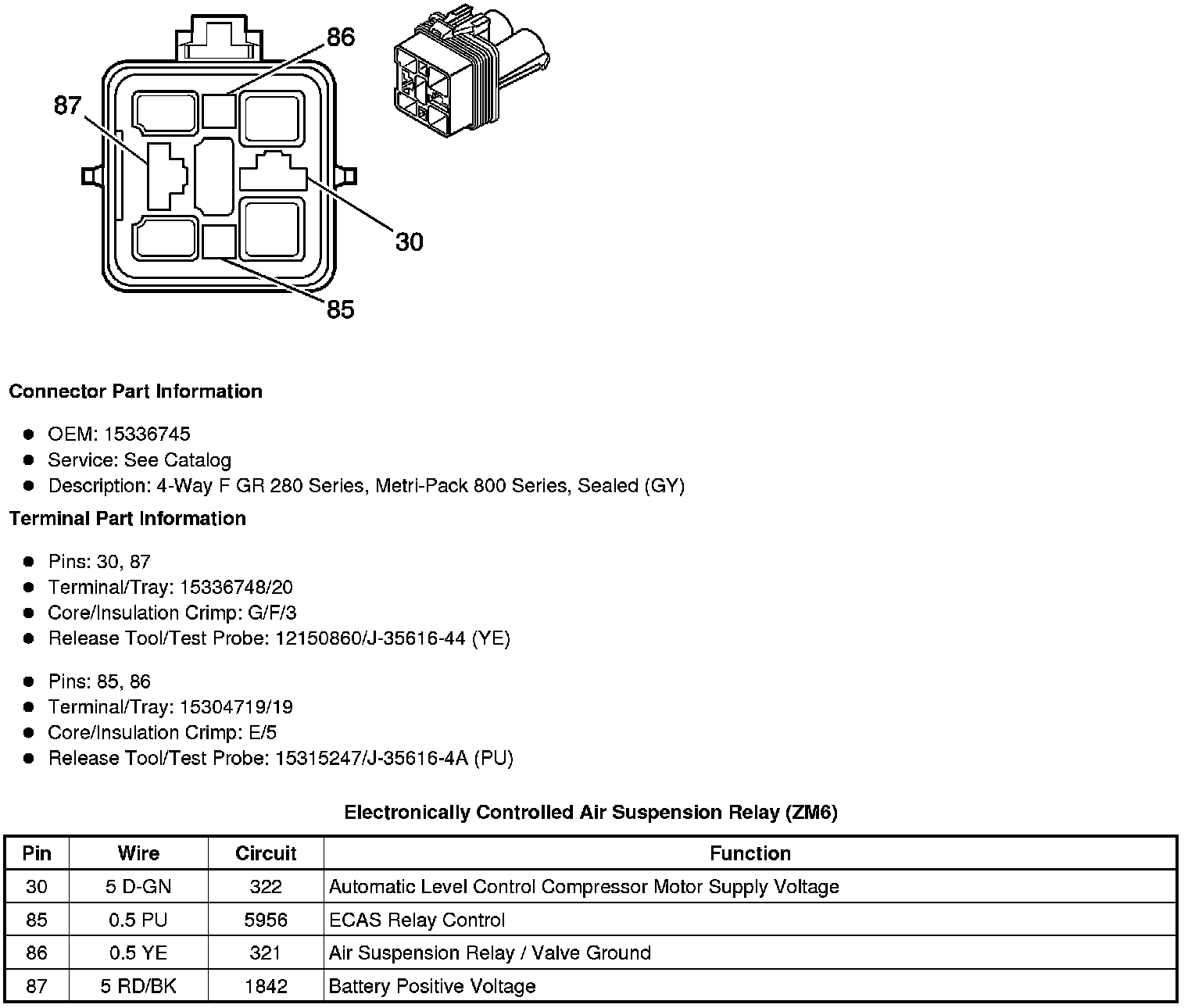

Component Connector End Views

Electronically Controlled Air Suspension Relay (ZM6)
