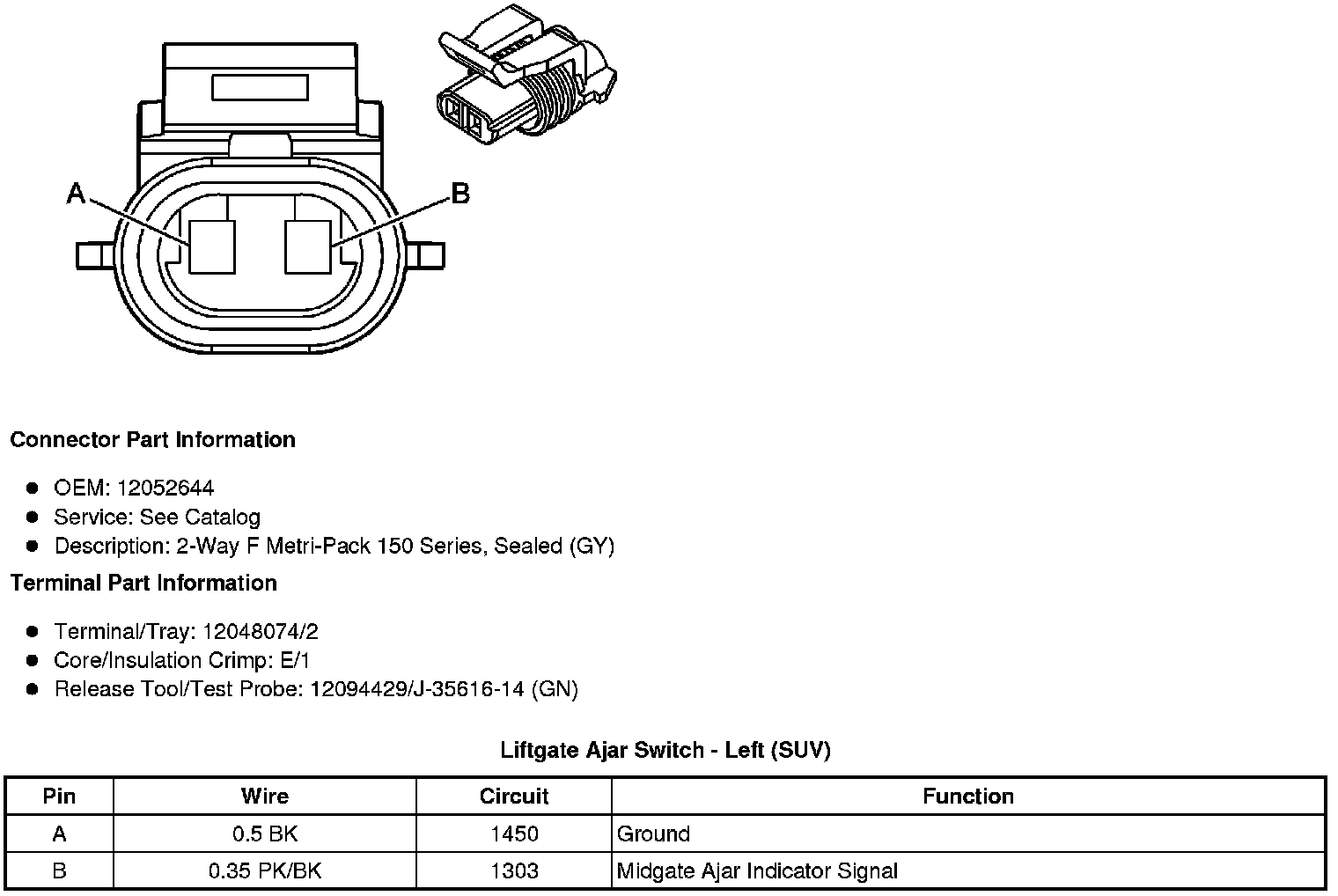

Home >> Hummer >> 2008 >> H2 V8-6.2L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Trunk / Liftgate Ajar Switch >> Diagrams >> Liftgate Ajar Switch - Left (SUV)
