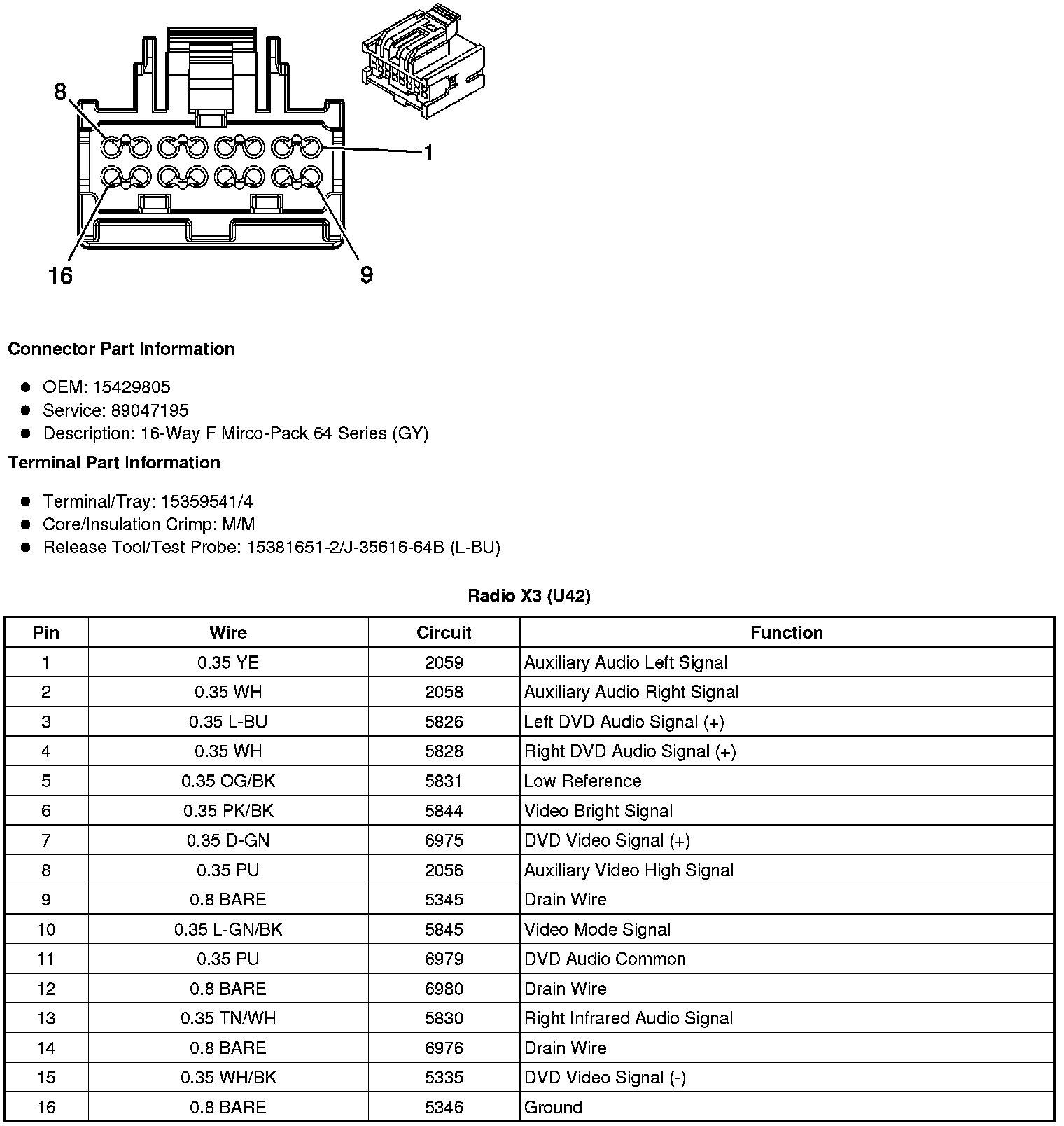

Home >> Hummer >> 2008 >> H2 V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> System Diagram >> Radio X3 (U42)
