Master Cylinder Replacement

Master Cylinder Replacement
Caution: Refer to Brake Fluid Irritant Caution (Brake Fluid Irritant Caution) .


Removal Procedure

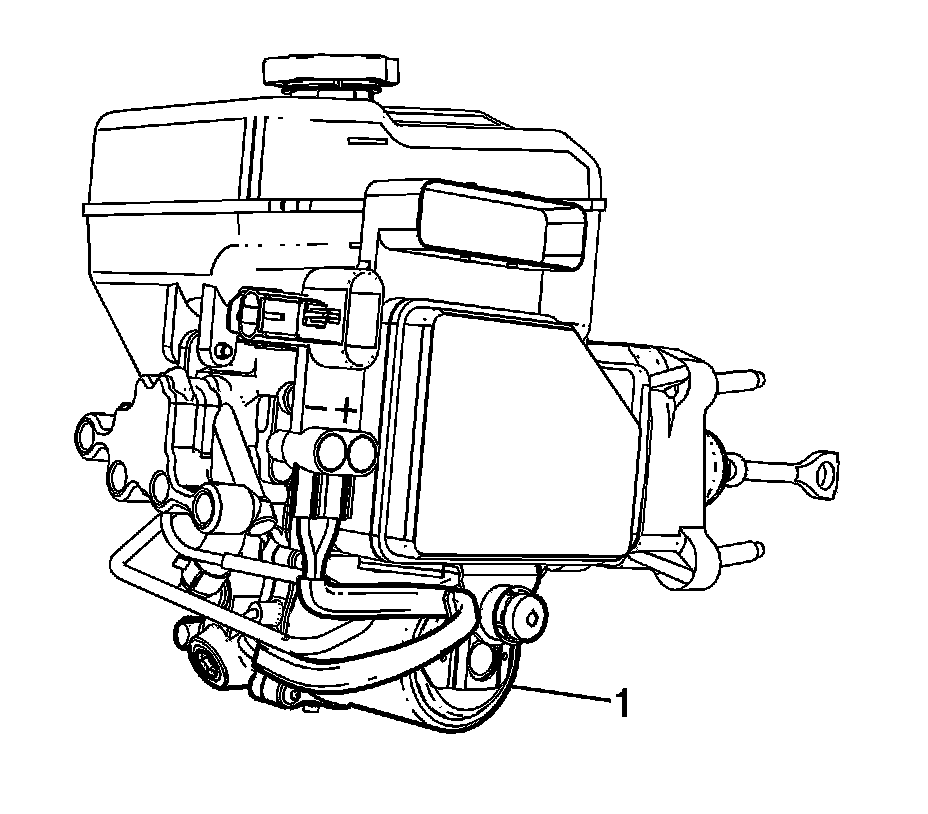

1. Remove the power brake booster (1). Refer to Power Brake Booster Replacement (Power Brake Booster Replacement) .




2. Remove the master cylinder reservoir (1). Refer to Master Cylinder Reservoir Replacement (Master Cylinder Reservoir Replacement) .




3. Remove the brake pressure modulator valve (BPMV) gasket (1) and the BPMV module (2) from the master cylinder. Refer to Brake Pressure Modulator Valve Replacement (Service and Repair) .



Installation Procedure





1. Install the BPMV gasket (1) and the BPMV module (2) to the master cylinder. Refer to Brake Pressure Modulator Valve Replacement (Service and Repair) .




2. Install the master cylinder reservoir (1). Refer to Master Cylinder Reservoir Replacement (Master Cylinder Reservoir Replacement) .




3. Install the power brake booster (1). Refer to Power Brake Booster Replacement (Power Brake Booster Replacement) .
