Transfer Case Control Schematics

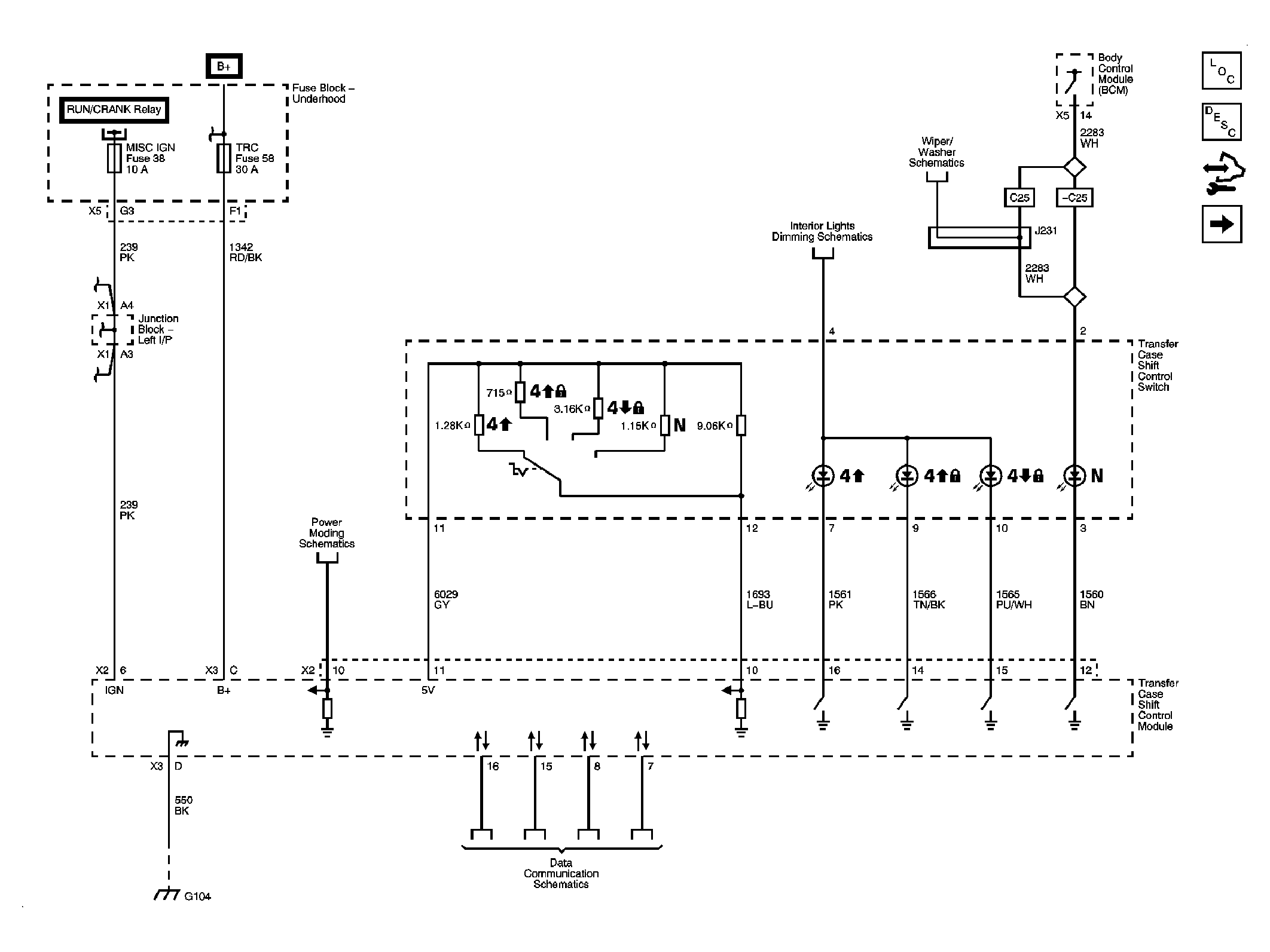

Fig 1: Power Ground and Shift Controls

GM1961123

Courtesy of GENERAL MOTORS CORP.

Fig 2: Transfer Case Controls

GM1961126

Courtesy of GENERAL MOTORS CORP.
