Installation Procedure

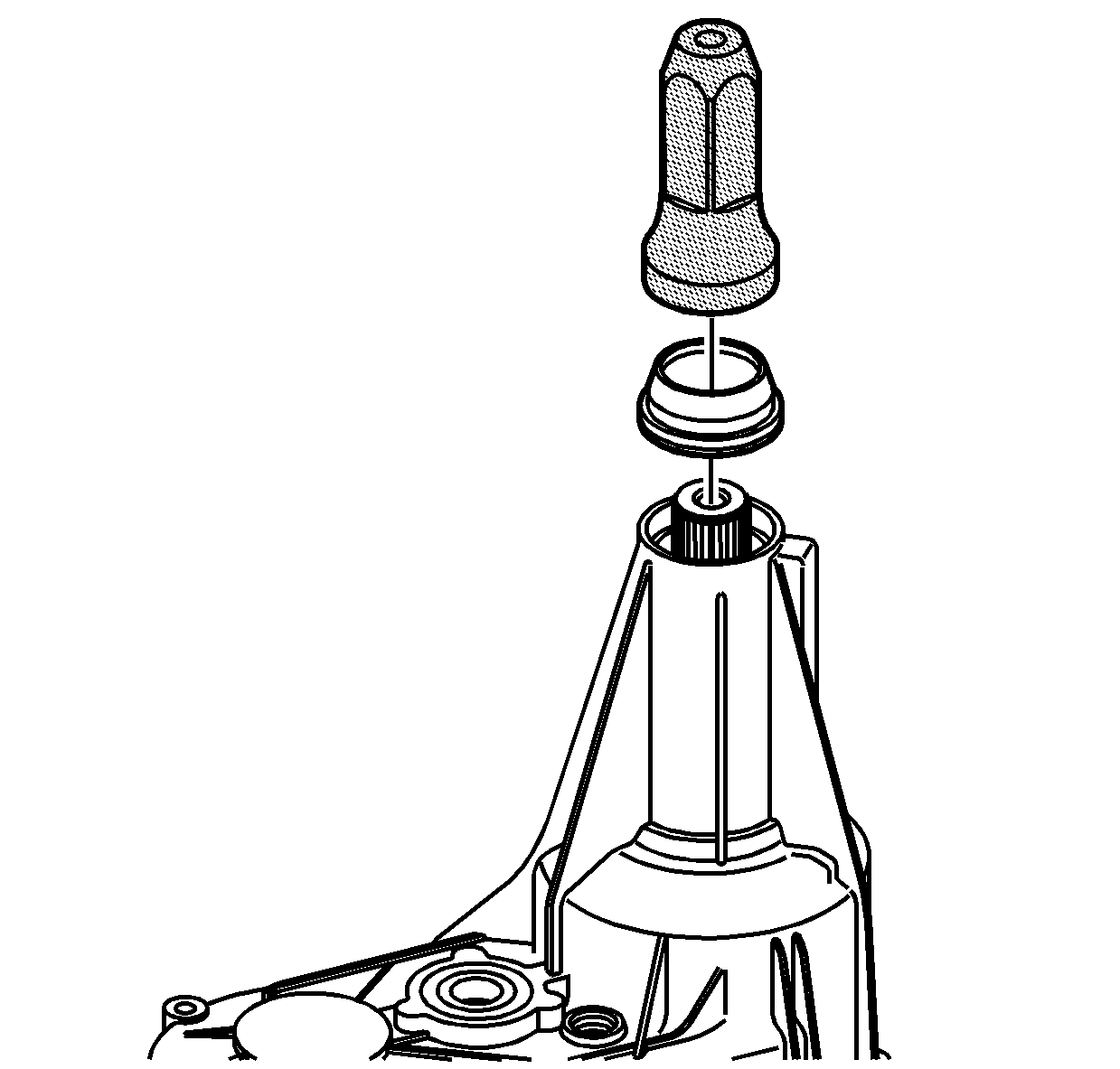

    Fig 1: Installing Rear Output Shaft Seal Using J 45756
    GM833029Courtesy of GENERAL MOTORS CORP.
  1. Using J 45756  , install a NEW front output shaft seal. See Special Tools .
  2. Install the rear propeller shaft. Refer to Rear Propeller Shaft Replacement .
  3. Check the fluid level. Add fluid, if necessary.
  4. Lower the vehicle.
